How Garage Door Safety Sensors Work in Austin, TX

What Are Garage Door Safety Sensors and What Do They Look Like?

How garage door safety sensors work is something most of us never think about — until the door won’t close, or worse, something gets caught underneath it. These small devices do a critical job every single time you press that button.

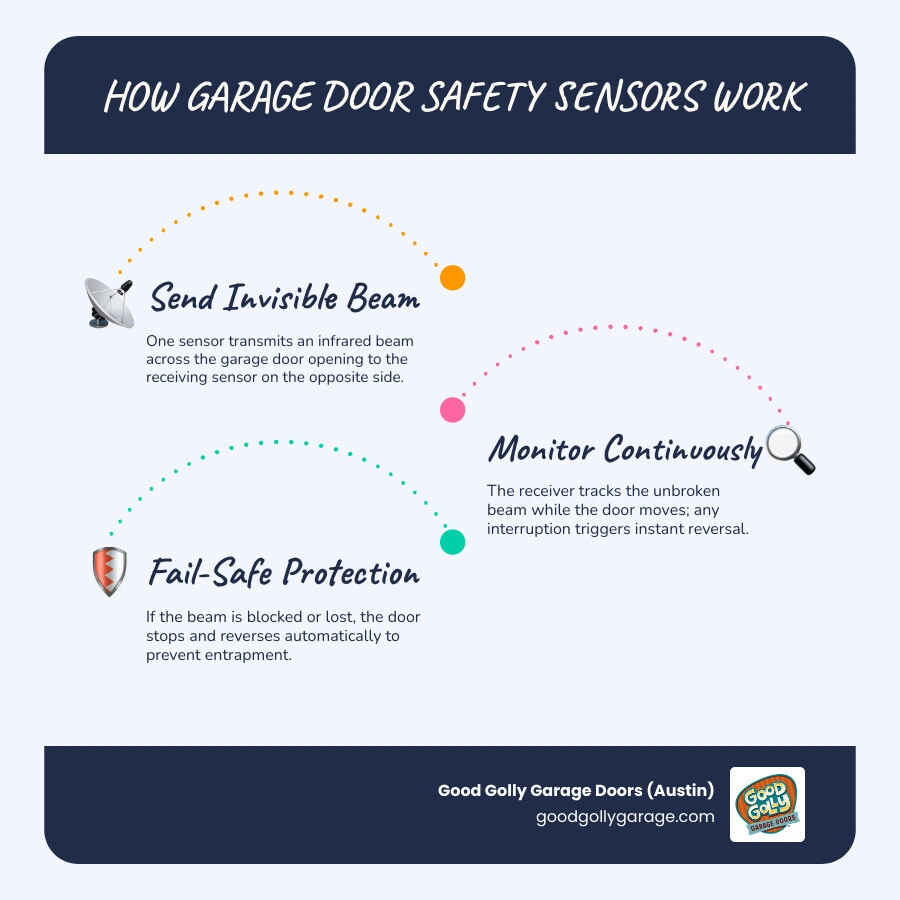

Here’s the short answer:

• One sensor sends an invisible infrared beam across the garage door opening to a second sensor on the opposite side.
• The receiving sensor monitors that beam continuously while the door is in motion.
• If anything breaks the beam — a child, a pet, a bicycle, a box — the opener instantly stops and reverses the door back up.
• If the sensors lose their connection for any reason, the system fails safe and will not allow the door to close at all.
• Both sensors must be aligned and free of obstructions for normal operation.

This system has been federally required on every new electric garage door opener sold in the U.S. since January 1993, and it has slashed entrapment injuries and fatalities by more than 90%. Your garage door can weigh anywhere from 150 to over 400 pounds — that’s not something you want coming down on a person or a pet without a safety net in place.

In Austin, factors like heat, humidity, and seasonal storms can all affect how reliably these sensors perform, which makes it worth understanding exactly what they do and how to keep them working.

I’m Jason Henderson, founder and CEO of Good Golly Garage Doors, and through years of leading service teams across the home services industry — including right here in Austin — I’ve seen how a basic understanding of how garage door safety sensors work can save homeowners from real safety risks and unnecessary repairs. Let’s walk through everything you need to know.

If you look at the bottom of your garage door tracks, you will see two small, typically black boxes mounted on brackets. These are your photoelectric safety sensors, often referred to as “photo eyes.” While they are small, they are the most important safety feature of your modern garage door opener system.

Every set consists of two distinct units:

1. The Sending Unit: This unit usually has a red or amber (yellow) LED light. Its sole job is to emit a steady, invisible infrared beam of light across the opening.
2. The Receiving Unit: This unit typically features a green LED light. It acts as the “eye” that catches the infrared signal.

To comply with UL 325 standards and federal safety regulations, these sensors must be mounted no higher than six inches from the floor. This specific height is designed to detect the lowest point of an obstruction, such as a child’s foot, a small pet, or the bumper of a car. If you notice a Safety Sensor Blocking Garage Door from Closing, it is often because these units have been bumped or the lenses have become obscured.

How Garage Door Safety Sensors Work to Protect Your Family

The core concept of how garage door safety sensors work is often described as an “invisible tripwire.” When you press your remote or wall button to close the door, the motor unit checks for a continuous signal from the receiving sensor.

If a person or object breaks that beam of light while the door is moving downward, the receiving sensor stops getting the “all clear” signal. It immediately communicates this interruption to the garage door opener’s logic board. Within less than a second, the motor stops the downward travel and reverses the door to the fully open position.

This fail-safe design is why your door might refuse to close if the sensors are disconnected or broken. The system assumes that a lack of signal means there is an obstruction, prioritizing safety above all else. If your door won’t move at all, you might want to check our Garage Door Opener Not Responding Complete Guide to see if the sensors are the culprit.

The Science of How Garage Door Safety Sensors Work

On a technical level, these sensors utilize the photoelectric effect. The sending unit converts electricity into a specific wavelength of infrared light. To prevent interference from other light sources—like the bright Texas sun reflecting off a driveway—the signal is often “pulsed.”

The system typically uses a pulsed DC signal (around 6V). The receiving sensor is tuned to look specifically for that frequency. If the receiver detects the absence of these pulses, it modulates the voltage on the line, signaling the logic board to trigger the reversal mechanism. This sophisticated communication ensures that common household lights or flashlights won’t accidentally “trick” the sensor into thinking the path is clear when it isn’t.

Why Understanding How Garage Door Safety Sensors Work Prevents Accidents

Before 1993, garage doors relied primarily on mechanical resistance to reverse. The door had to actually hit something before it would stop. Given that a residential door can exert hundreds of pounds of force, this was a recipe for disaster.

By understanding how garage door safety sensors work, you can appreciate the 90% decrease in entrapment injuries since their mandate. These sensors provide:

• Pet Safety: Small animals that might not trigger a mechanical reversal are easily detected by the infrared beam.
• Property Protection: It prevents the door from crushing expensive items like bicycles, lawnmowers, or car hoods.
• Peace of Mind: You don’t have to worry about a “ghost” closure while your children are playing near the driveway.

Different Types of Garage Door Sensors and Their Functions

While the standard “photo eye” is the most common, there are several types of sensing technologies used in Austin garages today.

Sensor Type	Function	Best Use Case
Photoelectric Eyes	Uses an infrared beam between a sender and receiver.	Standard residential safety (Required by law).
Safety Edge Sensors	A pressure-sensitive strip on the bottom of the door.	Commercial doors or as a secondary backup.
Tilt Sensors	Detects the angle of the door to report if it is open or closed.	Smart home monitoring and security alerts.
Retroreflective	A single unit that bounces a beam off a reflector on the opposite side.	Installations where wiring on both sides is difficult.

Mechanical sensors still exist as a secondary backup in the form of “force settings” on the opener motor, but they should never be relied upon as the primary safety device.

Troubleshooting and Testing Your Safety System

Regular maintenance is the best way to ensure your family remains protected. We recommend a monthly “Safety Check” to verify everything is in working order.

1. The Cardboard Box Test: Place an empty cardboard box (at least 6 inches high) in the path of the door. Attempt to close the door using the remote. The door should immediately reverse upon “seeing” the box.
2. Check the LED Lights: Both sensors should have solid, non-flickering lights. A blinking light usually indicates a misalignment or an obstruction.
3. Clean the Lenses: Dust, spider webs, and dirt are the enemies of infrared light. Wipe the lenses with a soft, dry microfiber cloth.

If your remote isn’t triggering the door at all, it’s a good idea to read What to Do When Your Garage Door Remote Stops Working Before You Panic, as the sensors might be preventing the remote’s command from executing.

Common Reasons for Sensor Malfunction

In our experience serving Austin, Round Rock, and Pflugerville, we’ve found that several local factors can interfere with how garage door safety sensors work:

• Sunlight Interference: On bright Texas afternoons, direct sunlight can “blind” the receiving sensor. This is common if your garage faces east or west.
• Austin Humidity & Moisture: High humidity can cause condensation to form on the lenses, blocking the beam.
• Pests: Spiders love the corners of garage doors. A single web or a stray insect crawling across the lens can trigger a reversal.
• Vibration: If your door is Garage Door Shaking or Vibrating During Operation, it can eventually rattle the mounting brackets out of alignment.

When to Call a Professional for Sensor Issues in Austin

While cleaning and basic alignment are easy DIY tasks, some issues require a professional touch to ensure the system remains legally compliant and safe.

You should contact us if you notice:

• Frayed or Damaged Wires: Rodents in Central Texas are notorious for chewing through the thin low-voltage wires connecting your sensors to the motor.
• Intermittent Electrical Faults: If the door reverses randomly without any visible obstruction or sunlight issues, there may be a short in the wiring or a failing logic board.
• Damaged Housing: If a lawnmower or car has physically cracked the sensor housing, the delicate internal components are likely compromised.
• Persistent Blinking: If you’ve tried aligning the sensors and the lights continue to blink, the sensors may have suffered an internal failure.

Ignoring these signs can lead to more than just an inconvenient door. Strange sounds or erratic behavior are often early warnings; learn more in our guide on 7 Garage Door Noises You Shouldn’t Ignore and What They Mean.

Frequently Asked Questions About Garage Door Sensors

Why is one sensor light green and the other red or yellow?

Most manufacturers use different colors to help you distinguish between the units. Typically, a solid red or yellow light indicates the Sending Unit is getting power. A solid green light indicates the Receiving Unit is successfully seeing the beam. If either light is blinking, the sensors are out of alignment or blocked.

Can I bypass my garage door sensors if they are broken?

For safety and legal reasons, you cannot permanently bypass these sensors. However, in an emergency, most openers allow you to “force” the door closed by pressing and holding the wall-mounted button until the door reaches the floor. This should only be used to secure your home until a repair can be made. Never attempt to “jump” the wires or use reflectors to trick the system.

How high off the ground should my safety sensors be installed?

Safety sensors should be installed no higher than six inches from the garage floor. If they are mounted too high, they might miss small objects, pets, or children lying on the ground, which defeats the purpose of the safety system.

Conclusion

Understanding how garage door safety sensors work is about more than just home maintenance—it’s about protecting what matters most. At Good Golly Garage Doors, we’ve built our reputation on providing the Austin community with fast, transparent, and reliable service. Whether you’re in Cedar Park, Lakeway, or Georgetown, we understand the local climate challenges that can keep your garage door from performing its best.

Don’t leave your family’s safety to chance. If your sensors are acting up or if it’s just been a while since your last check-up, we are here to help with professional inspections and same-day repairs.
