How Garage Door Safety Sensors Work in Las Vegas, NV

How Garage Door Safety Sensors Work — And Why Every Las Vegas Homeowner Should Know

Understanding how garage door safety sensors work could one day prevent a serious injury in your home. Here is the short answer:

How Garage Door Safety Sensors Work (Quick Answer)

1. One sensor sends — The sending sensor (amber LED) mounted on one side of the door projects a continuous invisible infrared beam across the opening.
2. One sensor receives — The receiving sensor (green LED) on the opposite side continuously monitors that beam.
3. The beam acts as a tripwire — If anything — a child, pet, toy, or stray object — breaks that beam while the door is closing, the sensor instantly signals the opener to stop and reverse.
4. Fail-safe by design — The system requires a confirmed, uninterrupted signal to close. No clear signal means no close.
5. A backup force sensor adds a second layer — Even if the beam is missed, the opener’s pressure-detection system reverses the door if it meets unexpected physical resistance.

Sensors are mounted just 4 to 6 inches above the ground on both sides of the garage door frame, keeping them low enough to detect children and pets. This setup has been federally required under the UL 325 standard since January 1, 1993 — and since that mandate took effect, entrapment injuries and fatalities have dropped by more than 90%.

Your garage door is one of the heaviest moving objects in your home, often weighing anywhere from 130 to over 350 pounds. A system that stops and reverses that kind of mass in milliseconds is not a minor convenience — it is a critical safety feature. Yet most homeowners never give those two small sensor boxes a second thought until something goes wrong.

I’m Jason Henderson, founder and CEO of Good Golly Garage Doors, and my background in service-based operations has given me a front-row seat to just how often sensor issues — misalignment, dust buildup, wiring faults — are the root cause of unsafe or unreliable garage doors. Understanding how garage door safety sensors work is the first step toward keeping your system operating safely. In the sections below, we’ll walk through everything you need to know.

What Garage Door Safety Sensors Are And Why They Matter

Garage door safety sensors, often called photo eyes, are small devices mounted near the bottom of the garage door opening. Their job is simple but incredibly important: detect anything in the path of a closing door and tell the opener to stop and reverse.

They matter because garage doors are heavy, fast-moving machines. If that sounds dramatic, good. It should. A garage door is not just a big wall on hinges. It is a powered system with enough force to injure people, harm pets, and damage vehicles or belongings if safety features fail.

Since the 1993 UL 325 requirement, these sensors have helped cut entrapment injuries and fatalities by more than 90%. That is one of the clearest examples of a small safety device making a huge real-world difference.

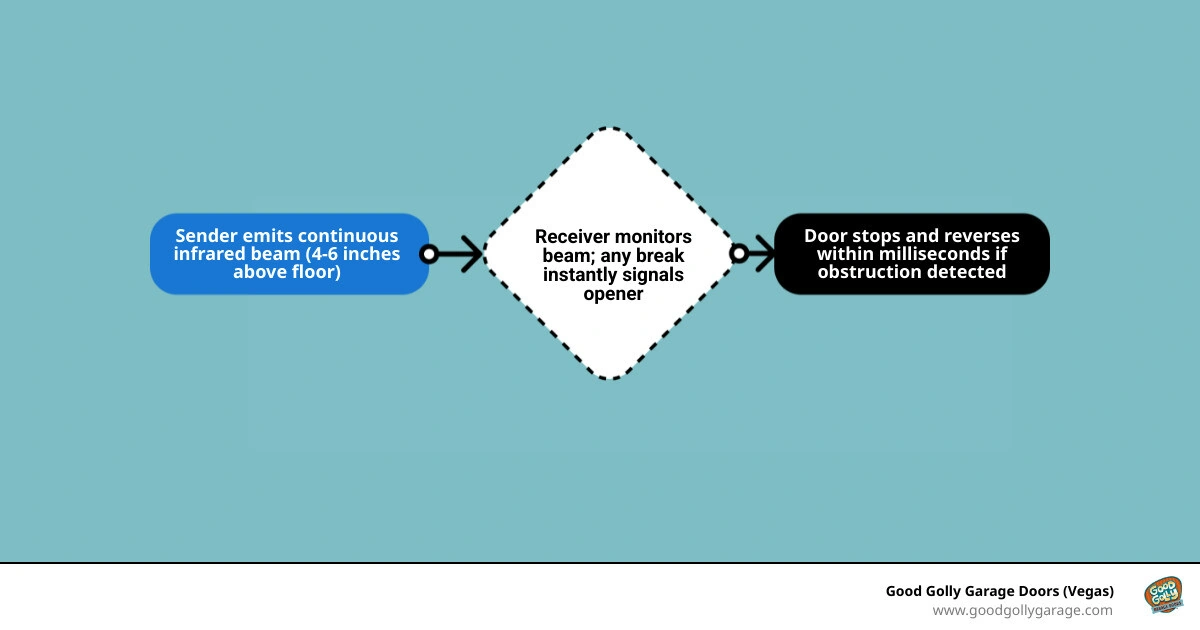

How Garage Door Safety Sensors Work In A Modern Opener

A modern system uses two photoelectric sensors:

• One sender projects an invisible infrared beam
• One receiver watches for that beam continuously
• The opener only allows the door to close when that beam remains uninterrupted

If the beam is broken during the closing cycle, the opener reacts immediately. It stops downward travel and reverses the door. This is a fail-safe design, meaning the system assumes uncertainty is dangerous. If it cannot confirm a clear opening, it will not complete the close.

Why Safety Sensors Became Required By Law

Before sensors became standard, automatic garage doors caused multiple serious injuries and child fatalities each year. In response, the safety requirements under UL 325 were strengthened, and as of January 1, 1993, residential automatic garage door openers had to include an external entrapment protection device such as photo eyes.

In plain English: if your opener is newer than that, it should have working safety sensors. And if those sensors are not working properly, the system is not operating as intended.

Where Sensors Are Mounted And Why Height Matters

Sensors are normally installed on the inside of the garage opening, attached to the vertical track area or nearby brackets, about 4 to 6 inches above the floor. Some guidance allows roughly 2 to 6 inches, but the key idea is the same: they need to be low enough to catch a child, pet, toy, bike tire, or other low obstacle.

That height matters because a beam mounted too high could miss exactly the things it is supposed to protect.

How Garage Door Safety Sensors Work Step By Step

Here is the basic sequence:

1. You press the wall button, remote, or app to close the door.
2. The opener checks for a stable signal from the receiving sensor.
3. If the infrared beam is present, the opener allows the motor to run downward.
4. If the beam is interrupted, the opener sends a reversal command.
5. The door stops and moves back up.

This all happens through low-voltage wiring and opener logic in fractions of a second. The response is so fast that most people only notice the door “changing its mind.”

How Garage Door Safety Sensors Work When The Beam Is Clear

When nothing blocks the beam, the receiver sees a continuous all-clear signal. The opener interprets that as safe to close.

In most systems, the indicator lights help you confirm this status:

• The sending sensor often shows a solid amber or yellow light
• The receiving sensor often shows a solid green light when aligned and receiving the beam

Exact colors can vary by brand, but the general rule is simple: solid and steady usually means happy sensors.

How Garage Door Safety Sensors Work When Something Breaks The Beam

If a child walks through, a pet trots across, or a forgotten basketball rolls into the opening while the door is closing, the beam is interrupted. The receiver no longer sees the signal, and the opener treats that as a hazard.

Common results include:

• The door stops and reverses
• The opener light blinks
• The door refuses to finish closing
• The remote appears to “work,” but the door pops back open

This is not the opener being stubborn. It is the opener doing its job.

The Backup Safety System: Force And Pressure Detection

Photo eyes are only one layer of protection. Modern openers also use force-sensing or pressure-detection logic.

If the door physically contacts something unexpected, the opener should detect that resistance and reverse. Some systems also use a pressure-sensitive safety edge at the bottom of the door as a contact backup.

This second layer matters because not every hazard breaks the beam perfectly. A tall object might be above the beam. A shifting item might move after the door starts down. The force system helps protect against those situations.

Types Of Garage Door Sensors And What Each One Does

Not every “garage door sensor” does the same job. Some prevent entrapment. Others monitor door position, air quality, or open-door status.

Sensor Type	What It Does	How It Works	Typical Use
Photoelectric Sensors	Detect obstructions	Infrared beam between sender and receiver	Standard safety reversal
Pressure Sensors / Safety Edge	Detect physical contact	Senses resistance or compression at door edge	Backup entrapment protection
Carbon Dioxide Sensors	Trigger ventilation response	Detect elevated gas levels in enclosed spaces	Air quality or attached garage safety setups
Monitoring Sensors	Report door status	Tilt, position, or smart app monitoring	Alerts, auto-close, remote status checks

Photoelectric And Retroreflective Sensors

The most common residential setup is the paired photoelectric sensor system. One side sends; the other receives. Think of it as an invisible tripwire.

Some older or specialty systems use a retroreflective design, where one unit sends the beam toward a reflector on the opposite side and reads the returned signal. Both approaches rely on a clear line of sight, which is why alignment is such a big deal.

Even an inch or two of movement can cause problems. That is not the sensor being picky. Infrared beams are narrow.

Pressure And Safety Edge Sensors

Pressure sensors come into play when the door meets physical resistance. The opener senses extra force and reverses. In some systems, a dedicated safety edge along the bottom of the door compresses when it touches an object and signals the opener to stop.

These are backup protections, not replacements for photo eyes.

Carbon Dioxide And Monitoring Sensors In Smarter Systems

Some modern systems go beyond obstacle detection. Monitoring sensors can track whether the door is open or closed, send smartphone alerts, or automatically close the door after a set period. Tilt sensors are common in these setups, and the broader garage door tilt sensor market was valued at about USD 0.45 billion in 2024.

Air-quality-related sensors can also be integrated in certain systems. Research often references carbon dioxide sensors, though homeowners more commonly think about carbon monoxide concerns in attached garages. The main point is that smarter systems can tie garage ventilation and door operation into broader home safety logic.

For a deeper look at connected features, see How Smart Garage Door Technology Works.

Signs Your Sensors Are Misaligned, Dirty, Or Failing

Most sensor problems are not mysterious electronic meltdowns. They are usually simple issues like dirt, movement, glare, or damaged wires.

The Most Common Symptoms Homeowners Notice

Watch for these signs:

• The door starts down and immediately reverses
• The door will not close with the remote
• The door only closes when you hold the wall button down
• One or both sensor LEDs are blinking, dim, or off
• The opener light flashes after a failed close attempt
• The door works sometimes, but not consistently

That last one is especially frustrating because intermittent issues often point to loose wiring, weak alignment, or sunlight interference.

What Causes Sensor Problems Most Often

The most common causes include:

• Dust or dirt on the lenses
• Loose brackets
• Sensors bumped by trash cans, bikes, or tools
• Wiring damage or loose low-voltage connections
• Moisture inside the housing
• Direct desert sunlight hitting the receiver
• Certain LED bulbs causing interference
• Heat-related expansion, vibration, or long-term wear

In Las Vegas, dust and bright sun are frequent troublemakers. A fine dust film can weaken the beam, and intense afternoon glare can overwhelm the receiver at certain angles. That is one reason sensor issues may seem “random” when they are really tied to time of day and garage orientation.

Problems That Are Not Usually Sensor Related

Not every reversal is caused by the photo eyes. If the door travels all the way down, touches the floor, and then reverses, the issue is often something else, such as:

• Incorrect close-limit settings
• Travel limit problems
• Excessive or insufficient force settings
• An unbalanced door
• Worn rollers or track resistance
• Opener logic or mechanical issues

If your door behaves this way, our guide on Safety Sensor Blocking Garage Door from Closing can help you understand the difference.

How To Test Garage Door Safety Sensors And Know When To Call A Professional

Testing sensors regularly is one of the easiest ways to keep your system safe. We recommend checking them monthly, the same way you would keep an eye on smoke detector batteries.

How To Properly Test Garage Door Safety Sensors

Start with a basic visual inspection:

• Make sure both sensors are mounted firmly
• Check that the lenses are clean
• Confirm both indicator lights look normal
• Clear away leaves, storage items, or debris near the opening

Then do an obstruction test:

1. Open the garage door fully.
2. Place a cardboard box or similar object in the beam path near the floor.
3. Press the button to close the door.
4. The door should refuse to close or should reverse immediately when the beam is blocked.

You can also test the contact reversal system separately with a 2×4 laid flat on the floor under the center of the door. When the closing door touches it, it should reverse. If it does not, stop using the opener until it is professionally inspected.

Monthly sensor checks should include:

• Looking at LED status lights
• Cleaning both lenses with a soft cloth
• Checking the area for obstructions
• Watching one full close cycle
• Testing beam interruption with a box
• Testing contact reversal with a 2×4

How Long Sensors Typically Last And What Shortens Their Lifespan

Garage door safety sensors often last about as long as the opener itself, usually around 10 to 15 years. Some last longer, but lifespan depends on conditions.

Things that shorten sensor life include:

• Constant dust exposure
• Las Vegas heat
• Moisture intrusion
• Physical impacts
• Corroded or brittle wiring
• Power surges
• Repeated vibration loosening brackets and connections

The sensor itself may last, but the bracket, wire, or lens condition may not.

When Replacement Makes Sense Versus Professional Service

Replacement is often the right move when you have:

• Cracked or broken sensor housings
• Repeated faults after cleaning and alignment
• Damaged or frayed wires
• Moisture-damaged internals
• An aging opener with incompatible or obsolete parts
• Unsafe or erratic operation

Professional service is the smarter choice when the problem could involve opener settings, wiring diagnosis, internal electronics, or repeated alignment failure. Cleaning and basic visual inspection are homeowner-friendly. Rewiring, splicing, or guessing with safety systems is not.

If you want a full system check, learn more about Garage Door Maintenance In Las Vegas or Garage Door Openers In Las Vegas.

Frequently Asked Questions About How Garage Door Safety Sensors Work

Garage door sensors seem simple, but they raise a lot of practical questions.

For a broader look at built-in protections, visit Garage Door Safety Features Every Homeowner Should Know.

Can A Garage Door Close Without Working Safety Sensors?

Sometimes, yes, but that does not mean it should.

On many openers, holding the wall control button continuously will force the door to close even if the photo eyes are not satisfied. That is a temporary override feature, not a solution. It bypasses the normal safety logic and should not be treated as a fix.

We never recommend bypassing or disabling sensors. It is unsafe, can put people and pets at risk, and may leave your opener out of compliance.

Do Sunlight, Dust, And Desert Heat Affect Garage Door Sensors In Las Vegas?

Absolutely.

In Las Vegas, we commonly see:

• Sun glare hitting the receiver at certain times of day
• Dust coating the lenses
• Brackets shifting slightly from vibration and heat cycles
• Wiring aging faster in harsh garage conditions

That is why seasonal checks matter here. A quick cleaning and inspection can prevent a lot of “my garage door has a mind of its own” moments.

Are Smart Garage Door Sensors Different From Standard Safety Sensors?

Yes. Standard safety sensors are the required photo eyes that prevent the door from closing on something. Smart sensors usually monitor door position or send alerts.

For example:

• Safety sensors stop or reverse the door during closing
• Tilt or position sensors tell you whether the door is open or closed
• Smart apps can send notifications or trigger auto-close reminders

They work together, but they are not the same thing. A smart alert that tells you the door is open is useful. A safety sensor that stops the door from closing on your dog is essential.

Conclusion

Garage door safety sensors are small, but their job is huge. They create an invisible line of protection, tell the opener when the opening is not safe, and work alongside force-detection systems to reduce the risk of injury and damage. That is the real answer to How Garage Door Safety Sensors Work: they help your garage door behave like a safety-conscious machine instead of a giant moving hazard.

For homeowners in Las Vegas, Henderson, Summerlin, North Las Vegas, Paradise, Green Valley, Anthem, and Sun City, regular inspection matters even more because dust, glare, and heat can all affect performance over time.

If your garage door will not close, your sensor lights are blinking, or you just want peace of mind that your opener is operating safely, we are here to help. Learn more about our Las Vegas services or schedule service with Good Golly Garage Doors.
