How to Fix Garage Door Sensor Alignment Issues in 5 Simple Steps

When Your Garage Door Won't Close — What Your Sensors Are Telling You

If you're looking for garage door safety sensor troubleshooting tips, here's a quick answer before we dive deeper:

Quick Fix Checklist:

1. Check for obstructions — remove anything blocking the beam path between the two sensors
2. Clean the lenses — wipe both sensor eyes with a soft, dry microfiber cloth
3. Check the LED lights — the amber sensor should glow solid; the green sensor should also glow solid (blinking = problem)
4. Realign the sensors — loosen the wing nut on the receiving sensor, adjust until the green LED stops blinking, then retighten
5. Inspect the wiring — look for frayed, loose, or rodent-damaged wires at the sensor terminals
6. Block direct sunlight — if the door only fails in the afternoon, tape a small cardboard visor above the receiving sensor
7. Reset the opener — unplug it for 30 seconds, then plug it back in

You press the remote. The garage door starts to lower. Then — without warning — it reverses right back up. If this sounds familiar, your safety sensors are almost certainly the cause.

Garage door photo-eye sensors are small devices mounted just a few inches above the floor on either side of your door opening. They project an invisible infrared beam across the gap. If anything interrupts that beam — a leaf, a misaligned bracket, a dirty lens, or even a shaft of afternoon sunlight — your opener reads it as an obstruction and refuses to close the door. That's the system working exactly as intended.

Since January 1, 1993, federal law has required these sensors on every automatic residential garage door opener sold in the United States, under the UL 325 safety standard. They exist for a very good reason: a garage door can weigh up to 400 pounds, and without a working sensor system, that weight can come down on a child, a pet, or anyone else in its path.

The good news? The vast majority of sensor problems come down to a handful of common, fixable causes — misalignment being the most frequent by far. Most homeowners in Austin can resolve the issue themselves in under an hour without replacing any hardware.

I'm Jason Henderson, founder and CEO of Good Golly Garage Doors, and my team has worked through every sensor scenario you can imagine — from dusty Austin lenses to heat-warped brackets and storm-damaged wiring. These garage door safety sensor troubleshooting tips are drawn directly from what our technicians see on the job every day. Let's walk through exactly how to diagnose and fix the most common issues, step by step.

Garage door safety sensor troubleshooting tips terms explained:

• garage door safety features every homeowner should know
• how garage door safety sensors work

Understanding How Photo-Eye Sensors Work

To successfully troubleshoot your garage door, it helps to understand the relationship between the two small sensors at the base of your door tracks. This is a two-part photoelectric safety system consisting of a sending sensor (the transmitter) and a receiving sensor (the detector).

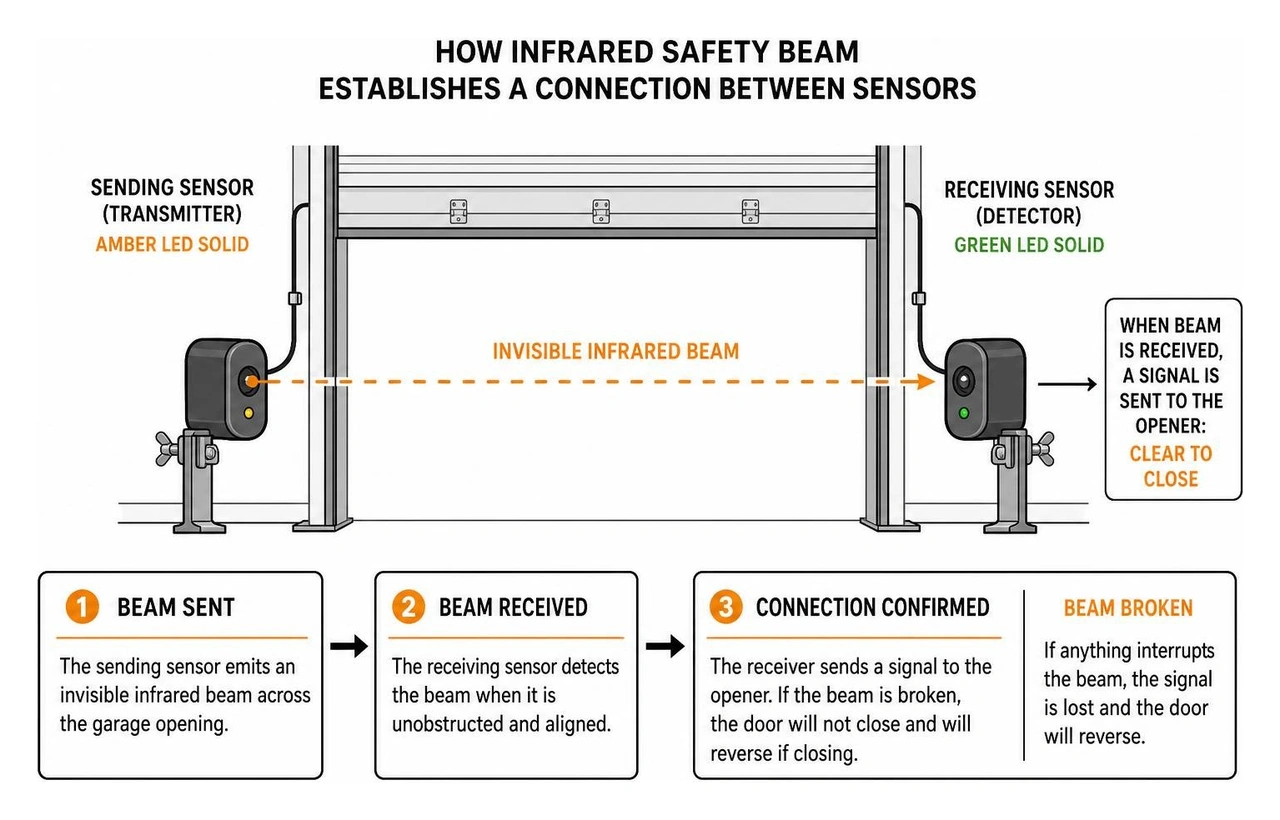

The sending sensor emits an invisible infrared light beam across the threshold of your garage. The receiving sensor sits directly opposite, waiting to capture that exact beam. When the receiver detects the uninterrupted beam, it sends a low-voltage electrical signal to the garage door opener, giving it the "all clear" to close. If that signal is broken for even a millisecond, the opener's logic board halts the downward travel and reverses the door to the fully open position.

Because they work as a pair, they must be perfectly aligned and electronically healthy. In places like Cedar Park and Georgetown, the extreme summer heat can actually cause the thin metal tracks and brackets to expand and warp over time, subtly shifting the photo-eyes out of their direct line of sight.

When reviewing your system, keep in mind that the two sensors have distinct roles and visual indicators. Here is a quick comparison to help you identify which is which:

Understanding this basic relationship is the foundation of keeping your family safe. For a deeper look at your home's complete safety system, check out our garage door safety guide homeowners 2026.

Essential Garage Door Safety Sensor Troubleshooting Tips

Before you grab your toolbox or assume you need a costly replacement, let's run through the most common culprits. Most sensor issues are caused by everyday wear and tear, environmental factors, or simple physical disruptions.

If your garage door is acting up, we always recommend starting with a quick visual inspection. Check the area around the tracks for stray garden tools, bicycles, trash cans, or boxes that might be leaning into the beam's path. Even a single hanging spiderweb or a stray leaf blown in by a Texas thunderstorm can scatter the infrared light enough to trigger a reversal. If you've cleared the path and still have issues, it's time to utilize these professional diagnostic strategies. If you find yourself needing hands-on help, our team is always ready to assist with garage door sensor repair austin tx.

Interpreting LED Light Codes and Garage Door Safety Sensor Troubleshooting Tips

The LED indicator lights on the sides of your photo-eyes are your best diagnostic tool. Instead of guessing what's wrong, you can read these lights like a dashboard.

On the most common opener brands — such as LiftMaster, Chamberlain, and Craftsman — the sending sensor features an amber (orange/red) light, while the receiving sensor features a green light.

• Solid Amber and Solid Green: Your sensors are powered, aligned, and functioning perfectly. If your door still won't close, the issue lies elsewhere, such as with the opener's force settings or travel limits.
• Solid Amber and Blinking Green: The receiving sensor has power but cannot see the sending sensor's beam. This points directly to misalignment, dirty lenses, or an physical obstruction.
• Blinking Amber or No Lights At All: If either light is completely dark or flickering erratically, there is a power supply issue, a loose wire, or a short circuit in the low-voltage lines.

If you are dealing with other brands like Genie, you might see a red light on one side and a green on the other, but the rule of thumb remains the same: any blinking or dark LED indicates a fault. For more perspective on why keeping these little lights shining brightly is so critical to your home's overall security, read our guide on garage door repair safety sensor repairs why they matter in las vegas nv.

How to Clean Sensor Lenses Safely

Garages are naturally dusty environments. In Central Texas, seasonal high pollen counts, windblown dirt, and car exhaust can coat the plastic sensor lenses in a fine, grimy film. Additionally, humid mornings in Pflugerville and Round Rock can cause moisture condensation to build up on the lenses, which refracts the infrared light and tricks the system into detecting an obstruction.

To clean your lenses without scratching the delicate plastic:

1. Grab a clean, dry, lint-free microfiber cloth. Avoid paper towels, as their wood-pulp fibers can leave micro-scratches that permanently degrade the lens clarity.
2. Gently wipe away any loose dust, cobwebs, or debris from the sensor housing.
3. If the lens has stubborn grime or dried mud, dampen the microfiber cloth slightly with water or a drop of rubbing alcohol. Never use harsh chemical solvents or glass cleaners, which can cloud the plastic.
4. Wipe the lens in a gentle circular motion, then use a dry section of the cloth to buff away any remaining moisture.

Keeping this quick task on your radar is an excellent habit to build. You can find more easy, proactive steps to protect your entire system in our guide to preventive garage door maintenance.

Resolving Sunlight Interference and Glare

Can the sun really stop your garage door from closing? Absolutely. This is a highly common issue in sunny areas like Lakeway and Bee Cave, particularly during the spring and autumn months when the sun sits lower in the sky.

If your garage door faces east or west, direct sunlight can hit the receiving sensor's photodiode at just the right angle to overwhelm it. The intense ambient infrared radiation from the sun "blinds" the receiver, making it unable to distinguish the sending sensor's beam. If your door closes perfectly in the morning and late at night, but refuses to close between 3:00 PM and 5:00 PM, you are dealing with sunlight interference.

To fix this issue:

• Build a Cardboard Sun Shield: Cut a small piece of cardboard (about 2 inches by 3 inches) and fold it into a small hood or visor. Tape this temporary shield over the top and sides of the receiving sensor to block the overhead sun glare while keeping the front path clear.
• Use a PVC Tube: Slide a short, 3-inch section of 1-inch diameter PVC pipe over the receiving sensor's snout. This acts like a camera lens hood, shielding the eye from angled sunlight while allowing the direct opposite beam to enter.
• Swap Sensor Positions: Because only the receiving sensor (green light) can be blinded by glare, you can swap the physical locations of the sending and receiving units. Move the receiver to the shaded side of the garage door track where the sun doesn't shine directly into its lens.

For more tips on diagnosing doors that reverse unexpectedly, take a look at our garage door not opening closing guide.

Advanced Wiring Diagnostics and Garage Door Safety Sensor Troubleshooting Tips

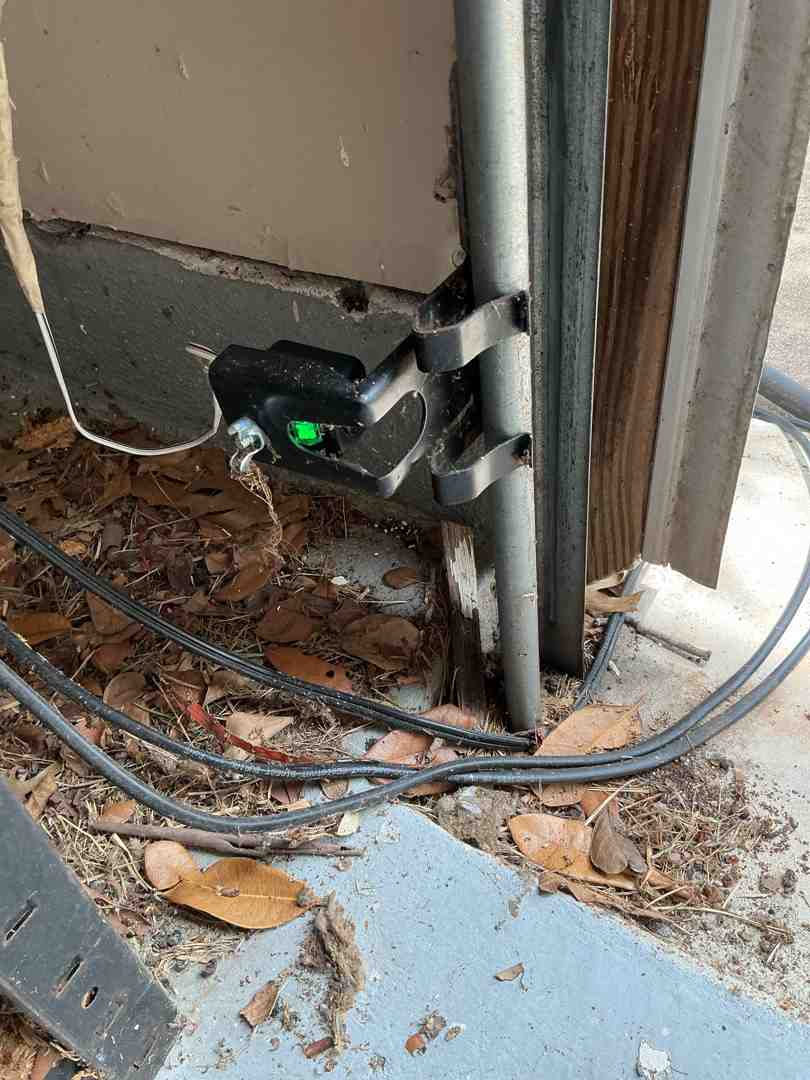

If your sensor lights are completely dark or flickering when you touch the wires, you likely have a wiring fault. Garage safety sensors run on safe, low-voltage (12V to 24V DC) wires that run from the sensors, up the walls, and back to the opener motor.

Over time, these thin wires can be damaged by vibrating tracks, pinched by mounting staples, or chewed through by pests like mice or squirrels hiding out in your garage.

To diagnose wiring problems:

1. Inspect the Terminals: Go down to floor level and examine the back of each sensor. Ensure the white and white/black striped wires are securely pushed into their screw terminals. Give them a gentle tug to check for looseness.
2. Trace the Wire Run: Follow the low-voltage wires along the wall up to the opener. Look for any visible breaks, bare copper, or areas where insulated staples have pinched the wire too tightly.
3. Perform a Continuity Test: If you have a digital multimeter, set it to continuity mode (the setting that beeps when the probes touch). Touch one probe to the wire end at the sensor and the other to the corresponding wire at the motor unit. A continuous beep means the wire is intact; no beep (or an "OL" reading) indicates a broken wire inside the wall.
4. Try the 12-Inch Direct-to-Motor Test: This is the ultimate way to isolate whether your sensors are broken or your house wiring is bad. Cut the sensor wires about 12 inches away from the sensors. Take both sensors up to the ceiling motor unit. Strip the wire ends and wire them directly to the white and grey terminals on the back of the opener. Point the sensors directly at each other. If the LED lights glow steady, your sensors are perfectly healthy, and the problem is a broken wire hidden inside your garage walls.

If you discover a wiring short circuit or a faulty logic board during these advanced checks, it is usually best to seek professional assistance. You can learn more about our motor-side solutions on our garage door opener repair service page.

How to Align Garage Door Safety Sensors in 5 Steps

Because sensor misalignment is the single most common reason for garage door closing failures, learning how to quickly realign them can save you a lot of time and frustration.

When aligning your sensors, you want to make sure they are mounted at the exact same height (typically between 4 to 6 inches off the floor) and pointing directly at each other across the opening. If you live in an area with high vibration — like near busy roads in Leander or Liberty Hill — the wing nuts holding your sensor brackets can slowly loosen over time. If you find your tracks are bent or require structural adjustments, you can read about our local solutions on our garage door adjustment austin page.

Follow these 5 simple steps to get your sensors back in perfect alignment:

1. Loosen the Mounting Hardware: Locate the wing nut or hex screw on the bracket holding your receiving sensor (the one with the green LED). Loosen it just enough so you can pivot and slide the sensor head, but not so much that it flops down loosely.
2. Perform a Visual Line-of-Sight Check: Get down to floor level and look directly across the threshold from one sensor to the other. Ensure there are no subtle blockages, such as the bottom weatherstripping of your garage door dragging or a stray leaf stuck in the track.
3. Slowly Rotate and Adjust: While watching the green LED on the receiving sensor, slowly rotate the sensor head up and down, and side to side. You can also use a string stretched tightly between the two brackets or a simple pocket laser level to help project a straight line.
4. Watch for the Solid Light: Keep adjusting the sensor until the blinking green LED stops flickering and turns into a solid, steady glow. This solid light is your visual confirmation that the infrared path has been successfully established.
5. Secure the Bracket: Once the light is solid, carefully tighten the wing nut or mounting screw back down. Be gentle so you don't accidentally knock the sensor out of alignment as you tighten it. Once secure, test the system by waving a broom through the path while the door is closing to ensure the auto-reverse kicks in immediately.

Frequently Asked Questions About Garage Door Sensors

At Good Golly Garage Doors, we receive a wide variety of questions from homeowners across Cedar Park, Pflugerville, and West Lake about their safety systems. Here are the clear, straightforward answers to the most common questions we hear.

If your opener's overhead lights are flashing and the door refuses to budge, your system is trying to tell you exactly what's wrong through diagnostic flash codes. If you've tried the basic steps and the system still refuses to work, you can find guidance on when to call a professional for garage door problems.

Is it safe to bypass garage door sensors temporarily?

In a true emergency, you can temporarily override your safety sensors by pressing and holding the wall-mounted button inside your garage continuously until the door is completely closed. This manual override forces the motor to ignore the photo-eye signal.

However, this is strictly a temporary measure and should never be used as a daily workaround. Bypassing your safety sensors disables the auto-reverse protection, creating a severe entrapment hazard for children, pets, and vehicles. Doing so also violates federal UL 325 safety standards and can expose you to significant legal and insurance liabilities if an accident occurs. If your system is failing consistently, read our guide on garage door repairs that are too dangerous for diy to understand the boundaries of safe home maintenance.

Why does my garage door opener light flash 10 times?

If you attempt to close your garage door and it immediately reverses while the overhead opener lights flash exactly 10 times, this is the universal diagnostic code for a safety sensor fault.

The 10-flash code indicates that the opener's logic board attempted to close the door but detected an open circuit, a physical obstruction, or a severe misalignment in the photo-eye system. To resolve this, run through our quick-fix checklist: clear any physical blockages, clean the lenses, check for a blinking green LED, and realign the brackets until both lights glow steadily. For more troubleshooting steps on doors that reverse right before touching the ground, visit our guide on my garage door wont close all the way.

Are garage door safety sensors universal across brands?

No, garage door safety sensors are generally not universal. While they all perform the same basic safety function, many major brands use proprietary communication protocols, voltages, and mounting brackets.

For example, a Chamberlain or LiftMaster sensor pair uses specific electronic logic that is incompatible with a Genie Safe-T-Beam system. While you can occasionally find "universal" aftermarket sensors online, we always recommend replacing old sensors with Original Equipment Manufacturer (OEM) compatible units to ensure reliable operation, proper voltage matching, and full warranty coverage. If you are debating whether to patch up an aging system or invest in a modern upgrade, check out our garage door repair vs replacement guide.

Conclusion

Your garage door safety sensors may be small, but they carry a massive responsibility. Keeping them clean, aligned, and properly wired ensures your home remains a safe place for your family, pets, and vehicles. Most of the time, a quick wipe with a microfiber cloth or a minor adjustment of a loosened wing nut is all it takes to get your door moving smoothly again.

However, if you've run through these garage door safety sensor troubleshooting tips and are still facing a blinking green light, a completely dark sensor, or damaged wiring inside your walls, you don't have to tackle it alone.
