A Practical Guide to Test Your Garage Door Safety Features

Why Testing Your Garage Door Safety Features Could Save a Life

Knowing how to test your garage door safety features is one of the most important — and most overlooked — parts of home maintenance. Your garage door is likely the largest moving object in your home, weighing anywhere from 130 to 350 pounds. If its safety features fail, that weight doesn't discriminate. According to the U.S. Consumer Product Safety Commission, tens of thousands of people are injured by garage doors every year — and many of those injuries are preventable.

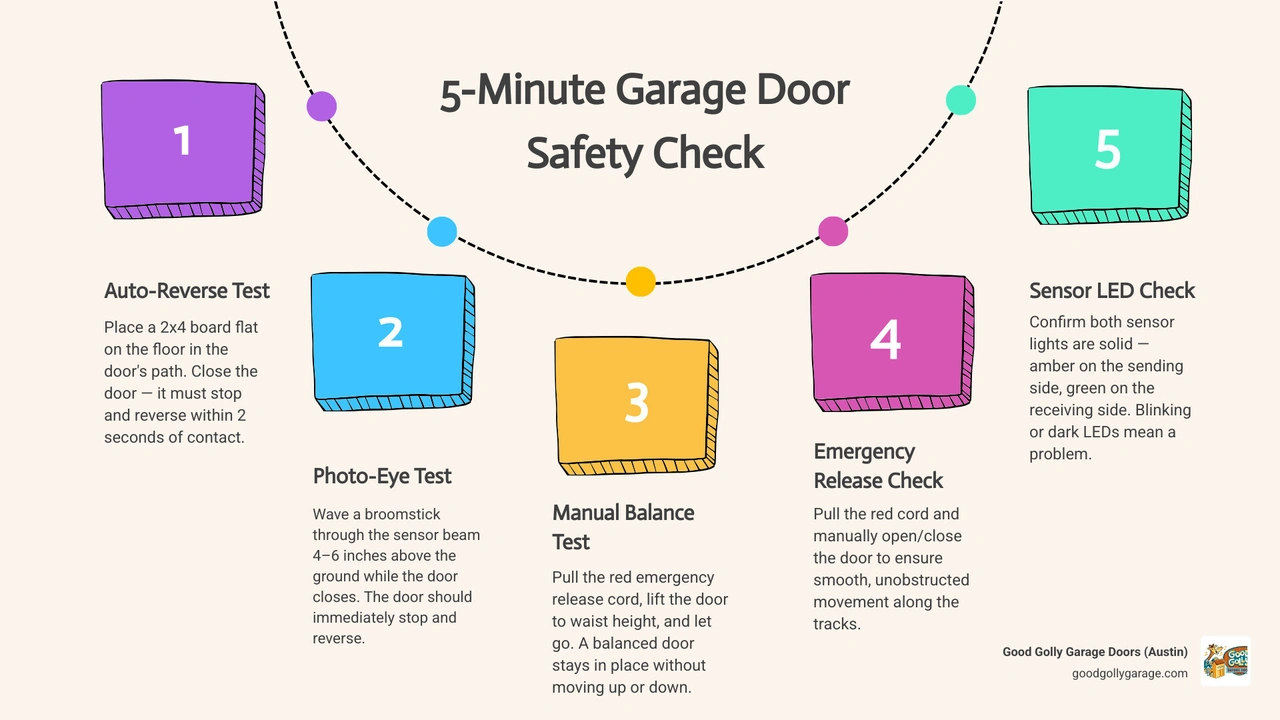

Here is a quick overview of how to test your garage door safety features:

1. Auto-Reverse Test — Place a 2x4 board flat on the ground in the door's path and close the door. It should stop and reverse within two seconds of contact.
2. Photo-Eye Sensor Test — While the door is closing, wave a broomstick through the sensor beam (4–6 inches off the ground). The door should immediately stop and reverse.
3. Manual Balance Test — Pull the red emergency release cord, lift the door to waist height, and let go. A balanced door stays in place.
4. Emergency Release Inspection — Pull the red cord and manually open and close the door to check for smooth, unobstructed movement.
5. Sensor LED Check — Confirm that both sensor lights are solid (amber on the sending side, green on the receiving side). Blinking or dark LEDs signal a problem.

The Door & Access Systems Manufacturers Association (DASMA) recommends running through these checks every single month — and it takes less than 10 minutes.

I'm Jason Henderson, founder and CEO of Good Golly Garage Doors, and through years of leading a team of trained technicians serving Austin, TX homeowners, I've seen what happens when these safety checks get skipped — and how quickly a simple monthly test can prevent a serious incident. In this guide, I'll walk you through exactly how to test your garage door safety features, step by step, so you can keep your family safe with confidence.

How to test your garage door safety features terms to remember:

• garage door safety features every homeowner should know
• how garage door safety sensors work

How to Test Your Garage Door Safety Features: Step-by-Step

When we talk about maintaining a home in Central Texas—whether you are dealing with the extreme summer heat in Round Rock or sudden spring storms in Pflugerville—we often focus on our air conditioners or roof shingles. However, your garage door operates under massive mechanical tension and gets used multiple times a day. Integrating a quick inspection of these components into your routine is essential.

Before we dive into the specific testing steps, we must establish a few fundamental safety precautions. First, never stand directly under the garage door while it is in motion. Always use an extension tool, such as a broomstick, to test sensors rather than your body. Second, if any of the tests we outline below fail, you should immediately stop using your automatic opener. Disconnect the system and operate the door manually until a professional can perform repairs. For a deeper look at physical safety around these heavy systems, take a look at our Garage Door Repair Safety Guide 2026.

What Are the Federally Required Safety Features?

Every modern automatic garage door opener relies on safety features mandated by federal law. Under 16 CFR 1211, which took effect on January 1, 1993, all residential garage door openers manufactured or installed in the United States must include a primary inherent reversal system (the mechanical auto-reverse) and a secondary non-contact safety device (typically photoelectric eye sensors).

These two features work in tandem to prevent entrapment:

• The Auto-Reverse Mechanism: This is a force-sensing system built into the opener's motor. If the door encounters physical resistance while closing, the motor detects the spike in electrical current and reverses the door's travel.
• Photo-Eye Sensors: These are infrared safety eyes mounted on opposite sides of the door track. They project an invisible beam across the opening. If anything breaks this beam while the door is closing, the door immediately stops and reverses.

If your opener was manufactured before 1993, it may lack these essential safety features entirely. These older units are considered significant safety hazards and should be replaced with modern systems. To learn more about these requirements and how they protect your household, check out our Garage Door Safety Testing Guide.

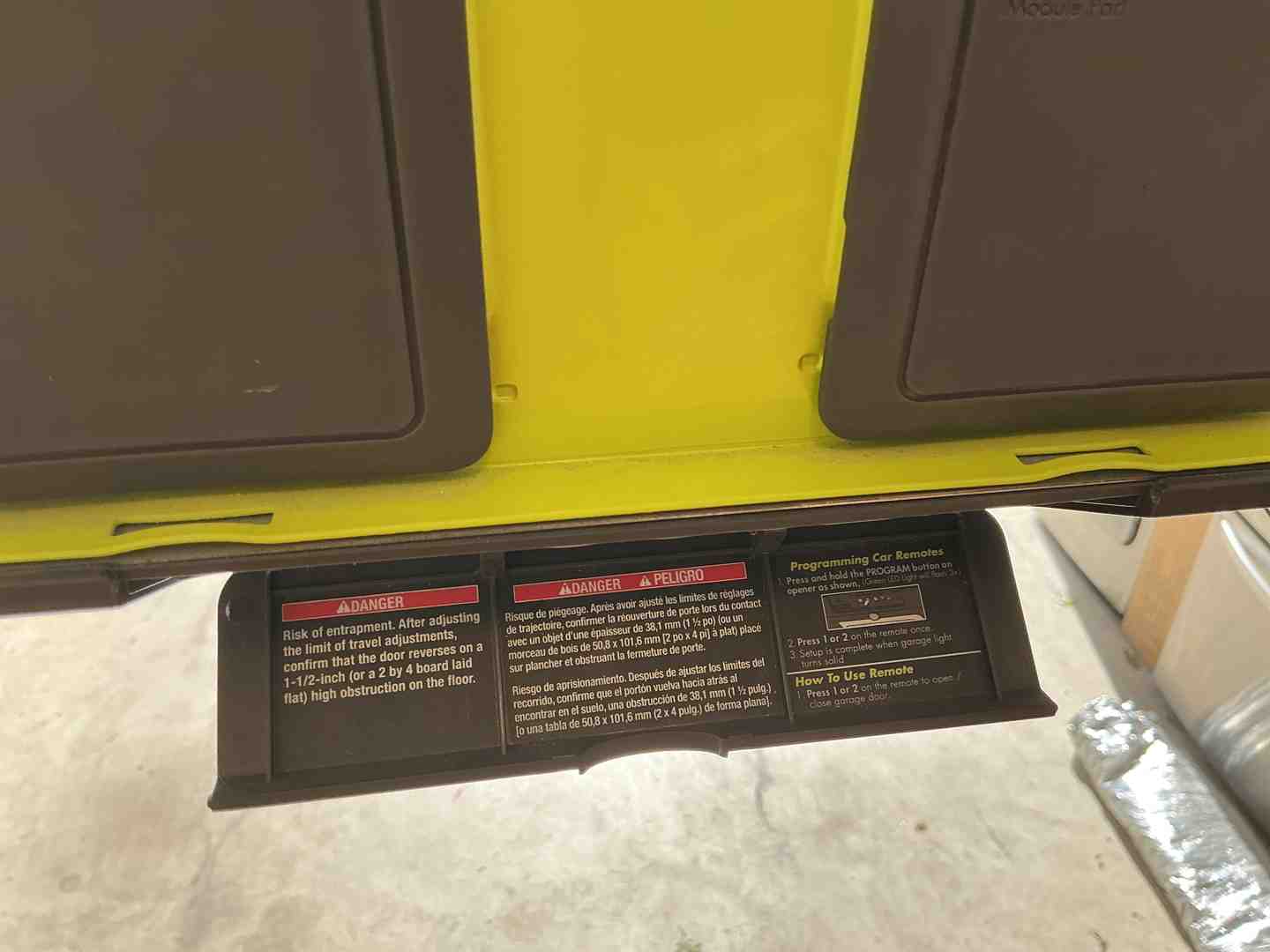

How to Test Your Garage Door Safety Features Using the Auto-Reverse Test

The mechanical auto-reverse system is your primary line of defense if a child, pet, or object is caught beneath a closing door. To test this feature, you will need a solid, flat object. A standard 2x4 wood block laid flat (which is 1.5 inches thick) is the industry standard. Alternatively, you can use a roll of paper towels. A paper towel roll is soft enough to compress slightly, preventing any cosmetic damage to your door panels while still providing enough resistance to trigger the sensor.

Follow these steps to perform the test:

1. Clear the Area: Ensure there are no children, pets, or vehicles near the garage door.
2. Position the Object: Place the 2x4 block or paper towel roll flat on the garage floor, directly in the center of the door's path.
3. Activate the Door: Stand safely back and press your wall button or remote control to close the door.
4. Observe the Reaction: As the bottom edge of the door contacts the object, it must stop and reverse direction within two seconds.

If the door strikes the object, pauses, and continues to push downward, or if it does not reverse within the two-second window, your force settings are out of calibration. This means the door is capable of exerting dangerous levels of downward force—up to 200 pounds—before stopping. If your door fails this test, do not attempt to force the door closed by holding down the wall button, as this bypasses the safety systems entirely.

How to Test Your Garage Door Safety Features Using the Photo-Eye Sensors

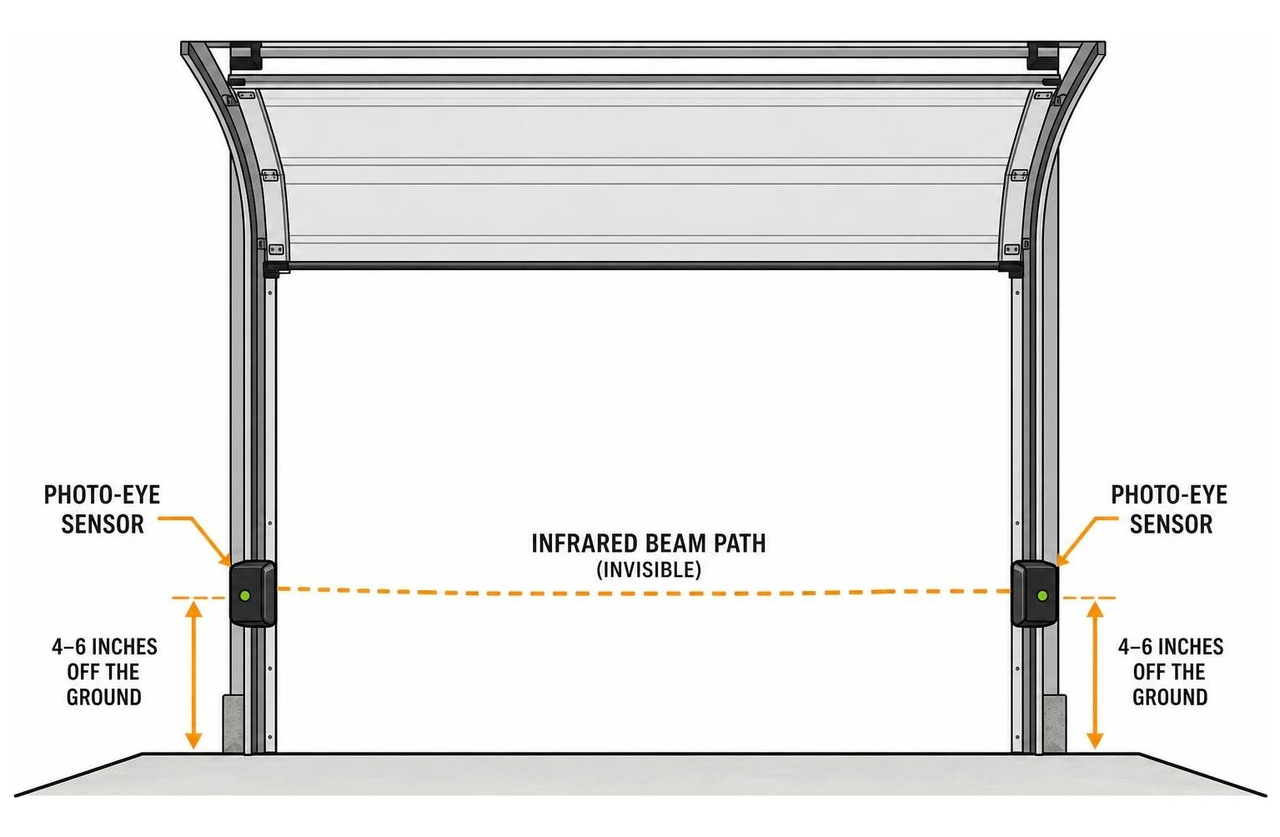

The photo-eye sensors act as an invisible safety net. Testing them ensures that the door will reverse before it ever makes physical contact with an obstacle.

To test the photo-eyes safely, we use the "broomstick test":

1. Locate the Sensors: Identify the two small sensor units mounted on the left and right garage door tracks. By industry standard, these must be mounted between 4 and 6 inches above the garage floor. If they are installed higher, they may fail to detect low-lying obstacles like a pet or a small child.
2. Activate the Door: Press your remote or wall button to begin closing the door.
3. Break the Beam: While the door is in motion, stand safely to the side and wave a long-handled broomstick or a similar object through the path of the invisible infrared beam.
4. Observe the Reaction: The door should instantly stop and reverse to the fully open position. The overhead light on your opener motor will typically flash (often 10 times on major brands like Chamberlain or LiftMaster) to signal that the safety beam was interrupted.

If the door continues to close despite your breaking the beam, your photo-eyes are either misaligned, dirty, or suffering from a hardware or wiring failure. For a comprehensive walkthrough on how these sensors function, read our Garage Door Safety Sensors Complete Guide.

Troubleshooting Safety Sensor Issues and Wiring Failures

It is incredibly frustrating when your garage door refuses to close, leaving your home vulnerable. In many cases, the culprit is not a broken motor, but a simple issue with the safety sensors. Because they are located close to the ground, they are easily bumped by garbage cans, bicycles, or lawnmowers.

Before diving into electrical diagnostics, perform a quick visual inspection. Check for dirt, dust, or spider webs on the lenses. In our dry, dusty Central Texas summers, windblown debris can easily coat the glass, blocking the infrared light. Simply wiping the lenses with a soft, dry cloth can resolve the issue.

Another common local issue is direct sunlight interference. If your garage faces east or west, the intense morning or late afternoon Texas sun can "blind" the receiving sensor's lens, tricking the system into thinking there is an obstruction. If your door only acts up at specific times of the day, installing a small cardboard sunshield around the receiving sensor can block the glare and restore normal operation. If you want a professional to look over your entire system, you can learn more about our Garage Door Inspection services.

How to Align the Safety Sensors

If your safety sensors are misaligned, the indicator lights on the sensors themselves will let you know. Modern sensors operate as a pair:

• The Sending Sensor: Typically features an amber (or yellow) LED that remains solid as long as the unit has power.
• The Receiving Sensor: Features a green LED that glows solid only when it is perfectly aligned with the sending beam.

If the green LED on your receiving sensor is off, flickering, or blinking, the sensors are out of alignment. To realign them:

1. Loosen the Wing Nut: Gently loosen the wing nut holding the receiving sensor in its bracket.
2. Adjust the Angle: Slowly nudge the sensor up, down, or side-to-side while watching the green LED.
3. Look for the Solid Light: Once the green LED glows steadily without flickering, the sensors are aligned.
4. Tighten the Hardware: Securely tighten the wing nut by hand. Be careful not to overtighten, as this can bend the bracket and pull the sensor out of alignment again.
5. Test Your Work: Always run a quick test using your remote control to ensure the door closes smoothly after making any adjustments.

How to Check the Wiring Connections and Test for Shorts

If your sensor LEDs remain completely dark even after cleaning and alignment, you may have a wiring issue. Garage door sensors are low-voltage devices connected to the opener motor unit by thin, two-strand bell wire.

To diagnose a wiring failure, follow this systematic approach:

1. Check the Terminals: Go to the opener motor unit on your ceiling. Inspect the wiring terminals where the sensor wires connect (typically white wires go to the white terminal, and white/black striped wires go to the grey or black terminal). Ensure the wires are inserted fully. Give them a gentle tug to verify they are secure.
2. Inspect for Physical Damage: Walk the length of the wire from the sensors up the walls to the motor. Look for crushed insulation, loose staples that may have pinched the wire, or chew marks from rodents.
3. Perform a Multimeter Continuity Test: If you have a digital multimeter, you can test the wires for continuity or shorts. A standard Chamberlain or LiftMaster logic board outputs about 4 to 5 volts DC to power the sensors. If you measure 0 volts at the sensor end while the opener is plugged in, there is a break in the wire run.
4. The Direct-Connect Bench Test: If you suspect the wires running through your garage walls are damaged, you can perform a direct-connect test. Cut the sensor wires about 12 inches from the sensor heads. Take both sensors up to the motor unit and wire them directly to the terminals. Point the sensors directly at each other at close range. If the LEDs light up solid, your sensors are perfectly healthy, and the problem lies entirely within the pre-installed wiring inside your garage walls.

Testing Manual Balance and the Emergency Release Handle

While the electronic safety features are vital, the mechanical balance of your garage door is just as critical. Many homeowners assume that the electric opener motor does all the heavy lifting. In reality, the garage door springs do 95% of the work. The springs act as a counterweight, neutralizing the door's physical weight so the motor only has to apply a small amount of force to move it.

If your garage door is out of balance, it puts immense strain on your opener's gears and motor, leading to premature failure. Even worse, an unbalanced door can drop unexpectedly, causing severe injury or property damage. If you notice your motor straining or making unusual noises, it might be time for our Garage Door Tune Up service to restore smooth operation.

How to Test the Manual Balance of Your Garage Door

Testing your door's balance is a simple process that you should perform quarterly.

1. Close the Door: Always begin this test with the garage door fully closed.
2. Disconnect the Opener: Pull the red emergency release handle straight down to disengage the door from the opener carriage.
3. Lift the Door Manually: Grip the bottom of the door and lift it slowly. It should move smoothly along the tracks with minimal resistance. If the door feels incredibly heavy or binds, stop immediately.
4. Check the Halfway Point: Lift the door to the halfway point (roughly waist height) and carefully let go.
5. Observe the Movement:
   • A Balanced Door will hover in place, or drift up or down very slowly (no more than a foot).
   • An Unbalanced Door will either slam shut violently (indicating weak or broken springs) or shoot upward rapidly (indicating excessive spring tension).

If your door fails this balance test, do not attempt to adjust the torsion or extension springs yourself. These springs operate under extreme tension and account for thousands of emergency room visits every year. Always contact a certified technician to handle spring adjustments. To keep your system in top shape, check out our guide on Preventive Garage Door Maintenance.

How to Inspect the Emergency Release Handle

The red emergency release handle is designed to disconnect your garage door from the automatic opener, allowing you to open and close the door manually during a power outage or an emergency.

To inspect this feature:

• Locate the Handle: Ensure the red cord and handle are hanging from the opener carriage and are easily accessible. The handle should hang at a height that is easy to reach but out of the way of your vehicles.
• Check the Cord Condition: Inspect the cord for fraying or dry rot. Some homeowners mistakenly zip-tie or remove this cord to prevent manual operation, which is highly dangerous in an emergency.
• Pull the Cord: Pull the handle firmly down. The trolley should disengage smoothly from the opener carriage.
• Test Manual Operation: Manually slide the door open and closed. Listen for grinding, squeaking, or popping sounds, which indicate track, roller, or hinge wear.
• Re-engage the System: Pull the cord slightly forward toward the door to reset the mechanism, then run the opener until the carriage re-engages with the trolley automatically.

Frequently Asked Questions About Garage Door Safety

What should I do if my garage door opener lights flash but the door won't close?

If your garage door opener lights flash and the door refuses to close, your system is communicating a diagnostic error code. On most major brands, 10 flashes specifically indicate a safety sensor issue. The system is designed to prevent the door from closing if it cannot verify that the path is clear.

If you need to close the door immediately in an emergency, you can temporarily bypass this safety lock. Press and hold the wall-mounted Door Control push bar continuously until the door is fully closed. Do not release the button until the door touches the garage floor. You cannot bypass this issue using a wireless remote control or keyless entry pad. Once the door is closed, you should address the underlying sensor alignment or wiring issues.

Why are my safety sensor LEDs off or flickering?

If your safety sensor LEDs are flickering or completely dark, the most common causes include:

• Loose Wiring: The low-voltage wire connections at either the sensor head or the motor terminal may have wiggled loose over time.
• Dirty Lenses: A thick layer of dust, cobwebs, or salt spray can block the infrared signal, causing the receiving LED to flicker.
• Extreme Texas Heat: In areas like Round Rock and Pflugerville, intense summer heat can accelerate the aging of sensor electronics, causing intermittent hardware failures.
• Bracket Misalignment: A minor bump from a garbage can or lawnmower can nudge the metal brackets just enough to break the direct line of sight between the sensors.

When should I call a professional for garage door safety repairs?

While cleaning your photo-eyes or performing a basic balance test are excellent DIY tasks, certain repairs are too dangerous for homeowners to attempt. You should call a professional technician if:

• Your door fails the auto-reverse or force sensitivity tests.
• Your garage door springs are broken, or the door fails the manual balance test.
• You notice frayed, rusted, or loose cables along the sides of your door.
• The door moves unevenly, shakes violently, or makes loud grinding noises during operation.

For expert assistance, explore our comprehensive Garage Door Service options.

Conclusion

Taking less than 10 minutes each month to test your garage door safety features is one of the easiest and most effective ways to protect your family, pets, and home. By regularly checking the auto-reverse mechanism, aligning your photo-eye sensors, and verifying the balance of your door, you can catch minor mechanical issues before they turn into costly, dangerous failures.
