How to Fix Garage Door Sensor Alignment Issues Fast

Why Your Garage Door Won't Close — and What to Do Right Now in Las Vegas, NV

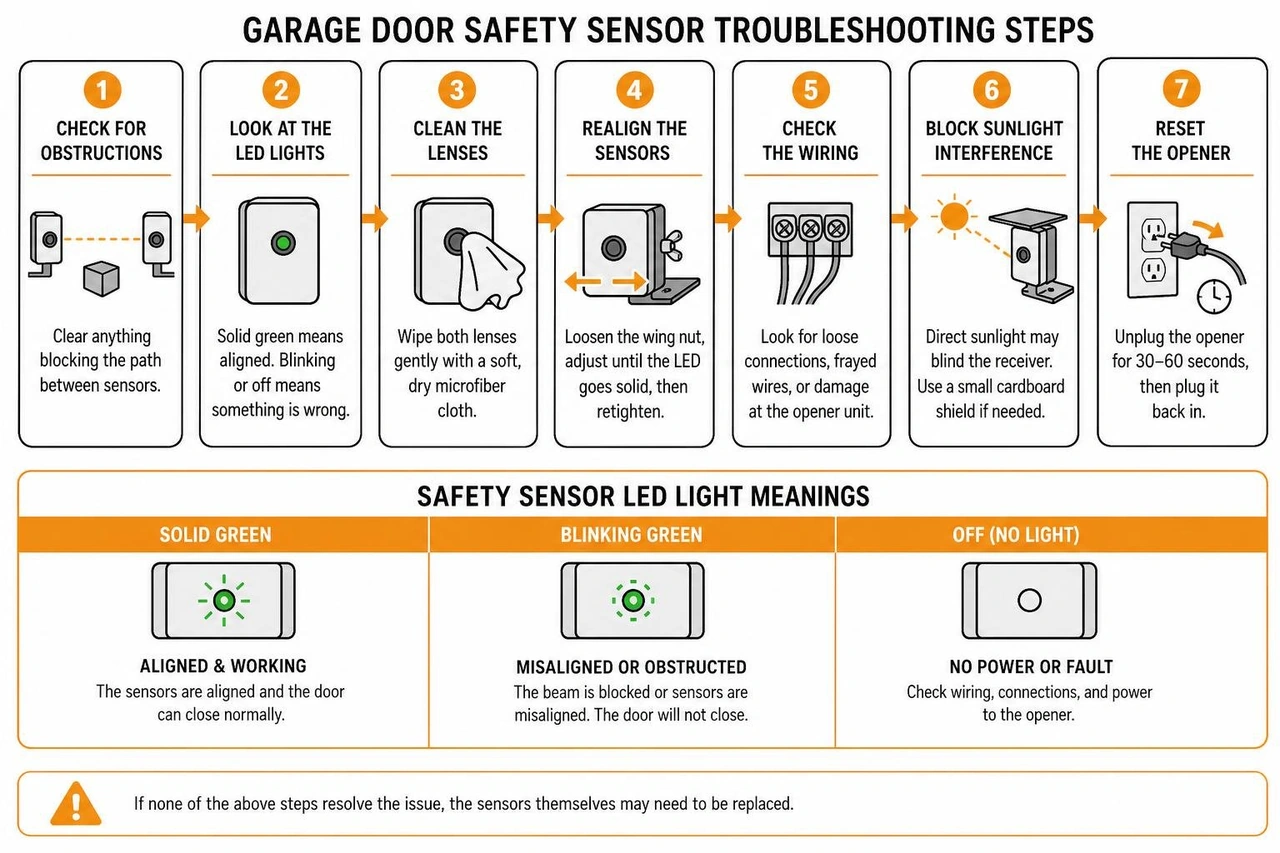

If you're dealing with a garage door that keeps reversing or refusing to close, these Garage Door Safety Sensor Troubleshooting Tips will help you fix the most common problems fast:

1. Check for obstructions — Clear anything blocking the path between the two sensors near the floor.
2. Look at the LED lights — A solid green light means the sensors are aligned. A blinking or off light means something is wrong.
3. Clean the sensor lenses — Wipe both lenses gently with a soft, dry microfiber cloth.
4. Realign the sensors — Loosen the wing nut on the bracket, adjust the sensor until the LED goes solid, then retighten.
5. Check the wiring — Look for loose connections, frayed wires, or damage at the terminals on the opener unit.
6. Block sunlight interference — If the door only fails in the afternoon, direct sunlight may be blinding the receiving sensor. A small cardboard shield can fix this immediately.
7. Reset the opener — Unplug it for 30–60 seconds, then plug it back in to clear minor errors.

If none of the above works, the sensors themselves may need to be replaced.

Here's the thing — garage door sensors are one of the most commonly misunderstood components in any home. They're small, easy to overlook, and installed just a few inches off the ground where they routinely get bumped, dusty, and sun-blasted. Yet when they stop working, your entire garage door system shuts down as a safety measure. That's by design. Since January 1993, federal law under UL 325 has required all automatic residential garage door openers sold in the United States to include photoelectric safety sensors — two small "eyes" that project an invisible infrared beam across the base of your garage door opening. If that beam is broken or misaligned, the opener won't close the door. Period.

For Las Vegas homeowners, the challenges are even more specific. Desert dust, intense afternoon sun, and extreme summer heat all create conditions that knock sensors out of alignment, coat their lenses, and degrade their wiring faster than in most other climates. A garage door that closes fine in the morning but reverses every evening? That's often a sunlight interference problem, not a broken sensor. A door that suddenly won't close after a windy day? Desert grit may be coating the lenses. These are solvable problems — if you know what to look for.

We have seen how often sensor issues are misdiagnosed — and how a systematic approach to Garage Door Safety Sensor Troubleshooting Tips can save homeowners time, money, and frustration. Let's walk through exactly how to diagnose and fix the most common sensor problems, step by step.

Basic Garage Door Safety Sensor Troubleshooting Tips glossary:

• Garage door safety features every homeowner should know
• How garage door safety sensors work
• How to test your garage door safety features

Common Causes of a Garage Door That Won't Close or Reverses Unexpectedly

When your garage door starts to close and then suddenly reverses with the overhead unit's light bulbs flashing, it is almost always a cry for help from your safety reversal system. By standard industry design, if the safety sensors are blocked, misaligned, or lacking power, the opener's light will typically flash 10 times to signal a safety sensor issue.

While the system is highly reliable, it is also incredibly sensitive. The safety eyes are positioned just 4 to 6 inches off the garage floor—right where daily life happens. In our experience serving families across the Las Vegas valley, from Summerlin to Henderson, the most common culprits behind unexpected reversals include:

• Physical Obstructions: It doesn't take a massive object to break the infrared beam. A stray garden hose, a leaning broom handle, a misplaced recycling bin, or even a hanging piece of weatherstripping can cross the path of the beam.
• The Las Vegas Climate Factors: Our local environment is particularly harsh on sensitive electronics. High winds whip up fine desert sand and dust, coating the plastic lenses. During intense summer heatwaves in areas like North Las Vegas and Paradise, the extreme temperature cycles can actually cause cheap metal mounting brackets to warp or expand, throwing the sensors out of alignment without anyone ever touching them.
• Insects and Pests: Spiders love the dark, cozy corners around garage door tracks. A single web spun directly in front of a sensor lens can scatter the infrared light beam, tricking the system into thinking a child or pet is standing in the doorway.

For more detailed advice on how to keep this critical pathway clear, check out our guide on Garage Door Safety Sensor Blocking Tips.

Essential Garage Door Safety Sensor Troubleshooting Tips for Homeowners

Before you assume your sensors are completely broken, a few basic hands-on checks can resolve up to 75% of all sensor-related issues. We recommend starting with a simple visual inspection. Look at both safety eyes to see if they are physically pointing at one another and check if their mounting brackets are loose or bent.

Next, focus on cleaning. Because these sensors sit so close to the dusty garage floor, they act as magnets for desert grit, exhaust soot, and cobwebs.

To clean your sensor lenses safely:

1. Locate the plastic lenses on both the sending and receiving sensors.
2. Use a soft, dry, lint-free microfiber cloth to gently wipe away any dust or debris.
3. Avoid using paper towels, as their wood fibers can permanently scratch the delicate plastic lenses.
4. Never use harsh chemical solvents or glass cleaners, which can fog the plastic and permanently disrupt the infrared signal.

If a quick clean doesn't solve the issue, we need to look closer at what the indicator lights are trying to tell us. For a quick diagnostic overview, you can reference our step-by-step walkthrough on How to Fix Garage Door Sensors in 5 Simple Steps.

Understanding LED Colors and Blinking Patterns

Every modern garage door safety system relies on a matched pair of sensors: a sending sensor (the transmitter) and a receiving sensor (the receiver). The sending sensor projects the invisible infrared light beam, and the receiving sensor listens for it.

To tell them apart, look at the LED indicator lights on the side of each unit. The behavior of these lights is your first and most valuable diagnostic tool:

• Solid Emitter and Solid Receiver: This is the ideal state. It means both sensors have power, they are perfectly aligned, and the path between them is clear.
• A Blinking Green Light on the Receiver: This indicates that the receiving sensor has power but cannot see the beam from the sending sensor. This is usually caused by misalignment, a dirty lens, or a physical obstruction.
• One or Both Lights Completely Off: This points to a power supply or wiring issue. If the sending sensor's light is completely dark, the receiving sensor will always blink or remain dark as well.

Because LED colors can vary slightly depending on the brand of your garage door opener, we’ve put together this quick-reference table to help you decode what your specific system is saying:

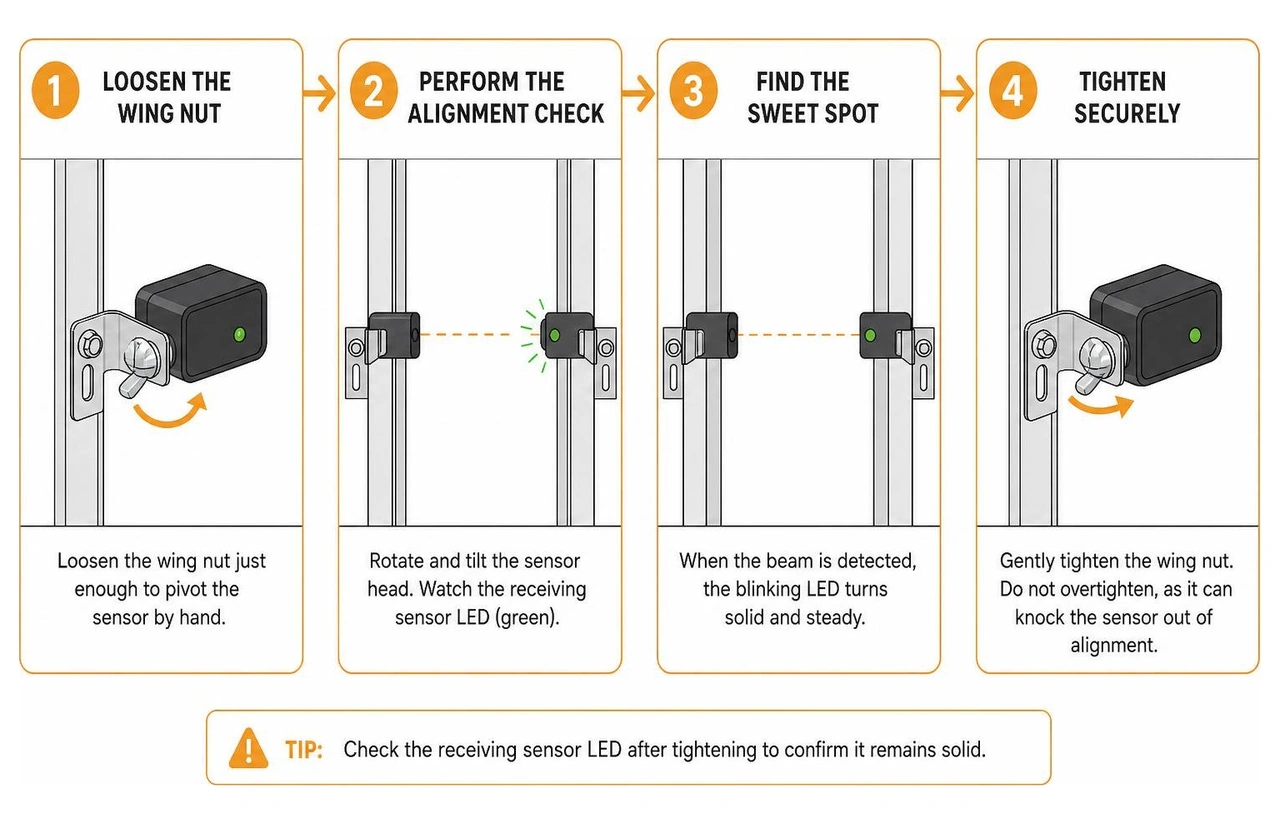

How to Align Misaligned Garage Door Safety Sensors

Because misalignment is the number-one cause of safety sensor problems, knowing how to adjust the brackets is an essential homeowner skill. If you accidentally bump a sensor with a garbage can or a bicycle, it only takes a fraction of an inch to disrupt the connection.

To realign your sensors quickly and accurately:

1. Loosen the Wing Nut: Locate the wing nut holding the sensor head to the metal bracket. Loosen it just enough so you can pivot the sensor by hand, but not so much that it flops loosely.
2. Perform the Alignment Check: Slowly rotate and tilt the sensor head side-to-side and up-and-down. Watch the LED on the receiving sensor (the green light on LiftMaster/Chamberlain systems).
3. Find the Sweet Spot: The moment the sensor detects the infrared beam, the blinking LED will turn solid and steady.
4. Tighten Securely: Gently tighten the wing nut back down. Be careful not to "gorilla" the nut or overtighten it, as the physical twisting motion can pull the sensor back out of alignment just as you finish.
5. Use the String Test for Severe Misalignment: If your brackets are badly bent from being kicked or hit, tie a string to one sensor, stretch it tightly across the doorway to the opposite sensor, and use a bubble level on the string to ensure both brackets are mounted at the exact same height.

Dealing with Sunlight Interference and Glare in the Desert

If you live in Anthem, Green Valley, or Sun City, you may notice a strange pattern: your garage door works perfectly all morning, but refuses to close between 4:00 PM and 6:00 PM.

This isn't a mechanical failure; it is sunlight interference. Direct sunlight contains strong ambient infrared radiation. When the sun dips low in the sky, its rays can shine directly into the lens of your receiving sensor, completely overwhelming its photodiode and blinding it. The receiver can no longer distinguish the sending sensor's beam from the blinding solar glare, triggering a false "beam broken" safety reversal.

To fix sunlight glare in the desert:

• The Cardboard Shield Trick: You can easily create a DIY sun visor. Cut a small, 2x3-inch piece of cardboard and tape it to the top and sides of the receiving sensor casing, creating a small hood that shades the lens from overhead glare without blocking the straight-line path of the infrared beam.
• Swap the Sensors: Because the sending sensor doesn't "read" light, it is immune to sunlight glare. If your receiving sensor is on the side of the garage door opening that receives direct afternoon sun, swapping the physical locations of the sending and receiving units can solve the problem permanently.

Advanced Diagnostics: Wiring Issues and Sensor Testing

If your sensor lights remain completely dark even after you have verified that the garage door opener is plugged in and the home's circuit breaker is on, you are likely dealing with a low-voltage wiring issue. The wires connecting your sensors to the overhead motor carry safe 12–24V DC power, making them highly accessible for DIY diagnostics.

When troubleshooting electrical issues, we highly recommend using a digital multimeter. To learn more about diagnosing broader communication issues between your remote and the motor, take a look at our guide on Garage Door Opener Not Responding Troubleshooting.

How to Check for and Fix Wiring Issues

Garage door sensor wires are incredibly thin and susceptible to physical damage. Over time, we often see wiring faults caused by staples that were driven too deeply into the drywall (pinching the wire), loose wire nuts, or hungry desert rodents chewing through the low-voltage lines.

To systematically trace a wiring problem:

1. Check Terminal Connections First: Head up to the overhead motor unit. Ensure that the solid white wires are connected to the white terminal and the white wires with the black stripe are connected to the grey or black terminal. Gently tug on each wire to ensure they are firmly clamped.
2. Inspect the Wire Run: Walk the path of the wire from the sensor up the wall and along the ceiling. Look for visible cuts, frays, or areas where the wire may have been snagged.
3. Perform a Continuity Test: If you have a multimeter, set it to continuity mode (the setting that beeps when the two probes touch). Disconnect the sensor wire from both ends, touch a probe to each end of a single conductor, and listen for the beep. A solid beep and a reading close to 0 ohms indicates a healthy wire. An "OL" (open loop) reading indicates infinite resistance, confirming a clean break or cut somewhere inside the wire run.

Performing a Direct-to-Motor Test

If your sensor lights are flickering or off, and you cannot find the break in the walls, you need to isolate whether the problem lies within the pre-wired household wiring or if the physical sensor units themselves have failed. The most definitive way to do this is by performing a direct-to-motor test.

To perform this test safely:

1. Unplug the overhead garage door opener from its power outlet.
2. Remove both safety sensors from their wall brackets near the floor.
3. Cut the sensor wires approximately 12 inches away from the sensor heads.
4. Strip about 1/2 inch of insulation off the ends of these short 12-inch wires.
5. Take both sensors up to the overhead motor unit. Twist the solid white wires together, and twist the striped wires together.
6. Insert the twisted white wires into the white terminal, and the twisted striped wires into the grey/black terminal.
7. Place the two sensors on top of the motor unit or hold them in your hands, pointing them directly at one another (lens to lens).
8. Plug the opener back into the wall.

If the LED lights on both sensors glow steadily, your sensors are perfectly healthy. This confirms that the low-voltage wires running through your garage walls are damaged and need to be replaced. If the lights remain dead during this test, the sensors themselves have failed internally.

How to Test Your Sensors After Troubleshooting

Once you have cleaned, aligned, or rewired your sensors, you must verify that the safety reversal system is fully functional before declaring the job done. Never skip this step; a malfunctioning safety sensor poses a severe safety risk to your family and pets.

We recommend performing three quick tests:

• The Wave Test: Start the garage door closing. While it is in motion, wave a long object (like a broom handle) through the path of the sensors. The door should immediately stop and reverse back to the fully open position.
• The Cardboard Block Test: Place a solid cardboard box or a heavy cardboard tube directly in the path of the sensors on the floor, then attempt to close the door using your wall button. The door should refuse to move downward, and the opener lights should flash.
• The 2x4 Auto-Reverse Test: Lay a flat 2x4 piece of wood on the floor directly under the center of the garage door path. Close the door. When the bottom edge of the door strikes the wood, the physical resistance should trigger the opener's internal force sensors, causing the door to reverse within two seconds.

To keep your home safe all year round, make these quick checks a part of your regular home maintenance routine. For more safety checklists, read our Garage Door Safety Tips 2026.

When to Replace Your Sensors Instead of Repairing Them

While many sensor issues can be resolved with a quick adjustment or a microfiber cloth, there comes a point where repair is no longer possible or safe. Generally, garage door safety sensors have an expected lifespan of 10 to 15 years. However, in our local Southern Nevada climate, that lifespan is often shortened to 7 to 10 years due to the extreme thermal stress of our summer heat cycles, which can degrade internal circuit boards and dry out plastic lens gaskets.

You should opt for a complete sensor replacement if you experience:

• Water Damage: If a lawn sprinkler or a pressure washer has sprayed directly into the sensor casing, moisture can short-circuit the internal electronics.
• Physical Damage: If a car bumper or a heavy trash can has completely cracked the plastic housing of the sensor, it can no longer protect the delicate internal components from dust.
• Dead LEDs During Direct-to-Motor Testing: If your sensors fail to light up during the direct-to-motor test, the internal infrared diodes have burned out.

When replacing sensors, they must always be purchased and replaced as a matched pair. You cannot mix and match different brands, as the transmitter and receiver must operate on the exact same infrared frequency to communicate. For a deeper look into maintaining a secure, modern garage, explore our comprehensive Garage Door Safety Guide for Homeowners 2026.

Frequently Asked Questions About Garage Door Sensors

What Are the Best Garage Door Safety Sensor Troubleshooting Tips for Blinking Lights?

A blinking light on your receiving sensor (typically the green light on Chamberlain/LiftMaster units) means the sensor has power but cannot see the transmitter. Start by wiping both lenses with a dry microfiber cloth to remove dust. Next, loosen the wing nut on the bracket and slowly pivot the sensor until the blinking light turns solid and steady. If the lights on both sensors are blinking simultaneously, this usually indicates that the wires at the overhead motor terminals have been crossed or swapped.

Is It Safe to Bypass Sensors Temporarily Using These Garage Door Safety Sensor Troubleshooting Tips?

You can temporarily bypass malfunctioning safety sensors in an emergency to secure your home. To perform this manual override, press and hold the wall-mounted door control button continuously until the garage door is completely closed. If you release the button before the door touches the floor, the door will immediately reverse back up.

Warning: This bypass method should only be used as a temporary emergency measure. Operating a heavy garage door without active safety sensors is extremely dangerous and violates federal safety standards.

Why Does My Garage Door Reverse Immediately After Touching the Floor?

If your garage door rolls all the way down, touches the floor, and then immediately reverses back up, the safety sensors are usually not the problem. This behavior typically points to an issue with the opener's close-limit switch or force settings. The opener thinks the floor is an obstacle because the travel limit is set too low, forcing the door to press too hard against the ground. Adjusting the limit dials or reprograming the travel limits on your overhead unit will resolve this issue.

Conclusion
