How to Align Sensors When Your Garage Door Won't Close

When a Safety Sensor Is Blocking Your Garage Door From Closing

If a safety sensor blocking garage door from closing is your problem right now, here is what to check first:

Quick fixes to try immediately:

1. Look for obstructions - Check that nothing is blocking the path between the two sensors mounted near the bottom of your door frame
2. Check the indicator lights - Both sensors should show a steady light; a blinking or off light means something is wrong
3. Clean the lenses - Wipe both sensor lenses with a soft, dry cloth to remove dust or debris
4. Check alignment - Gently adjust each sensor bracket until both lights glow solid and steady
5. Check the wiring - Look for any loose, frayed, or disconnected wires running to either sensor unit

If none of those steps work, keep reading — this guide walks through every common cause and fix.

Your garage door is one of the heaviest moving objects in your home, and the small sensors mounted near the bottom of the door frame are what keep it from closing on a person, pet, or vehicle. Since 1993, U.S. safety standards have required these photoelectric sensors on all automatic garage door openers — and for good reason. When they work correctly, they create an invisible infrared beam across the opening that triggers an immediate reversal if anything breaks it. But when something interferes with that beam — whether it is dust from a Las Vegas windstorm, a sun-baked bracket that has shifted out of position, or a simple cobweb — your door will refuse to close, leaving your home exposed and your schedule disrupted.

I'm Jason Henderson, founder of Good Golly Garage Doors, and through years of hands-on experience leading garage door service teams across the Las Vegas Valley, I have seen a safety sensor blocking garage door from closing be one of the most common — and most misunderstood — service calls we receive. In the sections below, I will walk you through exactly how to identify the problem and get your door closing safely again.

Identifying a Safety Sensor Blocking Garage Door From Closing

To fix the problem, we first need to understand what these little "eyes" are doing. Every modern garage door system uses a pair of photoelectric sensors, often called photo-eyes. These are part of the UL 325 safety standards, which were updated in 1993 to require secondary entrapment protection on all residential openers. According to the U.S. Consumer Product Safety Commission (CPSC), these sensors must be mounted no higher than 4 to 6 inches above the garage floor to ensure they can detect small children or pets.

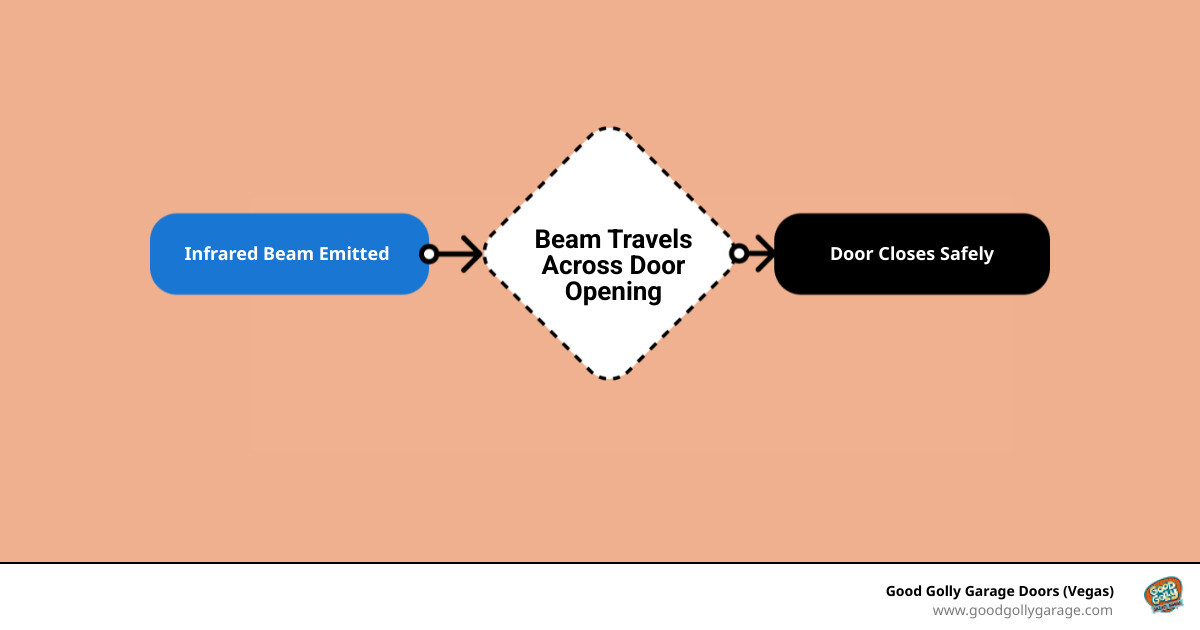

The system consists of a Sending Unit and a Receiving Unit. The sending unit emits an invisible infrared beam of light across the threshold. The receiving unit looks for that specific beam. As long as the receiver "sees" the light, the door is allowed to close. If that beam is broken by a bicycle tire, a trash can, or even a stray leaf, the system interprets it as an obstruction and prevents the door from moving downward.

When you have a safety sensor blocking garage door from closing, the opener isn't actually broken; it is doing exactly what it was designed to do: prioritizing safety over operation. However, "false positives" happen frequently when the sensors aren't physically blocked but think they are due to technical glitches or environmental factors. If you suspect your door's mechanical parts are the issue instead, you can learn more about Las Vegas garage door repair to see if your tracks or springs might be the culprit.

Common Signs of Sensor Malfunction in Las Vegas

Living in the Las Vegas Valley presents unique challenges for garage door electronics. Between the intense summer heat in Henderson and the dust storms that roll through Summerlin, our sensors take a beating. Here are the most common signs that your sensors are the reason your door won't shut:

• The Reversal Trick: You press the remote, the door starts to move down a few inches, and then it immediately reverses and heads back up.
• The Blinking Lights: Look at the small LED lights on the sensors themselves. On most major brands, a blinking light on the receiving sensor is a universal "help" signal. If the light is off entirely, the sensor has lost power or is completely misaligned.
• The 10-Flash Warning: Many openers, particularly LiftMaster and Chamberlain models, will flash the main overhead light bulbs 10 times to tell you the sensors are obstructed or misaligned.
• The Wall Button Override: If you can only get the door to close by standing at the wall station and holding the button down until the door hits the floor, you definitely have a sensor issue. This "dead-man" feature is a safety bypass that requires active human supervision.
• Intermittent Failure: Sometimes the door closes fine at night but fails during the day. This is a classic sign of sunlight interference, which is rampant in our desert climate.

Because these components are so sensitive, we recommend regular check-ups. You can find more info about Las Vegas garage door maintenance to keep your entire system running smoothly despite the desert elements.

Troubleshooting Environmental Interference

In Las Vegas, the "obstruction" isn't always a physical object like a box or a car. Often, it's the environment itself. Our desert dust is incredibly fine and can coat the sensor lenses, dimming the infrared beam until the receiver can no longer detect it. Spider webs are another frequent offender; a single silk strand waving in the breeze can break the beam intermittently.

Extreme heat can also play a role. In areas like North Las Vegas or Paradise, garage temperatures can soar, occasionally causing the plastic sensor housings or metal brackets to warp or expand. This slight shift is often enough to move the beam just a fraction of an inch out of alignment. Additionally, check for:

• Vibration Displacement: Every time your heavy door opens and closes, it vibrates the tracks. Over months of use, this can loosen the wing nuts holding your sensors, causing them to sag.
• Corroded Connectors: While we don't have much rain, the humidity from swamp coolers or car washes can occasionally lead to corrosion at the wire staples or sensor terminals.
• Loose Wiring: Pests or even moving boxes can snag the thin bell wire that connects the sensors to the motor head.

How Sunlight Acts as a Safety Sensor Blocking Garage Door From Closing

One of the most frustrating "invisible" blocks is Infrared Saturation. Since the sensors use infrared light, the powerful Nevada sun can actually "blind" the receiving sensor. This usually happens during specific times of the day—like early morning in Anthem or late afternoon in Summerlin—when the sun is low enough to shine directly into the lens.

The receiver gets overwhelmed by the sun's infrared radiation and can't distinguish the sending unit's signal. If your door only fails when the sun is hitting it, try these fixes:

1. Swap the Sensors: Move the receiving sensor to the opposite side of the door where it will be in the shade.
2. Create a Sun Shield: You can temporarily use a piece of cardboard or a toilet paper roll taped around the sensor to act as a "visor."
3. Relocation: Sometimes moving the sensors an inch further back into the garage (while staying within the 6-inch height limit) provides enough shade to solve the problem.

Step-by-Step Alignment and Maintenance

If you have confirmed there are no physical objects in the way, it is time for some basic maintenance. We always suggest starting with the simplest solution: cleaning.

1. Clean the Lenses: Use a soft, microfiber cloth and a tiny bit of water or mild glass cleaner. Gently wipe the "eye" of both the sending and receiving units. In Las Vegas, do this at least once a quarter to combat dust buildup.2. Tighten the Brackets: Ensure the metal brackets attached to the tracks are sturdy. If they wiggle, your alignment will never stay true.3. The Pivot Adjustment: Most sensors are held in place by a wing nut. Loosen it slightly so you can pivot the sensor up, down, left, or right.

Checking Alignment to Prevent a Safety Sensor Blocking Garage Door From Closing

Alignment is a game of millimeters. Follow this process to ensure your beam is stable:

• Identify the Units: Usually, one sensor has an Amber or Orange light (the Sender) and the other has a Green light (the Receiver). The Amber light should almost always be solid—it just sends light. The Green light is the one that tells you if the connection is made.
• The Solid Light Goal: Your goal is for both lights to be glowing solid. If the green light is flickering or off, the alignment is broken.
• The String Test: For a DIY alignment check, tie a string to one sensor and pull it across to the other. Use a level on the string to see if they are at the same height and parallel.
• Parallel Positioning: Ensure the sensors are pointing directly at each other, not angled toward the floor or the ceiling. Even a slight tilt can cause the beam to miss the receiving lens.
• Beam Stability: Once both lights are solid, tighten the wing nuts firmly. Give the bracket a tiny tap; if the light flickers, you need to tighten it further or adjust the angle slightly to ensure a "center-hit" on the lens.

Frequently Asked Questions

Why does my garage door only close when I hold the wall button?

As we mentioned earlier, this is a built-in safety override. When the opener detects a safety sensor blocking garage door from closing, it disables remote operation to prevent you from accidentally crushing something you can't see. By forcing you to hold the wall button, the manufacturer ensures you are physically present and watching the door close. If this is happening, your logic board is likely fine, but your sensor communication has failed.

What do the different colored lights on my sensors mean?

While colors vary by brand, the most common setup (Chamberlain/LiftMaster/Craftsman) uses an Amber light for the sending sensor and a Green light for the receiving sensor.

• Solid Amber + Solid Green: System is healthy.
• Solid Amber + Blinking Green: Sensors are misaligned or dirty.
• Off Amber: The sending sensor has no power (check wiring).
• Blinking Red: On some brands (like Genie), a blinking red light indicates an obstruction or a component failure.

Is it safe to bypass my garage door sensors permanently?

No. We strongly advise against ever trying to bypass or disable these sensors. Beyond the obvious entrapment risk to your family and pets, disabling safety features is a violation of federal law (UL 325) and can lead to massive liability issues if an accident occurs. Furthermore, if you ever sell your home in Las Vegas, a home inspector will flag disabled sensors immediately, requiring a professional repair before the sale can proceed.

Conclusion

A safety sensor blocking garage door from closing is a frustration that every homeowner will likely face at some point, but in most cases, a quick cleaning or a slight adjustment of the bracket is all it takes to restore order. These small devices are the unsung heroes of home safety, working 24/7 to protect your loved ones and your property.

At Good Golly Garage Doors, we take pride in being a family-owned business rooted right here in the Las Vegas community. Whether you are in Summerlin, Henderson, or North Las Vegas, we understand the specific toll our desert climate takes on your home's hardware. We are committed to providing reliable workmanship, fast response times, and the kind of transparent service that builds long-term trust.

If you have tried the steps above and your door still won't stay closed—or if you simply want the peace of mind that comes with a professional 26-point safety inspection—we are here to help. Our skilled technicians are familiar with every major brand and can quickly diagnose whether you need a simple alignment, a wiring repair, or a sensor replacement.

Don't leave your home unsecure overnight. Schedule service in Las Vegas with Good Golly Garage Doors today, and let us get your garage door back on track!
