Decoding the Blinking Light on Your Garage Door Opener Wall Console

Why Is That Light Flashing? Understanding Your Garage Door's Cry for Help

At Good Golly Garage Doors, we know that decoding the blinking light on your garage door opener wall console starts with understanding that your system is actually trying to communicate with you. Is your garage door refusing to close, but instead of moving, the overhead motor just clicks while the wall button flashes rapidly? You press the button again, hoping it was just a temporary glitch, but the door remains stubbornly open. This is one of the most common and frustrating scenarios our technicians see homeowners in the local area face. That flashing light is not a random malfunction; it is a specific, built-in diagnostic language designed to tell you exactly what is preventing the door from operating safely.

When a modern opener detects a fault, it engages a safety lockout to prevent potential damage to the door, the motor, or anything sitting in its path. To help you figure out what went wrong, the system outputs diagnostic blink code counts (e.g., continuous blinking vs. specific flash patterns). The primary decision point you face right now is determining whether this flashing light indicates a simple, user-correctable safety sensor lockout that you can fix in five minutes, or a complex logic board failure that requires a professional technician.

If you are dealing with persistent issues and want to explore professional solutions, you can learn more about your options for garage door openers or schedule a comprehensive garage door repair with our experienced team to get your system back on track.

The Anatomy of a Diagnostic Code

Before you start pushing buttons or climbing a ladder, it helps to understand how these systems process errors. The logic board inside your opener acts as the brain of the operation. It constantly monitors the safety sensors, the travel limits, the motor's power draw, and the internal wiring. The moment one of these components sends an abnormal signal—or fails to send a signal at all—the logic board halts all downward movement. It then translates that specific error into a visual code.

Reading these codes accurately is the key to a fast resolution. By paying close attention to the pattern, the speed, and the color of the flashes, you can bypass the guesswork and go straight to the source of the problem. Your goal is to observe the pattern, translate it using the manufacturer's guidelines, and then take the appropriate, safe action to restore your door's function.

Continuous Blinking vs. Intermittent Flashes: The First Diagnostic Step

The very first step in troubleshooting a flashing wall console is to categorize the type of blink you are seeing. Not all flashing lights indicate a broken component. In fact, one of the most common reasons a wall button flashes has nothing to do with a hardware failure at all. You need to observe the diagnostic blink code counts (e.g., continuous blinking vs. specific flash patterns) to determine if the opener is simply in a locked state or if it is actively reporting a hardware error.

This basic observational check applies to nearly all standard residential models, including chain drive, belt drive, and direct drive openers. Taking a few seconds to watch the light pattern can save you a tremendous amount of frustration and prevent unnecessary tampering with the opener's mechanical parts.

Identifying Lock or Vacation Mode

If the light on your wall console is flashing continuously and rapidly, without any pauses, your opener has likely been placed in "Lock" or "Vacation" mode. This is a security feature designed to disable all remote controls and wireless keypads while you are away from home, preventing unauthorized access.

How it gets activated: This mode is often turned on accidentally. Someone might lean against the wall console, or a child might press and hold the lock button while playing in the garage. When engaged, the wall console will blink incessantly to remind you that the system is locked down.

How to fix it:

• Locate the "Lock" or "Vacation" button on your wall console.

• Press and hold this button for three to five seconds.

• Watch the flashing light. It should stop blinking and return to a solid, steady glow.

• Test the door by pressing the main open/close button. If it operates normally, you have solved the problem.

Reading Intermittent Error Codes

If the light is not flashing continuously, but rather blinking in a specific, repeating pattern with noticeable pauses in between, you are dealing with a hardware error code. This means the logic board has detected a fault in the system.

To read an intermittent error code correctly, you need to be patient. Stand near the wall console or the overhead motor unit and watch the light. Count the number of flashes, wait for the distinct pause (usually two to three seconds), and then count the flashes again to confirm the pattern. For many modern units, you will need to look at the motor head on the ceiling, as the wall console will simply flash to alert you to look up at the main unit for the specific diagnostic blink code counts.

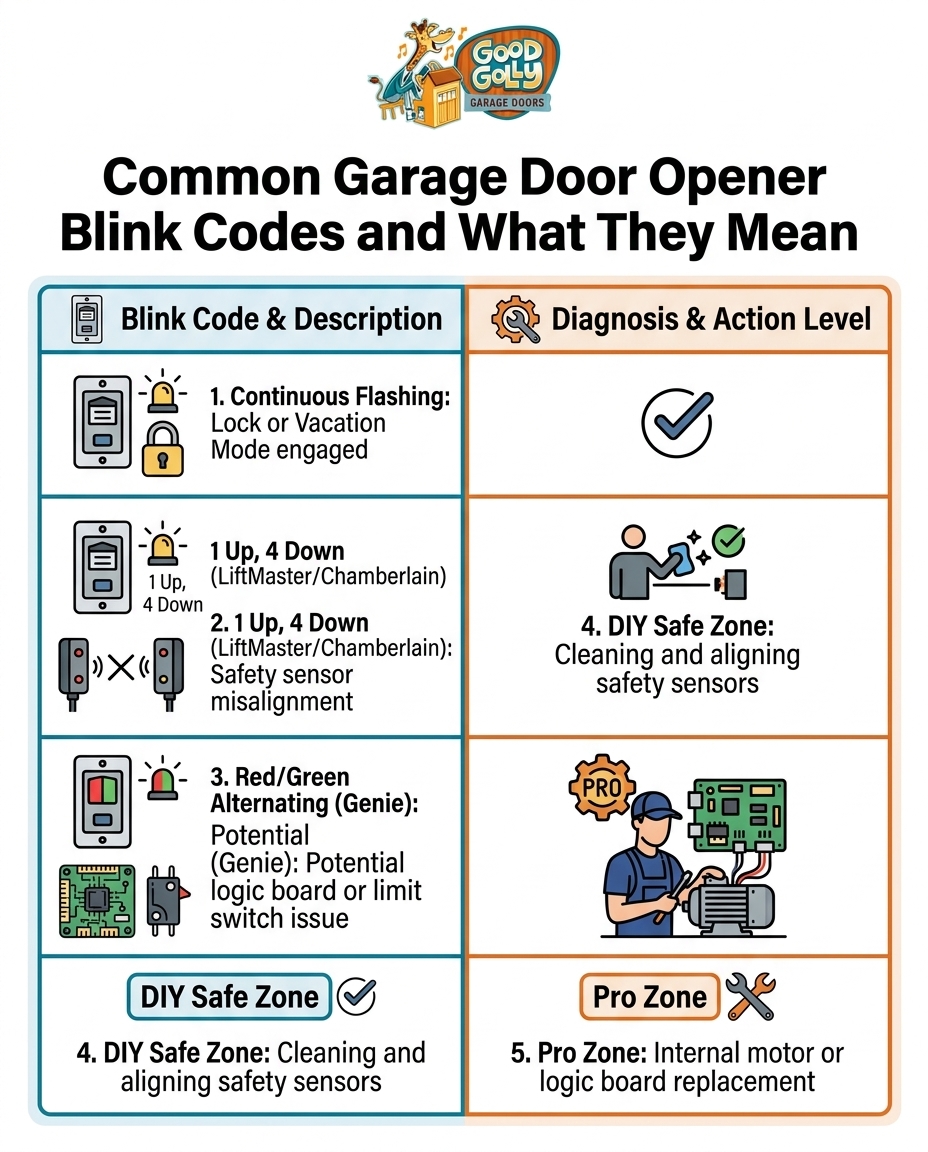

Translating LiftMaster and Chamberlain Arrow Flash Patterns

In our years of servicing homes across the local area, we've found that if you own a LiftMaster, Chamberlain, or Craftsman garage door opener manufactured in the last decade, the diagnostic process is highly standardized. When your wall console is flashing, the actual detailed error code is displayed on the overhead motor unit itself. You will need a stepladder to safely inspect the back panel or the area under the light bulb cover.

These brands typically use a combination of Up and Down arrow flashes to communicate the issue. The Up arrow will flash a certain number of times, followed by the Down arrow flashing a certain number of times. This specific diagnostic blink code count pattern corresponds directly to a known fault. Here is a translation of the most common arrow flash patterns our technicians encounter.

• 1 Blink — Down Arrow Flashes: 1 Blink — Diagnostic Meaning: The wiring to the safety sensors is shorted or disconnected. — Recommended Action: Inspect the wires running from the sensors to the motor for cuts or loose staples.

• 1 Blink — Down Arrow Flashes: 4 Blinks — Diagnostic Meaning: The safety reversing sensors are misaligned or obstructed. — Recommended Action: Check for physical blockages, clean the lenses, and realign the brackets.

• 4 Blinks — Down Arrow Flashes: 6 Blinks — Diagnostic Meaning: The safety sensors are temporarily obstructed or the lenses are dirty. — Recommended Action: Wipe the lenses with a soft cloth and ensure no debris is hanging from the door track.

• 5 Blinks — Down Arrow Flashes: (Varies / None) — Diagnostic Meaning: Potential logic board failure or significant power surge damage. — Recommended Action: Unplug the unit to reset. If the code persists, professional logic board replacement is required.

Understanding these codes prevents you from guessing at the problem. For example, if you see 1 Up and 4 Down, you know with absolute certainty that the issue lies with the safety sensors near the floor, and there is no need to inspect the motor's internal gears or the drive belt.

Decoding Genie Opener LED Color Codes

Genie garage door openers utilize a different diagnostic system. Instead of relying solely on blink counts or arrow sequences, Genie units use colored LED lights—specifically Red and Green—to communicate system status and hardware faults. When your Genie wall console alerts you to an issue, you will need to look at the LED indicators located on the powerhead (the main motor unit on the ceiling).

Observing the specific color and the diagnostic blink code counts (e.g., continuous blinking vs. specific flash patterns) is crucial before you attempt any resets or adjustments. The color coding provides an immediate indication of whether you are dealing with a sensor issue or an internal motor fault.

Common Genie LED Diagnostic Patterns

• Continuous Blinking Red LED: This is the most common Genie error code and almost always points to a problem with the Safe-T-Beam system (the safety reversing sensors). It indicates that the sensors are misaligned, blocked by an object, or have a damaged wire.

• Solid Red LED (No Blinking): A solid red light often indicates that the opener's travel limits have not been properly set, or the logic board requires a recalibration.

• Alternating Red and Green LEDs: When the lights flash back and forth between red and green, the opener is indicating a more severe internal issue. This pattern often points to a faulty limit switch, a malfunctioning RPM sensor, or a logic board failure.

• Blinking Green LED: A blinking green light usually means the opener is actively receiving a signal from a remote control or keypad. If it blinks green continuously without anyone pressing a button, there may be a stuck button on one of your remotes causing RF interference.

If you see the alternating red and green lights, our team generally advises that you avoid forcing the door closed manually while the opener is still engaged, as this can strip the internal carriage gears. Power down the unit and assess whether a professional evaluation is necessary.

Safety Reversing Sensors: The Most Common DIY Fix

Regardless of the brand of your opener, safety sensor misalignment is the most frequent cause of diagnostic blink codes. Since 1993, federal law has required all residential garage door openers to be equipped with a non-contact safety reversing system. These photo-eyes sit near the floor on either side of your garage door track, sending an invisible infrared beam across the opening.

If that beam is broken, the logic board enforces a strict safety lockout to prevent the door from crushing an object, a pet, or a person. When the wall console flashes and the door refuses to go down, the opener is doing exactly what it was designed to do. Because this is an external, non-electrical adjustment, it is the definitive go/no-go line for homeowners. You can safely check and adjust these sensors yourself without risking electrical shock or mechanical damage.

It is also important to consider environmental factors in the local area. Extreme temperature fluctuations and high humidity can cause metal components to expand or contract, leading to subtle track warping. Additionally, high humidity can cause the glass lenses on the photo-eyes to fog up, breaking the infrared beam and triggering these specific blink codes even when nothing is physically blocking the path.

How to Safely Realign Your Sensors

1. Check for physical obstructions: Look closely at the base of the garage door tracks. Remove any leaves, cobwebs, trash cans, or lawn tools that might be crossing the invisible beam path.

2. Clean the lenses gently: Take a clean, dry microfiber cloth and gently wipe the glass lenses on both the sending and receiving sensors. Do not use harsh chemical cleaners, as these can scratch the lenses or leave a cloudy residue.

3. Inspect the indicator lights: Each sensor has a small LED light. The sending unit (usually an amber or yellow light) should be solid. The receiving unit (usually a green light) will flicker or turn off completely if it is out of alignment.

4. Adjust the brackets: Loosen the wingnut on the receiving sensor's bracket just enough to allow movement. Gently pivot the sensor by hand until the green indicator light stops flickering and holds a strong, steady glow.

5. Tighten and test: Hand-tighten the wingnut so the sensor stays in place. Go back to your wall console and press the button. If the door closes smoothly, the issue is resolved.

If you perform these steps and the diagnostic blink code counts (e.g., continuous blinking vs. specific flash patterns) persist, do not attempt to bypass or override the safety system. Bypassing sensors is extremely dangerous. Instead, consider scheduling professional garage door maintenance with Good Golly Garage Doors to have the wiring and sensor alignment professionally evaluated.

Logic Board Failures: When to Step Back and Call a Professional

While safety sensors represent a safe zone for DIY troubleshooting, certain blink codes indicate complex internal failures where homeowners must draw the line. When your opener's diagnostic blink code counts point to a repeating pattern of 5 or 6 flashes (depending on the brand), our technicians know it is usually signaling a logic board failure, a motor fault, or a damaged RPM sensor.

The logic board is a highly sensitive printed circuit board. It can fail due to several factors, including severe power surges, nearby lightning strikes, or simply the degradation of electronic components over a decade of daily use. When a logic board fails, the opener may behave erratically—opening on its own, refusing to accept remote control signals, or flashing error codes constantly despite the sensors being perfectly aligned.

A strict safety warning from our team: You should never attempt to open the motor casing, handle the internal capacitors, or try to wire a replacement logic board without professional licensing and training. Garage door openers store significant electrical charge, and improper wiring can lead to permanent motor damage, electrical fires, or severe personal injury. The moment a diagnostic code points to the logic board, your DIY troubleshooting ends.

Get Honest Diagnostics for Persistent Blink Codes

One of the biggest concerns our customers share with us when facing a logic board failure is being pressured into buying a completely new garage door opener. However, an accurate, honest diagnosis can often prevent throwing money at the wrong parts. A professional evaluation ensures you aren't pushed into an unnecessary total opener replacement when a targeted logic board swap or a simple internal wiring fix is all that is needed. If your wall console continues to flash an internal error code, the safest and most cost-effective next step is to request a free estimate from a qualified technician who can test the board's voltage directly.

Power Outages and System Resets: Clearing False Codes

Sometimes, a flashing wall console isn't the result of a broken part, but rather a scrambled digital memory. Following a severe thunderstorm or a neighborhood power outage in the local area, our team typically sees a spike in service calls because the sudden loss and subsequent surge of electricity can confuse the opener's microprocessor. When the power is restored, the logic board may boot up improperly, causing the wall console to flash error codes unexpectedly even though the hardware is perfectly fine.

Before assuming you have a dead logic board or a fried sensor, you should perform a hard power reset to clear any false codes from the system's memory. This is a safe, simple procedure that resets the diagnostic blink code counts and allows the logic board to recalibrate.

The Safe Power Reset Procedure

• Disconnect the power: Unplug the garage door opener's power cord directly from the ceiling outlet. Do not simply turn off the wall switch, as you want to ensure zero voltage is reaching the unit.

• Wait for the memory to clear: Leave the unit unplugged for a minimum of five minutes. This allows the internal capacitors to drain any residual charge and forces the logic board to clear its temporary memory cache.

• Restore power and test: Plug the unit back into the ceiling outlet. Wait a moment for the system to boot up, then press the wall console button.

If the door operates normally and the flashing light stops, you successfully cleared a false code caused by a power fluctuation. To prevent this from happening in the future, we highly recommend installing a single-outlet surge protector specifically designed for garage door openers between the ceiling outlet and the opener's power cord.

However, if the blink code returns immediately after a hard reset, you are dealing with a hard fault. The logic board is actively detecting a persistent issue that requires further troubleshooting, not just a software glitch.

Frequently Asked Questions

Why is my garage door opener wall button flashing?
A flashing wall button is your opener's way of communicating a diagnostic error or confirming that a security feature is active. If it flashes continuously, the system is likely in "Lock" or "Vacation" mode, which disables remote controls. If it flashes in a specific, countable pattern, the logic board has detected a hardware fault, most commonly a misaligned safety sensor.

What does a blinking light on a garage door opener mean?
A blinking light on the main overhead unit translates to a specific error code based on the number of flashes. Manufacturers use these codes to tell you exactly what system is failing. For example, a common pattern of one up-arrow flash followed by four down-arrow flashes indicates that the safety reversing sensors are blocked or out of alignment.

How do I reset my garage door opener after a power outage?
To reset your opener after a power outage, unplug the main power cord from the ceiling outlet and wait at least five minutes to allow the logic board to clear its memory. Plug the unit back in and press the wall button to test the door. This hard reset often clears false error codes caused by electrical surges when the power was restored.

How do you fix a garage door sensor that is blinking?
A blinking green light on your receiving safety sensor means it is out of alignment with the sending sensor. To fix this, gently loosen the wingnut on the sensor bracket and pivot the unit by hand until the green light stops flickering and turns solid. Once the light is steady, hand-tighten the nut and test the door to ensure it closes properly.

Does a continuous blinking light on the wall console mean my opener is broken?
No, a continuous, rapid blinking light on the wall console usually means the opener is functioning perfectly but has been placed in a security lock mode. This feature is designed to keep the door securely closed while you are on vacation. You can easily disable this mode by pressing and holding the "Lock" button on the console for a few seconds until the light turns solid.

Can extreme weather cause my garage door opener to flash error codes?
Yes, intense heat, high humidity, and extreme cold can trigger false diagnostic codes. Humidity can cause the glass lenses on the photo-eyes to fog up, breaking the infrared beam, while severe temperature shifts can cause the metal tracks to expand or contract, knocking the sensors out of alignment. Wiping the lenses and checking the bracket alignment usually resolves weather-related sensor codes.

By understanding what these blink codes mean and knowing the difference between a simple sensor adjustment and a complex logic board issue, you can troubleshoot your garage door safely and effectively. If you are ever in doubt, relying on a professional technician from Good Golly Garage Doors ensures your system is repaired correctly, giving you immediate, clear answers and a door that operates smoothly every time you press the button.
