Why Your Garage Door Motor Hums But Refuses to Move

Is That Humming Sound a Simple Jam or a Serious Electrical Failure?

Are you standing in your garage right now, wondering exactly why your garage door motor hums but refuses to move? At Good Golly Garage Doors, our team regularly helps local homeowners resolve this exact frustration. When you press the button on your remote or wall switch, you expect the familiar sound of the motor engaging and the door lifting. Instead, you are met with a continuous, straining electrical drone from the ceiling, and a door that stays firmly planted on the ground. This specific humming noise is a clear diagnostic signal: your opener unit is successfully receiving power from the outlet, but something is physically or electrically preventing the motor from turning.

For a complete diagnostic strategy, exploring your garage door openers options and understanding when to call for professional garage door repair can save you time, frustration, and significant safety risks.

When you hear this straining sound, you are standing at a critical decision point. In our experience, the issue almost always boils down to one of two major culprits. The first is a mechanical lockup, such as a severely jammed residential opener carriage that has become stuck on the rail. The second, and often more dangerous, is a blown starting capacitor inside the motor housing. Knowing how to tell the difference between a simple mechanical bind and a high-voltage electrical failure dictates whether you can perform a safe visual check or if you need immediate professional intervention.

The Direct Diagnosis: What a Humming Motor Actually Means

A humming garage door motor usually means the unit is receiving power but cannot turn. This electrical stall is most commonly caused by a blown starting capacitor that fails to provide the initial power surge, or a motor straining against a mechanical lockup, such as a jammed residential opener carriage.

When an alternating current (AC) motor receives electricity but cannot rotate its internal shaft, the magnetic fields inside continue to push and pull against a stationary rotor. This intense electromagnetic vibration is what creates that loud, unmistakable hum. If left in this state for more than a few seconds, the motor draws excessive current, rapidly generating heat. You must immediately unplug the unit from the ceiling outlet if it continues to hum. Leaving it plugged in while the motor strains will cause it to overheat, which can melt internal wiring and permanently burn out the entire opener system.

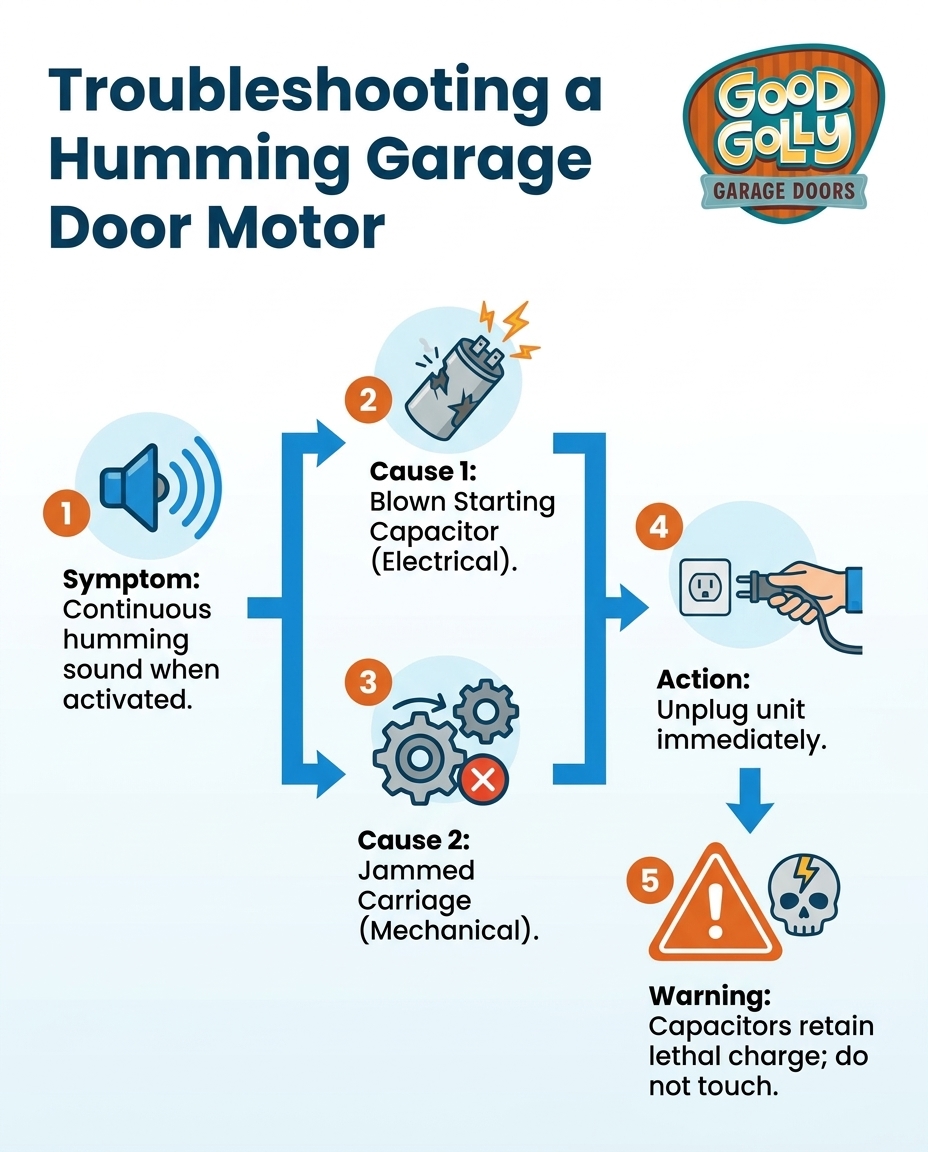

To help you understand what you are dealing with, here is a breakdown of the typical symptoms associated with the two primary causes:

• Loud hum, no movement, burning smell from motor — Likely Cause: Blown Starting Capacitor (Electrical) — Immediate Action Required: Unplug unit immediately. Call a professional.

• Humming, residential opener carriage stuck hard against stop bolt — Likely Cause: Carriage Jam (Mechanical) — Immediate Action Required: Unplug unit. Do not force the carriage.

• Motor hums, heavy door, visible gap in spring above door — Likely Cause: Broken Torsion Spring (Mechanical) — Immediate Action Required: Leave door closed. Do not attempt to lift.

• Motor hums, chain/belt sags slightly but doesn't move — Likely Cause: Stripped Internal Gears (Mechanical) — Immediate Action Required: Unplug unit. Gear assembly requires replacement.

Electrical Lockups: The Role of the Starting Capacitor

If you have ruled out obvious physical obstructions, the most common reason for a humming motor is a failed starting capacitor. To understand why this happens, you have to understand how heavy your garage door actually is, and what it takes to get it moving. A standard residential garage door can weigh anywhere from 130 to over 300 pounds. While the overhead springs counterbalance most of that weight, the motor still needs a massive, instantaneous burst of torque to overcome inertia and start the lifting process.

This is where the starting capacitor comes in. Think of it like a heavy-duty battery that stores a highly concentrated charge of electricity. When you press your remote, the capacitor discharges this stored energy in a fraction of a second, delivering a powerful jolt to the motor windings to jumpstart the rotation. Once the motor is spinning, the standard household current is enough to keep it moving, and the capacitor drops out of the circuit.

However, when the capacitor fails, that vital initial surge never happens. The motor receives the standard 120 volts from your wall outlet, which is enough to power the logic board and create a magnetic field, but not enough torque to actually turn the heavy rotor. The motor simply stalls in place, drawing current and emitting a loud hum. This is a common electrical failure, much like diagnosing a fried logic board, where the unit has power but cannot execute its primary function.

Crucial Safety Warning: Starting capacitors are incredibly dangerous. Because their primary job is to store high-voltage electricity, they can retain a lethal electrical charge for days or even weeks after the garage door opener has been completely unplugged from the ceiling. Never attempt a DIY replacement of a starting capacitor. Touching the wrong terminals can result in severe electrocution. This is strictly a job for a licensed professional who knows how to safely discharge the component before removal.

How Extreme Temperatures Fry Opener Electronics

Why do starting capacitors fail in the first place? While simple age and wear and tear play a role, our technicians at Good Golly Garage Doors can confirm that the primary killer of garage door opener electronics is environmental stress. In our years of servicing the local area, we've seen firsthand how the intense Phoenix summer heat creates an operating environment that pushes standard electrical components far beyond their engineered thermal limits.

Most residential garage door openers are designed to operate in ambient temperatures up to about 104°F to 120°F. However, in an enclosed, uninsulated garage during a peak heatwave, ambient temperatures near the ceiling—exactly where your motor is mounted—can easily exceed 130 to 140 degrees Fahrenheit. This extreme heat wreaks havoc on sensitive electronics.

The Heat Degradation Cycle

1. Heat Absorption: The black plastic casing of the opener motor absorbs the ambient heat from the garage ceiling, raising the internal temperature of the unit before the motor even runs.

2. Fluid Expansion: Starting capacitors contain an electrolytic fluid or paste that acts as an insulator and charge carrier. Under extreme Phoenix summer heat, this fluid begins to expand rapidly.

3. Venting and Leaking: As the pressure builds inside the small aluminum or plastic cylinder of the capacitor, the seal can rupture. The fluid may leak out, or the top of the capacitor may visibly bulge and swell.

4. Dielectric Breakdown: Once the fluid has vented or dried out due to the heat, the capacitor loses its ability to store and discharge electricity. The next time you press the button, the motor receives no starting torque, resulting in the dreaded hum.

This localized climate factor makes capacitor blowouts incredibly common during the hotter months. If your motor ran perfectly in March but suddenly hums and refuses to move in late July, heat-induced electrical failure is a primary suspect.

Mechanical Jams: Inspecting the Residential Opener Carriage

If the electrical components are intact, the humming sound means the motor is trying its hardest to turn, but it is fighting against an immovable physical object. A pattern we see often during our repair visits is a mechanical lockup occurring at the residential opener carriage (sometimes called the trolley). This is the mechanism that travels back and forth along the metal rail, connecting the opener's drive system (the belt, chain, or screw) to the J-arm that pulls the door up.

Extreme heat doesn't just damage electronics; it also destroys mechanical lubrication. As temperatures soar, the grease on the opener rail and inside the carriage can bake off, dry out, or turn into a sticky, abrasive paste. Without proper lubrication, the metal-on-metal friction becomes so severe that the carriage seizes on the track. The motor attempts to pull the carriage, hits this wall of friction, stalls, and hums.

Another common carriage issue is the "stop bolt jam." If the internal limit switches (which tell the motor when to stop pulling) fail, the motor may pull the carriage too far back, wedging it forcefully against the safety stop bolt near the motor head. The carriage becomes completely wedged. When you try to close the door, the motor hums because it lacks the power to un-wedge the tightly bound carriage.

How to Safely Check for a Carriage Jam

You can perform a safe diagnostic check to see if the carriage or the door itself is the problem:

• Ensure the door is fully closed. Never pull the release cord when the door is open, as a broken spring could cause it to crash down violently.

• Pull the emergency release cord. This is the red rope hanging from the residential opener carriage. Pulling it down and back disconnects the carriage from the door's lifting arm.

• Test the door manually. Attempt to lift the door by hand. If it is extremely heavy or won't budge, your problem is with the door's hardware (like a broken spring or jammed track), not the opener motor.

• Test the motor independently. With the door disconnected, press the remote. If the motor runs smoothly and the carriage travels down the rail, the motor is fine, but the door was causing a mechanical bind. If the motor *still* just hums while disconnected from the door, you have an internal motor issue or a fried capacitor.

Other Hidden Mechanical Culprits That Stall the Motor

While the capacitor and the carriage are the most common offenders, our team occasionally encounters a few other hidden mechanical failures that can force your motor into a humming stall. Keeping up with routine garage door maintenance is the best way to prevent these secondary issues from stressing your opener system to the point of failure.

• Broken Torsion Springs: The motor is not designed to lift the full dead weight of your garage door; it only provides the initial push and pull, while the heavy-duty torsion springs do the actual heavy lifting. If a spring snaps (often accompanied by a loud gunshot-like bang), the door becomes dead weight. The motor will try to lift 200 pounds of unassisted steel, fail instantly, and emit a straining hum.

• Stripped Internal Nylon Gears: Inside many chain and belt-drive motors is a white nylon gear assembly. Over time, or due to heavy friction from a lack of lubrication, the teeth on these nylon gears can completely shear off. When you press the button, the motor turns and hums, but because the gears are stripped, that rotational energy never transfers to the chain or belt. The motor spins internally, but nothing moves externally.

• Track Obstructions and Sensor Halts: A physical blockage in the vertical or horizontal tracks (like a bent track lip, a loose bolt, or a broom handle fallen against the rail) can physically stop the door's travel. The motor pulls against the obstruction, senses the heavy resistance, and either reverses or stalls out with a hum.

Safe Visual Inspections vs. Dangerous DIY Repairs

When dealing with a humming opener motor, drawing a strict line between what you can safely inspect and what requires professional intervention is vital for your safety and the longevity of your equipment.

What is safe for a homeowner: Pulling the red emergency release cord to disconnect the door, visually inspecting the residential opener carriage for obvious jams against the stop bolt, checking the tracks for physical debris, and looking at the torsion springs above the door to see if there is a visible gap indicating a break. These are all safe, hands-off visual diagnostics.

What is highly dangerous: Removing the plastic housing from the motor head, probing the internal logic board, attempting to un-wedge a tightly bound carriage with tools while the unit is plugged in, and absolutely any interaction with the starting capacitor. Online DIY tutorials frequently downplay the severe electrocution risks associated with motor capacitors. Even if you have unplugged the unit, that component remains highly charged.

This is where local expertise matters. Relying on professional Phoenix garage door service from the experienced team at Good Golly Garage Doors ensures that dangerous high-voltage electrical lockups are handled with the correct diagnostic tools and safety protocols. A trained technician can safely discharge a heat-fried capacitor, replace it with an OEM-rated component, and recalibrate the travel limits so your carriage doesn't jam again.

Frequently Asked Questions About Humming Garage Door Openers

Why is my garage door opener just humming?

A humming opener indicates the motor is receiving electricity but is unable to physically turn its internal shaft. This is usually due to a blown starting capacitor failing to provide a necessary power surge, or a severe mechanical jam preventing movement. The humming sound is the electromagnetic field straining against a stationary rotor. You should unplug the unit immediately to prevent the motor from overheating.

How do you know if your garage door opener capacitor is bad?

The most common sign is a loud hum when activated, accompanied by a motor that won't spin, even when disconnected from the heavy door. Visually (and strictly without touching), a bad capacitor may look swollen, bulging at the seams, or have an oily residue leaking from its plastic casing. Extreme Phoenix summer heat frequently accelerates this degradation, causing the internal fluids to expand and vent.

How do I fix a humming garage door motor?

First, unplug the unit from the ceiling outlet to prevent the motor from burning out due to thermal overload. Next, pull the emergency release cord to disconnect the residential opener carriage from the door to see if a mechanical jam is the cause. If the door moves freely by hand but the motor still just hums when activated, it is highly likely an electrical issue, and a professional must be called to replace the capacitor safely.

Can a bad capacitor cause a garage door opener to hum?

Yes, this is the most frequent electrical cause of a humming opener motor. The starting capacitor acts like a battery that provides a massive initial jolt of energy to jumpstart the motor's rotation. Without the capacitor's energy burst, the motor lacks the torque to begin rotating, resulting in a continuous electrical hum as it draws standard wall current without moving.

Will a garage door motor overheat if it keeps humming?

Yes, if left engaged while humming, the motor will rapidly overheat. Because the rotor isn't spinning, the electrical energy converts directly into heat rather than mechanical motion. Many modern units have internal thermal overload protectors that will eventually trip and shut the motor down, but continuous strain before that trip happens can cause permanent, irreversible damage to the internal wiring.

Is it safe to replace a garage door opener capacitor myself?

No, starting capacitors store high-voltage electricity and can deliver a lethal shock even when the opener has been completely unplugged from the wall. They are designed to hold a massive charge for extended periods. Always hire a licensed professional who has the specialized tools to safely discharge the capacitor before attempting any internal electrical repairs on your opener motor.

Get Safe, Expert Diagnostics for Your Humming Opener Motor

A garage door motor that hums but refuses to move is more than just an inconvenience; it is a clear warning sign of a locked residential opener carriage or a dangerous electrical failure. Whether extreme heat has baked your starting capacitor or dried out your rail lubrication, leaving a humming motor plugged in will quickly lead to permanent burnout.

Never risk your safety by attempting to handle high-voltage components or force a tightly jammed mechanical system. If your opener is stalling out, you need accurate, fast diagnostics to restore your home's access safely. Reach out to the experts at Good Golly Garage Doors for professional inspection and repair to get your system running smoothly and quietly once again.
