Ultimate Checklist for Understanding Garage Door Balance and Why It Matters

Why Garage Door Balance Matters in Las Vegas, NV

A garage door can weigh 130 to 400 pounds, but its springs should offset nearly all that weight. Garage door balance is the match between the door's weight and the lifting force from its counterbalance system. When it is balanced, the door moves smoothly and stays near the position where you stop it. When it is not, the door may feel heavy, drift, slam shut, rise on its own, or tilt. For homeowners who need garage door service in Las Vegas, NV, proper balance helps protect people, the opener, and the door's moving parts.

Learn More About Garage Door Repair | Schedule Garage Door Service

The opener is designed to guide a balanced door, not carry its full weight. Worn springs, uneven cables, heat, dust, and normal use can all affect balance over time. A simple manual balance check can reveal a problem, but spring and cable adjustments should always be left to a professional because these parts are under high tension.

I am Jason Henderson, founder and CEO of Good Golly Garage Doors, and my work in home services has taught me why understanding what is garage door balance and why does it matter helps homeowners make safer, smarter decisions. If your door is straining, uneven, or hard to lift, schedule service with Good Golly Garage Doors.

What Is Garage Door Balance and Why Does It Matter for Your Home?

At its core, garage door balance represents a state of mechanical equilibrium. A standard residential garage door is the heaviest moving object in any home, weighing anywhere from 130 to 400 pounds depending on whether it is a lightweight single-car panel or a heavy, insulated double-wide steel carriage door. Despite this substantial mass, a properly balanced system allows you to lift the entire assembly using just one hand, feeling like no more than 8 to 15 pounds in your grip.

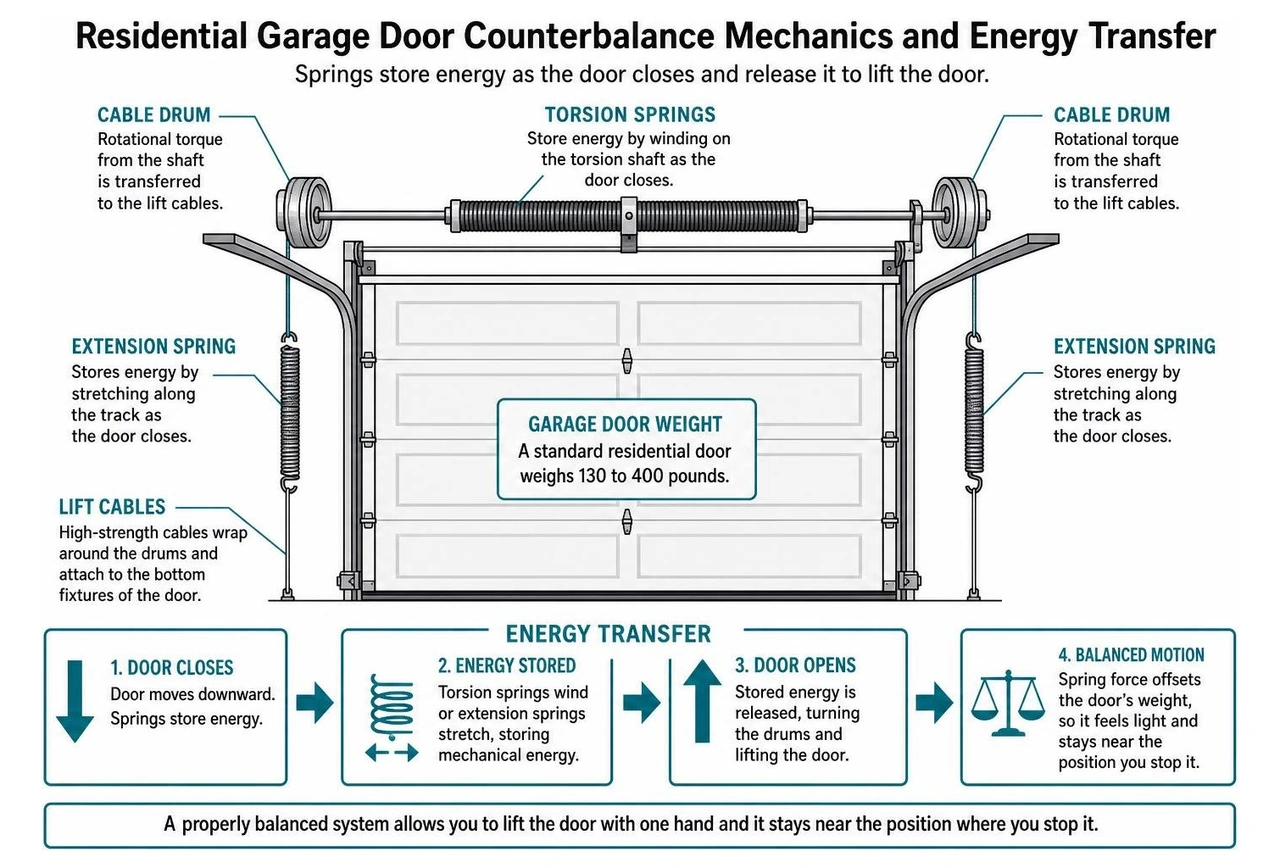

This apparent weightlessness is made possible by the counterbalance system. The system works through a precise exchange of gravitational potential energy and stored mechanical tension:

• Torsion Springs: Mounted horizontally on a metal torsion shaft directly above the closed door opening, these springs store mechanical potential energy by tightly winding during the door's downward travel. A standard residential torsion spring absorbs approximately 800 foot-pounds of torsional stress every time the door closes, storing roughly 236 foot-pounds of energy at full wind to assist the upward lift.
• Extension Springs: Mounted above the horizontal upper tracks on either side of the door, these springs store potential energy by physically stretching along the tracks as the door lowers, releasing that energy to pull the door upward when opened.
• Lift Cables and Drums: High-strength aircraft cables wrap around grooved aluminum drums located at both ends of the torsion shaft, transferring the stored rotational torque directly to the bottom fixtures of the door panel assembly.

When the upward pulling force engineered into the spring assembly matches the downward gravitational pull of the door panels across every inch of travel, the door is in balance.

What Is Garage Door Balance and Why Does It Matter for Daily Safety?

A malfunctioning counterbalance system is a major safety hazard for your family and pets. According to national safety data, overhead garage doors cause approximately 30,000 injuries annually, with a significant portion stemming from unbalanced assemblies, sudden structural drops, or worn tension components.

When a counterbalance system fails or loses tension, the heavy door essentially turns into an unassisted falling guillotine. An electric opener's safety reverse system or auto-stop mechanism may struggle to catch an undersprung door that drops under its own deadweight.

The Door & Access Systems Manufacturers Association (DASMA) establishes strict safety protocols (such as ANSI/DASMA 102 and 103 standards) regarding components under extreme counterbalance tension. High-tension fasteners and brackets are critical structural components engineered to hold extreme mechanical energy. If an unbalanced door snaps a cable or breaks a fatigued spring, that potential energy is released rapidly.

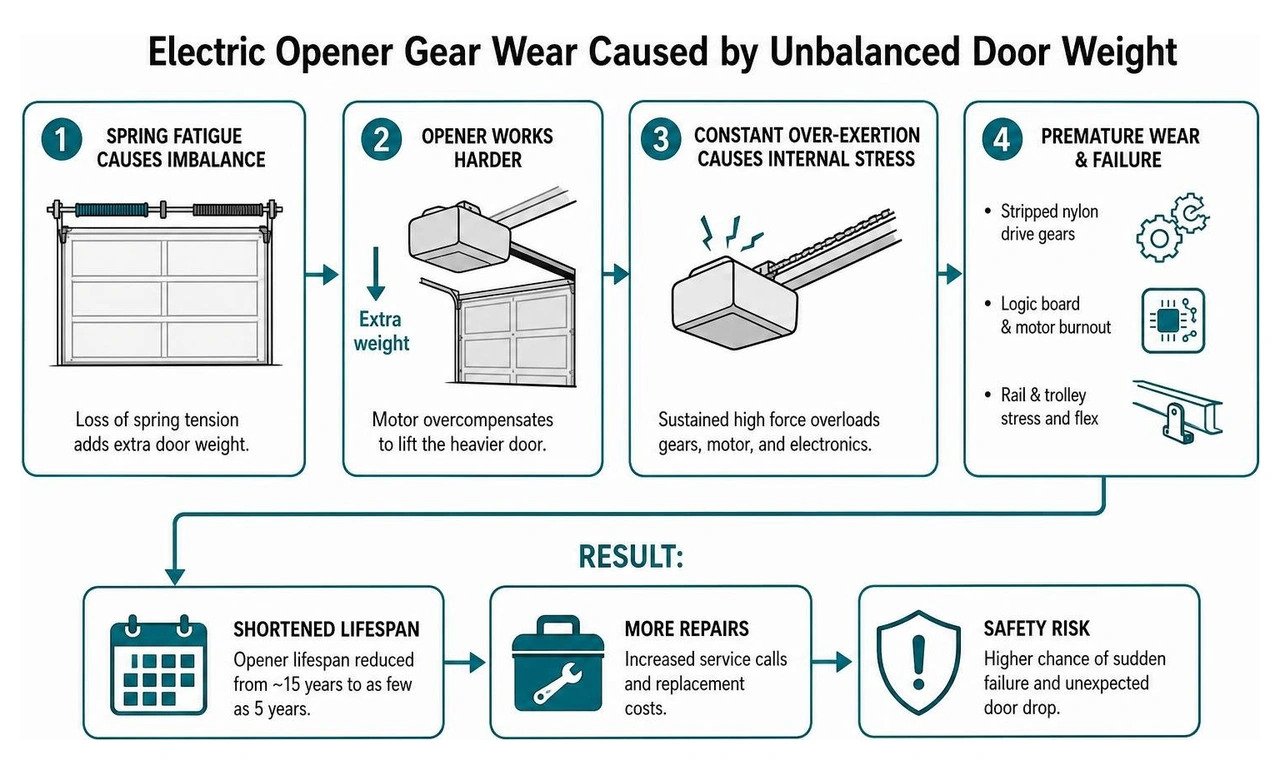

What Is Garage Door Balance and Why Does It Matter for Opener Lifespan?

One of the most common misconceptions among homeowners is that the electric garage door opener lifts the heavy door. In reality, a standard 1/2-horsepower or 3/4-horsepower opener motor produces modest mechanical torque. It is designed merely to guide, initiate, and control the travel of an already balanced door.

When a door loses balance by just 20 pounds due to spring fatigue, the electric opener must deadlift that extra deadweight on every cycle. Modern automated systems feature internal logic boards that automatically compensate for resistance, which can temporarily mask spring fatigue by pushing the motor beyond its rated workload.

This constant over-exertion causes severe internal damage:

1. Stripping Nylon Drive Gears: Most residential overhead openers utilize internal nylon drive gears to transfer motor power to the drive belt, chain, or screw. Overloading these components strips the plastic teeth, causing the motor to spin freely while the door remains motionless on the floor.
2. Logic Board and Motor Burnout: Operating at sustained peak electrical draws overheats the motor windings and fries internal circuit boards, reducing an opener's lifespan from a standard 15 years down to as few as 5 years.
3. Trolley Carriage and Rail Flexing: Pulling an unbalanced load causes the opener rail to bow upward and stresses the trolley connection, which can eventually crack the top garage door panel.

Keeping your system balanced protects your motorized investment. If your opener groans, hesitates, or reverses unexpectedly, explore our dedicated garage door opener services before internal gears suffer permanent mechanical failure.

Step-by-Step Balance Testing for Homeowners

Regular balance checks allow homeowners to identify early warning signs of spring fatigue before severe hardware damage occurs. You can evaluate your system's balance in less than two minutes using a safe, non-technical diagnostic test.

Follow these steps to safely check your garage door's mechanical balance:

1. Close the Door Completely: Always begin the test with the garage door fully closed and resting flat against the garage floor. This ensures the springs are not holding full open-travel kinetic forces and eliminates any risk of the door dropping while you disconnect the motor.
2. Disengage the Automatic Opener: Pull the red emergency release cord downward and back toward the motor to disconnect the door carriage from the opener track trolley. This puts the door into fully manual operation.
3. Perform the Manual Lift Check: Grip the lift handle or the bottom section of the door using both hands. Lift the door smoothly along its vertical tracks. It should roll freely without scraping, catching, or requiring significant physical effort.
4. Test the Midpoint Hover (The 3-to-4-Foot Test): Raise the door to roughly waist height—between 3 and 4 feet off the ground (around the halfway point of its total travel)—and gently release your grip while keeping your hands an inch away for safety.
5. Observe the Door's Resting Behavior: Watch the door for 10 to 15 seconds. A properly balanced door will hover steadily in place, supported entirely by the counterforce of its spring system, drifting no more than an inch or two in either direction.
6. Reconnect the Opener: Close the door completely and pull the emergency release cord toward the door opening, or run the electric opener until the trolley clicks back into the carriage track.

Interpreting Your Balance Test Results

Your door's behavior during the midpoint hover test provides clear insight into the health of your counterbalance assembly:

• The Door Stays Put: If the door remains suspended around 3 to 4 feet off the floor with minimal drift, your springs are properly calibrated and generating the exact counterforce required for your door's physical weight.
• The Door Drifts or Slams Downward: If the door sinks or crashes to the floor, your system is undersprung. This means the springs have suffered metal fatigue, lost elasticity, or were undersized from the start. This places heavy deadweight strain on your opener motor.
• The Door Shoots or Snaps Upward: If the door pulls strongly out of your hands and rolls open toward the ceiling, your system is oversprung. This indicates over-wound springs or incorrect spring sizing, which forces the opener motor to fight upward tension during the closing cycle.
• The Door Tilts or Binds Asymmetrically: If one side of the door sits noticeably higher than the other during travel, you are experiencing unequal left-to-right cable tension, drum slippage, or track misalignment.

Primary Causes of System Imbalance and Hardware Damage

Garage doors lose balance gradually over hundreds of operational cycles. Understanding the common causes of imbalance helps homeowners address early wear before experiencing a broken spring or an off-track door.

Standard residential counterbalance springs are rated for approximately 10,000 cycles—with one cycle representing a full opening and closing sequence. For an active household operating the door 3 to 4 times a day, 10,000 cycles translates to roughly 7 to 10 years of reliable service life.

Over time, several factors disrupt balance:

• Spring Metal Fatigue: Every time your door closes, the spring steel absorbs intense torsional force. Over thousands of cycles, the steel loses its molecular elasticity, gradually delivering less lifting torque until it cannot support the door's physical weight.
• Asymmetric Cable Stretch: The galvanized steel aircraft cables supporting your door must carry identical tension. If one cable stretches, slips on its drum, or begins fraying, the door lifts unevenly.
• Added Panel Weight: Homeowners often inadvertently alter their door's physical balance by applying multiple coats of heavy exterior paint, adding aftermarket insulation panels, or installing heavy decorative hardware without recalibrating spring tension.
• Incorrect Initial Spring Sizing: Over 30 different wire sizes, inner diameters, and spring lengths exist across residential configurations. If an installer previously mounted an unmatched spring size, the system will never achieve true mechanical equilibrium.

If your system shows signs of uneven tension or spring wear, contact our skilled technicians for reliable garage door repair in Las Vegas to restore safe, factory-calibrated balance.

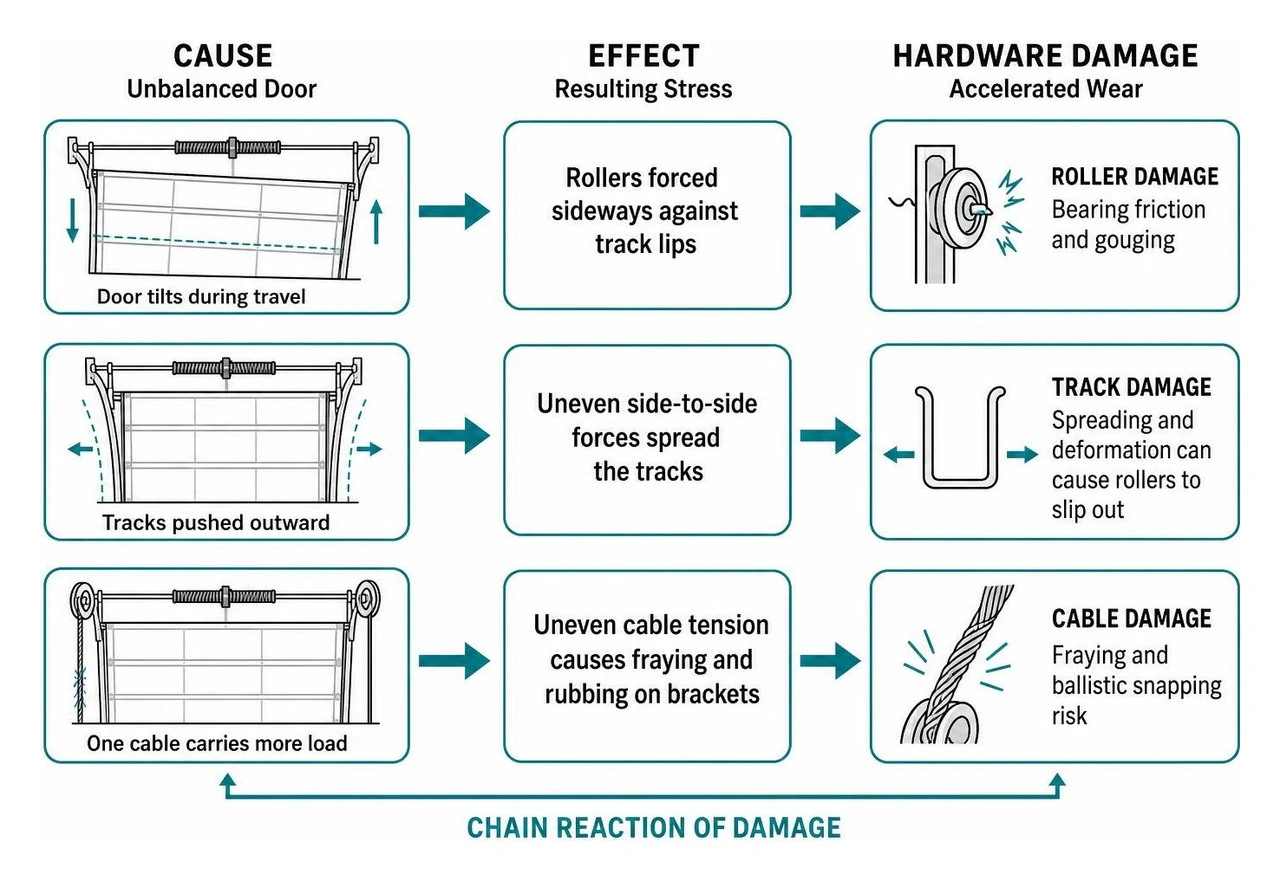

How Imbalance Damages Tracks, Rollers, and Cables

Operating an unbalanced garage door creates a destructive mechanical chain reaction throughout the entire support framework. The damage rarely stays isolated to the springs.

When balance fails, the surrounding hardware experiences severe accelerated wear:

1. Roller Bearing Friction and Gouging: When an unbalanced door tilts, the steel or nylon rollers are forced sideways against the steel track lips. This lateral thrust quickly destroys the internal ball bearings, causing rollers to skid, flat-spot, and screech.
2. Track Spreading and Deformation: The uneven side-to-side forces generated by a crooked door push the vertical and horizontal tracks outward. This spreading can cause the rollers to slip out of the tracks entirely, leaving the door hanging precariously.
3. Cable Fraying and Ballistic Snapping: When one cable carries more load than the other, the strands stretch unevenly and rub against the track brackets. A single year of operating an unbalanced door can consume 2 to 3 years of cable life, increasing the risk of unexpected cable failure.
4. Panel Racking and Hinge Fatigue: An unbalanced door flexes and twists during travel. This structural racking loosens the intermediate panel hinges, pulls mounting screws from the steel or aluminum skins, and permanently bends the door sections.

Protecting Counterbalance Systems in Desert Climates

In Southern Nevada, our unique climate conditions create specific challenges for residential garage door assemblies. High summer temperatures, extreme thermal swings, intense sun exposure, and airborne dust throughout the Las Vegas Valley accelerate hardware wear and affect system balance.

During peak summer months, garage interiors across Las Vegas, Henderson, and Summerlin routinely reach temperatures well above 120°F. This intense heat causes thermal expansion across steel components, alters the molecular behavior of spring steel, and rapidly bakes away standard lubricants. Conversely, rapid temperature drops between summer highs and winter desert cold snaps cause the metal to contract, exposing late-stage spring fatigue and making doors feel heavier.

Furthermore, fine desert dust and airborne sand settle directly onto the oily coils of torsion springs and inside vertical track channels. When mixed with improper lubricants like standard WD-40 or heavy grease, this dust forms an abrasive paste that grinds down roller bearings and increases friction.

To protect your system in desert environments:

• Use Proper Silicone Lubricants: Apply a dedicated high-grade silicone or white lithium spray to torsion springs, roller bearings, and hinges twice a year. Never use degreasers or WD-40, which strip away protective coatings.
• Keep Tracks Clean and Dry: Wipe the inside channels of your tracks with a clean, dry microfiber cloth to clear away desert grit. Avoid lubricating the track interiors, as grease attracts dust and causes rollers to slip rather than roll.
• Monitor Post-Storm Balance: Check your door's manual balance after major dust storms or severe canyon wind events, which can shift track alignment or blow debris into cable drums.
• Schedule Routine Professional Inspections: Regular tune-ups ensure spring tension is calibrated to handle seasonal temperature swings while keeping safety cables, drums, and end bearing plates properly aligned.

Our dedicated garage door maintenance service is specifically tailored to protect Southern Nevada homes from desert wear, keeping your system running smoothly and quietly year-round.

Frequently Asked Questions About Garage Door Balance

How often should garage door balance be tested?

You should test your garage door's balance at least twice a year. We recommend pairing your manual balance test with seasonal clock changes in the spring and fall. Additionally, perform a quick manual balance check anytime your electric opener sounds like it is straining, if the door makes unusual squeaking or grinding noises, or immediately following severe seasonal temperature swings.

What does it mean if the garage door falls shut when released?

If your garage door falls or crashes to the floor during the midpoint hover test, it indicates an undersprung condition. This means your counterbalance springs have lost their mechanical tension due to cycle fatigue, the steel coils have stretched, or one of the springs in a dual-spring setup has broken. An undersprung door should be inspected by a professional immediately to prevent your automatic opener from burning out or stripping its drive gears.

Why does a garage door feel heavier in extreme temperatures?

Garage doors often feel heavier during sudden cold snaps because metal contracts as temperatures drop, reducing the natural elasticity and torsional flexibility of the spring steel. In warm desert summers, thermal expansion slightly loosens spring tension. If your springs are already approaching the end of their 10,000-cycle lifespan, these temperature-induced changes can push a borderline spring system out of balance, exposing the fatigue that mild weather masked.

Reliable Garage Door Balance and Service in Las Vegas

Maintaining proper garage door balance is essential for the safety, efficiency, and longevity of your entire overhead system. A well-balanced door protects your opener from motor burnout, prevents costly hardware damage across tracks and cables, and ensures your family is protected against sudden structural drops.

At Good Golly Garage Doors, we are proud to be a licensed, family-owned garage door company serving homeowners across Las Vegas, NV, including Summerlin, Henderson, North Las Vegas, Sun City, and Boulder City. Our skilled, trusted local technicians deliver dependable workmanship, quick response times, and comprehensive safety inspections to ensure your garage door operates smoothly, quietly, and reliably.

Whether your door feels heavy, makes unusual noises, or failed its manual balance test, our team is here to help with professional repairs, precision spring replacements, opener upgrades, and regular maintenance.

Schedule Service in Las Vegas with Good Golly Garage Doors today to ensure your garage door system is safely balanced and built to last.
