Strut-Reinforced vs Standard Garage Door Panels for Wide Dallas Garages

The Hidden Danger of Sagging: When Standard Panels Fail

A common myth among homeowners we serve is that any replacement panel will work for any width, but when evaluating Strut-Reinforced vs Standard Garage Door Panels for Wide Dallas Garages, the rules of physics change completely. At Good Golly Garage Doors, we frequently encounter customers who assume that a standard metal panel is rigid enough to span across a two-car garage without issue. The reality is that double-wide doors face immense gravitational stress that single doors simply do not experience. Without proper reinforcement, you are left dealing with the concrete problem of unreinforced panels bowing, cracking, or sagging in the middle under their own weight. This leaves homeowners facing a critical decision point: choosing whether to upgrade to strut-reinforced panels or stick with standard panels when replacing a wide door.

For professional garage door services and expert garage door installation, our team ensures your entire system is properly reinforced, perfectly balanced, and built to withstand the test of time.

The Reality of Gravitational Stress on Double Doors

When you look at a standard eight-foot single door, the metal panels are short enough to maintain their structural integrity without much help. However, when you extend that exact same material across 16-foot double-wide panels, the structural dynamics shift dramatically. The center of the door is no longer supported by the outer tracks, leaving a massive expanse of metal suspended in the air. Over time, the constant downward pull of gravity finds the weakest point—usually the dead center of the top and middle panels. What starts as a nearly invisible micro-flex eventually becomes a permanent, visible crease in the metal.

The warning signs of panel failure include:

• Visible center sagging: A distinct dip in the middle of the door when it is partially or fully open.

• Popping or groaning sounds: The metal actually protesting as it bends during operation.

• Gaps at the bottom seal: Light showing through the center of the bottom weather seal when the door is closed, indicating the panels have permanently bowed upward.

The Physics of Center Deflection on Wide Spans

To understand why standard panels fail on wide garages, you have to look at the sheer weight involved in the assembly. A standard 16x7 steel garage door weighs anywhere from 150 to over 250 pounds, depending on the gauge of the steel and the insulation used. Gravity acts constantly on the unsupported center span, especially when the door is in the open, horizontal position. In this state, the door is essentially acting like a bridge with no middle support columns. Without horizontal reinforcement, the center becomes highly susceptible to deflection—the engineering term for bending or sagging under a load.

Understanding the 12-Foot Threshold

The industry does not treat all door widths equally. DASMA (the Door & Access Systems Manufacturers Association) sets rigorous standards for structural integrity, and their guidelines highlight the strict limits of unsupported spans exceeding 12 feet. Once a door surpasses this 12-foot threshold, the natural rigidity of rolled steel or aluminum is no longer enough to fight off gravity.

When 16-foot double-wide panels sit open for hours while you work in the yard or wash the car, the metal is subjected to prolonged horizontal stress. The molecules in the unreinforced steel begin to fatigue. Over months and years of cycling up and down, this fatigue weakens the center point. Once the metal yields and takes on a permanent bend, the structural integrity of that panel is compromised forever. No amount of track adjustment can fix a panel that has lost its internal rigidity.

How Extreme Texas Heat Accelerates Panel Warping

Gravity is not the only force working against a wide garage door. The intense regional climate plays a massive role in material degradation. Metal expands and contracts with temperature fluctuations, and frequent 100-plus degree days cause severe thermal expansion. This expansion dramatically accelerates material warping, turning a minor structural weakness into a major functional failure.

The Science of Thermal Bowing

Thermal bowing is a specific phenomenon that occurs when the exterior face of the garage door panel heats up and expands significantly faster than the interior face. During a brutal summer afternoon, the outside of a dark-colored steel door can easily reach temperatures far exceeding the ambient air. Meanwhile, the interior side of the door, shaded inside the garage, remains much cooler. This massive temperature differential forces the exterior metal to expand, pushing the center of the door outward while the edges remain locked in the tracks.

Unreinforced panels completely lack the rigidity to resist this temperature-induced distortion. As the metal flexes outward day after day, the panels permanently lose their shape. For homeowners relying on our Dallas garage door experts to maintain their homes, understanding this climate-specific vulnerability is critical. In our years of replacing warped doors across the local area, we've seen firsthand how the combination of the Dallas metro area heat baking the exterior and gravity pulling on the horizontal span creates a perfect storm for panel failure.

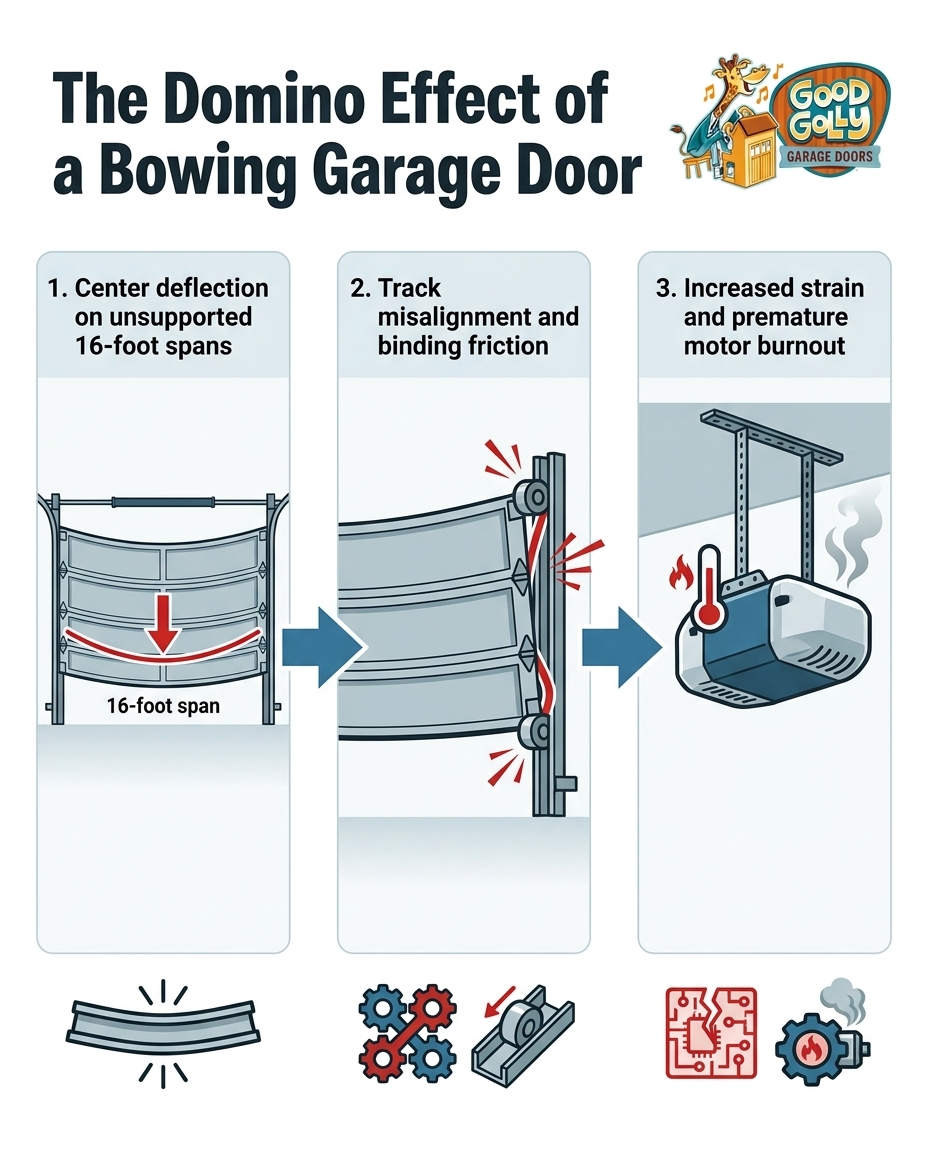

Cascading Failures: When a Bowing Door Ruins Your System

A sagging garage door is not just a cosmetic issue; it is a mechanical hazard that triggers a chain reaction of secondary failures throughout the entire operating system. When standard panels bow in the middle, they alter the physical dimensions of the door. The edges of the panels are pulled inward, fundamentally changing the trajectory of the door as it moves through the tracks. This misalignment leads to severe track binding and scraping, transforming a smooth operation into a grinding, jarring struggle.

The Domino Effect on Your Opener

The Problem: The center of the 16-foot double-wide panels sags, pulling the outer hinges out of their ideal alignment.
The Cause: As the door travels upward, the misaligned rollers scrape aggressively against the steel tracks, creating immense friction. The door is no longer gliding; it is dragging.
The Solution: The opener motor is forced to work against this massive increase in friction. Most residential openers are designed to guide a perfectly balanced door, not to drag a binding piece of warped metal. This constant strain leads to premature motor burnout, stripped gears, and snapped drive belts. Addressing these cascading issues requires extensive mechanical intervention, often requiring comprehensive garage door repair that goes far beyond just swapping out the damaged panels. Our repair technicians consistently see this domino effect turn a minor sag into a major system overhaul.

The Engineering Behind Strut-Reinforced Panels

The solution to center deflection and thermal bowing lies in structural engineering. Strut-reinforced panels utilize horizontal U-shaped steel struts that are securely fastened across the interior width of the door sections. These struts are not just metal bars; their specific U-shape provides incredible torsional rigidity, acting as a rigid backbone for the entire door.

How Horizontal Struts Transform Door Physics

When struts are applied to 16-foot double-wide panels, they completely change how the door handles stress. The reinforcement distributes the door's weight evenly across the entire 16-foot span, rather than allowing it to concentrate in the unsupported center. This engineering approach is highly effective for several reasons:

1. Gravity Resistance: When the door is open and horizontal, the struts prevent gravity-induced sagging by holding the panels perfectly flat.

2. Wind Load Defense: When the door is closed, the struts prevent wind-induced flexing, keeping the door from buckling inward during severe storms.

3. Thermal Stability: The rigid backbone fights against thermal bowing, forcing the metal to expand uniformly rather than warping in the center.

Just as heavy custom materials require structural forethought to prevent failure—similar to the reinforcements needed for modern faux-wood garage doors—wide steel spans demand this level of engineering to survive daily operation.

Side-by-Side Comparison: Standard vs. Reinforced Panels

For homeowners making a long-term purchasing decision, seeing the direct differences between the two options makes the choice clear. Standard panels may save a fraction of the weight initially, but they fail to provide the structural support necessary for a wide span in the Dallas metro area.

Interpreting the Comparison for Wide Garages

• Lifespan and Durability — Standard Garage Door Panels: Warp and crease quickly on wide spans; highly prone to permanent sagging. — Strut-Reinforced Panels: Maintain their rigid shape for decades; highly resistant to bending and creasing.

• System Wear — Standard Garage Door Panels: Causes track binding, roller damage, and severe opener strain due to misalignment. — Strut-Reinforced Panels: Ensures smooth, low-friction operation, extending the life of the opener and rollers.

• Weather Resistance — Standard Garage Door Panels: Vulnerable to thermal bowing and wind flexing during extreme weather. — Strut-Reinforced Panels: Resists heat-induced warping and provides superior defense against high winds.

• Application Suitability — Standard Garage Door Panels: Ideal for single doors (8-9 feet wide) where spans are short. — Strut-Reinforced Panels: Mandatory for double doors (16 feet wide) to ensure safe, reliable operation.

The data clearly shows that standard panels are a false economy when applied to double-wide doors. The initial lack of reinforcement inevitably leads to expensive secondary repairs and premature replacement.

Why Reinforcement Requires a Full System Evaluation

While adding struts is the definitive solution for wide doors, it is not a simple DIY upgrade. Struts are made of heavy-gauge steel, and they add significant dead weight to the garage door assembly. A single 16-foot strut can add several pounds, and a fully reinforced door may weigh 30 to 50 pounds more than an unreinforced version. This shift in weight fundamentally changes the physics of the entire lifting system.

The Critical Role of Torsion Springs

Existing torsion springs are precisely calibrated for a specific door weight. If you add struts without changing the springs, you create a dangerous imbalance. The springs will no longer have the stored energy required to lift the heavier door, meaning the opener motor will have to dead-lift the extra weight. In our experience, skipping this step is a guaranteed recipe for a stripped opener gear or a snapped drive mechanism.

A heavier door requires a comprehensive check of the tracks, the roller bearings, and the opener horsepower. Good Golly Garage Doors provides expert structural evaluations for double-wide installations, ensuring heavy doors are properly reinforced and springs are perfectly matched for longevity. Professional structural evaluations are absolutely critical to ensure the entire system safely supports the reinforced 16-foot double-wide panels without putting your family or your property at risk.

Protecting Your Home with the Right Structural Support

When evaluating your options in the Dallas metro area, our team at Good Golly Garage Doors knows the science is undeniable: a 16-foot span is simply too wide to rely on standard, unreinforced panels. The constant pull of gravity and the extreme summer heat will inevitably cause standard panels to bow, leading to a cascade of mechanical failures.

Investing in strut-reinforced panels is the only proven way to prevent premature motor burnout, center sagging, and severe track damage. By choosing a door with a rigid steel backbone, you ensure your system operates safely, smoothly, and quietly for years to come. We are here to help you weigh your options, evaluate your garage's specific structural needs, and deliver a professionally balanced system that gives you total peace of mind.

Frequently Asked Questions

Why is my double garage door sagging in the middle?

A double garage door usually sags because it lacks the horizontal strut reinforcement needed to support its own weight across a wide span. Over time, gravity pulls down on the unsupported center when the door is open, causing the metal to fatigue and bend. Extreme heat can also cause the exterior metal to expand faster than the interior, leading to permanent thermal bowing.

Are standard panels enough for a 16-foot garage door?

No, standard unreinforced panels are not sufficient for a 16-foot span. While they work well for single 8-foot doors, the sheer width of a double door requires rigid horizontal support to prevent gravity and wind from bending the metal. Using standard panels on a double-wide door almost always guarantees premature sagging and track binding.

What happens if my garage door bows?

When a garage door bows, it pulls the outer edges inward, causing the rollers to grind against the vertical tracks. This severe misalignment creates massive friction that the opener motor has to fight against every time you use the door. Eventually, this constant strain leads to stripped opener gears, burned-out motors, and damaged track hardware.

How many struts does a 16 ft garage door need?

The exact number of struts depends on the weight, material, and specific manufacturer guidelines for your door. Generally, a 16-foot steel door requires at least three to four horizontal struts distributed across the top, middle, and bottom sections to maintain proper rigidity. A professional evaluation is necessary to determine the precise structural requirements for your specific model.

Can you add struts to an existing bowing garage door?

While struts can be added to an existing door to prevent further bending, they cannot magically flatten out metal that has already permanently creased or yielded. If the bowing is very minor, adding a strut might stabilize it, but severely warped panels usually need to be replaced. Additionally, adding struts increases the door's weight, which requires immediate spring recalibration.

Does adding reinforcement struts require new garage door springs?

Yes, adding struts significantly increases the overall dead weight of your garage door. Because torsion springs are calibrated to lift a very specific amount of weight, adding struts without replacing or recalibrating the springs creates a dangerous imbalance. Operating a heavier door on undersized springs will quickly destroy your opener motor and create a serious safety hazard.
