Insulated vs Standard Garage Door: R-Value Comparison Guide

Understanding the Metrics: R-Value vs. U-Value

When it comes to the insulated vs standard garage door r-value comparison, the difference is significant: standard (non-insulated) garage doors have an R-value of essentially R-0, meaning they provide almost no resistance to heat transfer, while insulated doors range from R-6 (polystyrene) all the way up to R-20+ (premium polyurethane). Here's a quick breakdown:

If you have an attached garage or a room above your garage, that gap in R-value directly affects your home's comfort and energy bills — especially in Austin's brutal summer heat.

Here in Central Texas, your garage door is one of the largest openings in your home's exterior. On a scorching Austin afternoon, an uninsulated door lets heat pour straight into your garage — and if that garage shares a wall with your living space, your AC works overtime to compensate. Choosing the right insulation level isn't just a comfort decision; it's a practical one with real financial consequences over the life of your door.

I'm Jason Henderson, founder and CEO of Good Golly Garage Doors, and my background leading service-based businesses has given me a ground-level understanding of how the insulated vs standard garage door r-value comparison plays out in real Central Texas homes. In this guide, I'll cut through the marketing noise and give you a clear, honest picture of what the numbers actually mean for your home.

Essential insulated vs standard garage door r value comparison terms:

• insulated vs non insulated garage door comparison
• insulated vs non insulated garage door for central texas homes

To make an informed decision, we first need to understand the science behind how garage doors handle heat. When you start comparing doors, you will constantly see two terms thrown around: R-value and U-value (sometimes called U-factor). While they sound similar, they measure thermal performance in completely opposite ways, and understanding the difference is key to getting what you actually pay for.

R-value is a measure of thermal resistance. It tells us how well a specific material resists the flow of heat. The higher the R-value, the better the material is at stopping heat from migrating from a warm space to a cold space.

U-value, on the other hand, measures heat transmission—specifically, how much heat flows through a structure. While R-value looks at a single material, U-value looks at the entire picture. The lower the U-value, the more energy-efficient the overall system is.

When you evaluate a garage door, looking at both metrics gives you a complete view of how it will perform in your home. For a deep dive into how these systems work together to protect your home, check out our Insulated Garage Door Guide 2026.

Why R-Value Matters in an Insulated vs Standard Garage Door R-Value Comparison

In any insulated vs standard garage door r-value comparison, R-value serves as the baseline standard because it is simple to understand. If you have a single-layer steel door with no insulation, its R-value is effectively zero. Heat passes through the thin metal skin almost instantly.

When manufacturers add insulation, they introduce a thermal barrier. However, there is a catch: the R-value listed on a garage door brochure is almost always the "center-of-panel" R-value. This number represents the thermal resistance of the insulation material itself at its thickest point. It does not account for the steel skins, the joints between panels, or the hardware.

To learn more about how these material layers function in real-world scenarios, you can read about the Insulated vs Non-Insulated Garage Door Difference.

How U-Value Completes the Insulated vs Standard Garage Door R-Value Comparison

While R-value is a great way to compare the raw insulation power of the materials used, U-value is often the more reliable metric for real-world performance. This is because U-value represents the tested performance of the entire installed door assembly.

A high-quality door with a high R-value can still perform poorly if it is plagued by thermal bridging—where heat bypasses the insulation by traveling through the highly conductive steel frame—or if air leaks through the gaps between panels. U-value testing, governed by standards like ANSI/DASMA 105, takes all of this into account, including:

• The thermal bridging of the steel stiles and hinges.
• Air infiltration through the panel joints.
• The effectiveness of the perimeter weatherstripping.

When looking at U-values, a lower number (such as 0.15) indicates an incredibly tight, well-insulated door assembly, whereas a higher number (such as 0.45) means heat is escaping easily.

Insulated vs Standard Garage Door R-Value Comparison: Material and Performance Breakdown

The construction of a garage door determines its durability, weight, and thermal performance. To understand how these doors differ, we can look at them through three primary construction types:

• Single-Layer Doors (Standard): These are constructed of a single sheet of steel. They are lightweight and budget-friendly, but they offer zero insulation.
• Double-Layer Doors (Insulated): These consist of a steel outer skin with a layer of polystyrene foam insulation bonded to the back, often finished with a vinyl backing.

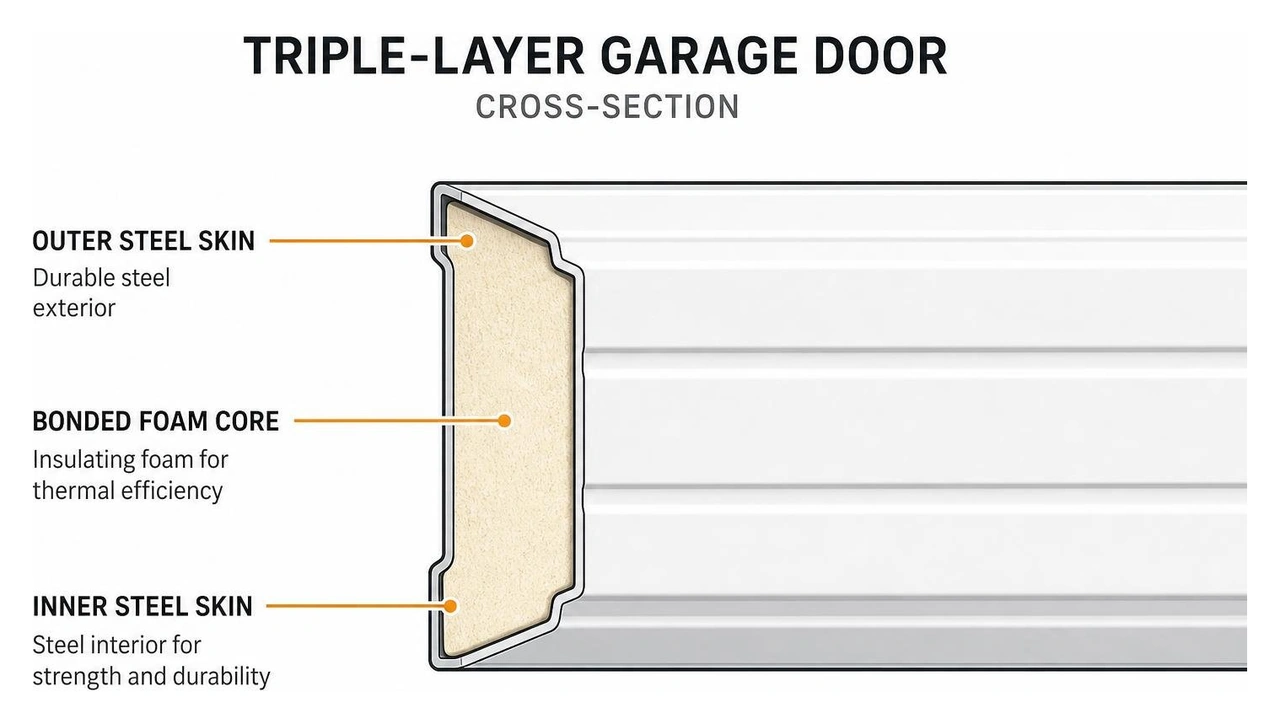

• Triple-Layer Doors (Premium Insulated): These feature a "sandwich" construction, where the insulation core (either polystyrene or polyurethane) is completely enclosed between two layers of heavy-duty steel.

Triple-layer doors do not just insulate better; they are also significantly stronger. The inner steel skin protects the foam core from damage and adds incredible structural rigidity, making the door highly resistant to dents from stray basketballs, lawnmowers, or heavy winds.

To help you visualize the differences, here is a direct comparison of the standard construction styles you will encounter:

Polystyrene Insulation Performance

Polystyrene is the classic insulation material most homeowners are familiar with—it is the same type of rigid foam used to make disposable coolers. In garage door construction, pre-cut panels of polystyrene are inserted into the steel door cavities.

Polystyrene provides a reliable, budget-friendly thermal upgrade. It typically delivers an R-value of roughly R-4 to R-5 per inch of thickness, resulting in overall door ratings between R-6 and R-13. While it does not completely seal every micro-gap within the door panel, it creates a highly effective thermal barrier that keeps the worst of the summer heat out of your garage.

If you want to explore how different door materials pair with polystyrene, take a look at our Garage Door Materials Guide 2026.

Polyurethane Insulation Performance

Polyurethane is the heavyweight champion of garage door insulation. Instead of using pre-cut rigid panels, polyurethane is injected as a liquid foam directly into the door assembly. As it cures, the foam expands to fill every single nook, cranny, and cavity inside the steel panel.

This foamed-in-place process has two massive advantages:

1. Superior Thermal Resistance: Polyurethane is incredibly dense, delivering an R-value of R-6 to R-7 per inch of thickness. This allows polyurethane doors to easily achieve R-values ranging from R-12 to R-20+.
2. Composite Structural Strength: Because the expanding foam adheres directly to the steel skins, it bonds the inner and outer steel layers together into a single, solid composite panel. This makes polyurethane doors exceptionally rigid, virtually eliminating panel flex and tinny rattling during operation.

To see how polyurethane doors stack up against other high-end options, check out our Steel vs Wood vs Aluminum Garage Door Comparison.

Real-World Benefits of Upgrading to an Insulated Garage Door in Central Texas

Living in Central Texas means preparing your home for extreme weather. From blistering summer heatwaves that regularly push past 100 degrees to sudden winter freezes, our climate puts incredible stress on our homes' heating and cooling systems.

An insulated garage door acts as a shield against these temperature extremes. While an uninsulated steel door can quickly turn your garage into a giant oven—radiating heat directly through shared walls into your living spaces—an insulated door can keep your garage 10 to 20 degrees cooler in the summer and warmer in the winter.

Beyond simple temperature control, upgrading to an insulated door offers several lifestyle benefits:

• Acoustic Dampening: The dense foam core in an insulated door acts as a highly effective sound barrier. It absorbs street noise, barking dogs, and passing traffic, making it perfect for homes in busy neighborhoods.
• Whisper-Quiet Operation: Standard uninsulated doors tend to rattle and shake as they open and close. The solid construction of an insulated door dampens these vibrations, making the door itself operate much more quietly.
• Boosted Curb Appeal and Resale Value: A high-quality, insulated garage door is a premium feature that immediately catches the eye of home buyers. According to industry data, garage door replacements consistently deliver one of the highest returns on investment of any home improvement project, often recouping nearly all of its value at resale.

To learn more about how a new door can boost your home's equity and curb appeal, explore our Garage Door Value Guide 2026.

Energy Savings and Tax Incentives

If your garage is attached to your home, it shares a significant amount of wall space with your air-conditioned living areas. When your garage is baking at 110 degrees, heat constantly transfers through those shared walls, forcing your home's HVAC system to run longer and work harder.

By upgrading to an insulated garage door, you reduce this thermal transfer, which can lead to noticeable reductions in your monthly energy bills. Furthermore, if you have a bedroom or bonus room located directly above the garage, insulating the space below is the single most effective way to eliminate those stubborn hot and cold spots in the upstairs room.

To make the upgrade even more rewarding, energy-efficient garage doors can often qualify for valuable financial incentives. You can read about How a New Garage Door May Qualify for Energy Savings Incentives and learn how to maximize your savings with our guide on Energy Efficient Home Improvement Tax Credits Explained.

When is an Insulated Door Worth the Investment?

While insulated doors offer incredible benefits, they aren't always a strict necessity for every single property configuration.

An insulated door is a must-have in the following scenarios:

• Attached Garages: If your garage shares a wall or a ceiling with your heated and cooled living space, insulation is essential to maintain indoor comfort and manage utility bills.
• Conditioned Garages: If you have installed a mini-split or space heater to use your garage as a home gym, workshop, or hobby space, a high-R-value door is required to keep that conditioned air from immediately escaping.
• Valuable Storage: If you store temperature-sensitive items in your garage, such as classic cars, paints, electronics, or tools prone to rusting from condensation, keeping the space tempered is vital.

On the other hand, a standard, non-insulated door may be perfectly sufficient if you have a completely detached garage that is used strictly for parking or basic outdoor storage, and you do not plan to spend extended periods of time working inside it.

Before making your final choice, it is helpful to look at the big picture of your home's exterior needs. Our Garage Door Replacement Guide 2026 can help you evaluate your current setup and choose the perfect replacement strategy.

Frequently Asked Questions About Garage Door Insulation

Can I add insulation to my existing standard garage door?

While there are plenty of DIY insulation kits available at local home improvement stores, we generally advise against them. Adding aftermarket foam panels to a standard door increases its overall weight. Even a few extra pounds can completely throw off the balance of your garage door's torsion springs.

When a door is out of balance, it puts immense strain on your automatic garage door opener, which can lead to premature motor failure or snapped cables. Additionally, DIY kits lack the tight, factory-sealed edges of a professionally manufactured door, leaving gaps where heat and air can easily bypass the insulation.

For more details on keeping your system running smoothly for decades, read our Garage Door Lifespan Guide 2026.

Does garage door insulation help reduce street noise?

Yes, absolutely. Standard single-layer steel doors act like giant drums, vibrating and amplifying street sounds. The dense foam core of an insulated door—especially triple-layer polyurethane models—absorbs these sound waves and dampens vibrations. This significantly reduces the transmission of traffic noise, lawnmowers, and neighborhood activity, creating a much quieter environment inside your garage and adjacent rooms.

What R-value is recommended for Austin, TX homes?

For homes in the Austin, Round Rock, and Pflugerville areas, we generally recommend an R-value between R-9 and R-16 for attached garages. This range provides an optimal balance of thermal protection against our intense summer heat without paying for extreme, sub-zero insulation ratings that are designed for northern climates. If you have a fully conditioned garage workshop or a bedroom directly above the garage, upgrading to a premium polyurethane door with an R-value of R-16 or higher is highly recommended to maximize your comfort and energy savings.

Conclusion

When you weigh the options in an insulated vs standard garage door r-value comparison, the decision comes down to how you use your garage and where it sits in relation to your home. While a standard door might save on upfront costs, an insulated door pays dividends in comfort, durability, whisper-quiet operation, and energy efficiency.

At Good Golly Garage Doors, we believe in bringing a warm, human touch to every installation and repair. We proudly serve our neighbors across Austin, Round Rock, Pflugerville, Cedar Park, Georgetown, Lakeway, Bee Cave, Leander, Liberty Hill, West Lake, and Spanish Oaks. Our team is dedicated to providing fast, transparent, and friendly service rooted in true Central Texas values.

When you are ready to experience the comfort and quiet of a premium insulated door, we are here to help. Schedule professional garage door installation in Austin, TX with us today, and let’s make your garage the comfortable, efficient space it was always meant to be!
