The Importance of Proper Strut Placement on Double-Car Garage Doors

Why Wide-Span Doors Are Highly Vulnerable to Structural Stress

Your double-car garage door starts to open, but instead of a smooth glide, you hear a loud metallic groan and notice the center panels sagging ominously. That bowing isn't just an eyesore—it is a clear sign of structural failure. Understanding the importance of proper strut placement on double-car garage doors is the key to preventing catastrophic panel cracking and total system collapse. A standard 16x7 double-car door span covers an enormous amount of open space with zero center support, making it highly vulnerable to atmospheric shifts and physical stress. Before you need comprehensive Garage Door Services to replace a ruined system, you need to understand exactly what keeps that wide expanse of steel rigid.

Most homeowners don't realize that a garage door is not a single, solid wall. It is a series of hinged panels designed to flex just enough to travel up a curved track. However, that required flexibility becomes a massive liability on a wide-span door. While a single-car door only spans eight feet and naturally retains its rigidity, a 16-foot span is a completely different engineering challenge. The dead weight of the steel, combined with the extreme width, means gravity is constantly trying to pull the center of the door downward when it is in the open position.

Without proper horizontal reinforcement, the center of the door will eventually succumb to this stress. The panels will begin to crease, the hinges will bind, and the structural integrity of the entire door will be compromised. Recognizing the engineering necessity of specific strut placement helps you visually verify your own door's integrity before a minor sag turns into a major structural failure.

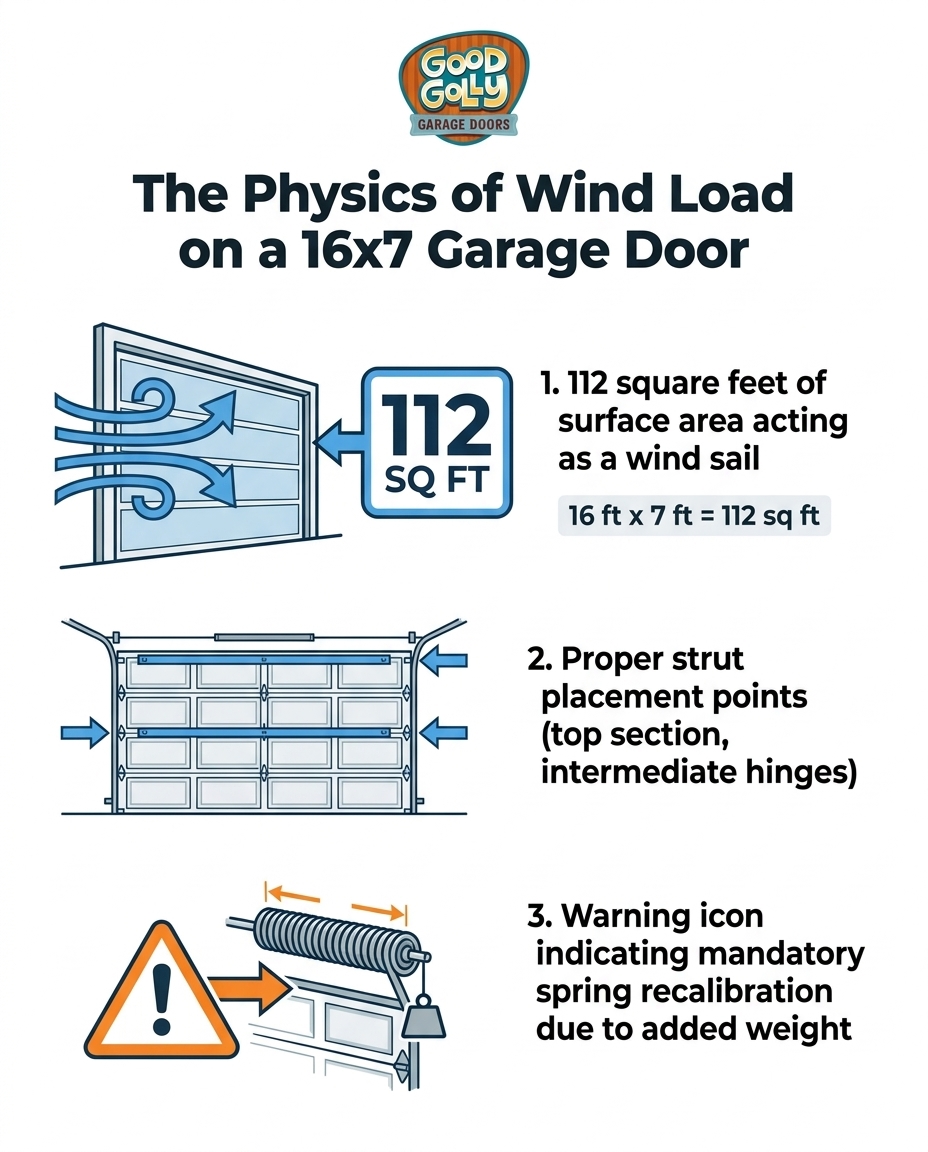

The Physics of Wind Load on a 112-Square-Foot Surface

To truly understand why reinforcement is non-negotiable, you have to look at the sheer size of the object you are dealing with. A standard double door acts essentially like a massive, 112-square-foot sail during severe weather events. When you evaluate the physical forces at play, it becomes clear why unreinforced steel simply cannot survive.

The 'Sail Effect' on Double-Car Dimensions

If you take a 16x7 double-car door span and calculate the surface area, you get 112 square feet of flat exposure. If you were to mount a 112-square-foot sail on a boat, it would generate enough kinetic energy to move a vessel weighing several tons. When that same surface area is bolted to the front of your home, the wind force multiplies across the wide span. Straight-line winds push directly against the center of the panels, creating immense flex. Because the edges of the door are held firmly in place by the steel tracks and rollers, all of that wind pressure is forced into the center of the panels—the exact point where the door is weakest.

How Atmospheric Pressure Shifts Stress Panels

During Austin high-wind storm seasons, it isn't just a steady breeze pushing against the door. Sudden atmospheric pressure shifts create violent push-and-pull dynamics. As wind gusts hit the face of the door (positive pressure) and then suddenly drop away, the air inside the garage pushes back out (negative pressure). This rapid cycling flexes the unreinforced steel back and forth, much like bending a paperclip repeatedly. Over time, this metal fatigue weakens the panels to the point of tearing. If you are curious about how different panel designs handle this stress, you can read more about Strut-Reinforced vs Standard Garage Door Panels to see the component comparisons.

How Horizontal Reinforcement Prevents Panel Buckling

A garage door strut is a heavy-duty, U-shaped piece of galvanized steel that runs the entire interior width of the door. These are not just basic metal brackets; they are highly specific engineering components designed to add rigid horizontal support to an otherwise flexible panel.

Counteracting Center Bowing

When a heavy gust of wind hits a 16x7 double-car door span, the rigid steel lip of the U-shaped strut prevents the panel from folding backward. The physics of structural rigidity over a 16-foot span dictate that the reinforcement must run continuously from end to end. By bolting this rigid steel channel directly to the door's stiles and hinges, the strut acts as a spine. It physically stops the metal from bending past its breaking point, counteracting the center bowing that ruins so many wide-span doors.

Distributing Weight Across the Track System

Struts do more than just stiffen the panel—they change how kinetic energy moves through the door. When wind pressure hits the center of the door, the strut captures that force and distributes it outward, transferring the kinetic energy away from the fragile center and into the heavy-duty hinges and steel rollers. The track system, which is securely bolted to the structural framing of your garage, then absorbs the load. Failing to have these structural components in place inevitably leads to the need for extensive Garage Door Repair. Our engineering-backed expertise ensures doors are structurally reinforced to withstand local environmental stressors, rather than just waiting for them to break.

Strategic Strut Placement: Engineering Over Guesswork

You cannot simply screw a piece of steel to a garage door and expect it to survive a storm. Strategic placement is an exact science. Throwing generic reinforcement randomly at the door does not work, causes uneven wear, and can actually damage the panels further. The placement of these struts is dictated by strict engineering rules that must be followed during any Double-Car Garage Door Installation.

Top Section Reinforcement Rules

1. Combating Opener Pull: The top panel takes the absolute brunt of the motorized opener's force. Every time the motor pulls the door open, it yanks directly on the center of the top panel.

2. Preventing the "Smiley Face" Bow: Without a strut placed at the very top edge, the center of the panel will pull upward while the heavy sides lag behind, creating a dangerous "smiley face" curve.

3. Wind Push Resistance: The top section is also highly vulnerable to wind pushing inward, making a top-mounted strut critical for dual-action resistance.

Intermediate and Bottom Hinge Placement

1. Maintaining Panel Harmony: For a 16x7 double-car door span, struts must be spaced evenly across intermediate hinges based on the door's total weight and local wind load requirements.

2. Securing the Bottom Section: A strut placed along the bottom section protects against ground-level wind drafts that attempt to pry the door upward or push it off its track.

3. Hinge Integration: Struts must be anchored directly over the hinges, never in the middle of a hollow panel, to ensure energy transfers correctly to the rollers.

Visual Signs Your Double-Car Door Lacks Proper Reinforcement

You don't have to be a structural engineer to spot a failing garage door. The visual signs of inadequate horizontal support often become most apparent during or immediately after Austin high-wind storm seasons. If you know what to look for, you can catch the warning signs before the panels buckle completely.

The quick fix: Perform a visual inspection of your door while it is resting in the open (horizontal) position, as this is when gravity exposes structural weakness the most.

• Panel Alignment — Normal Wear: Slight settling, panels remain mostly straight when open. — Sign of Structural Failure: Deep center sagging; the middle of the door hangs noticeably lower than the edges.

• Auditory Cues — Normal Wear: Standard roller hum and minor track clicking. — Sign of Structural Failure: Loud flexing, popping, rattling, or groaning sounds during a storm or while operating.

• Surface Condition — Normal Wear: Minor cosmetic dents or paint chipping. — Sign of Structural Failure: Micro-cracks forming horizontally along panel seams, stiles, or directly under the opener bracket.

• Center sagging: When the door is fully open overhead, look across the bottom edge. If it resembles a hammock rather than a straight line, it lacks horizontal support.

• Storm rattling: If your door aggressively shakes, rattles, or groans during heavy winds, the panels are flexing beyond their safe limits.

• Micro-cracks: Inspect the inside of the door where the hinges attach to the panels. Hairline tears in the steel mean the metal is fatigued and actively failing.

The Critical Link Between Strut Weight and Spring Tension

If you look at a sagging door and think, "I'll just bolt a piece of steel to it," you are putting yourself and your property in serious danger. Adding steel struts significantly increases the total dead weight of the door. This isn't a simple hardware swap; it fundamentally alters the physics of your garage door's balance system.

Why Hardware Modifications Alter Door Balance

Your garage door operates on a highly specific mathematical relationship between the door's total weight and the lift power of the torsion springs. A 16x7 double-car door span might weigh anywhere from 150 to over 300 pounds. The torsion springs mounted above the door are calibrated to offset that exact weight, allowing the heavy door to feel light enough to lift with one hand. When you add a steel strut—which can weigh 15 pounds or more—you instantly throw off that mathematical equilibrium. Even a few extra pounds of steel makes the door too heavy for the existing spring calibration.

The Danger of DIY Strut Installation

Adding weight without immediately recalibrating the springs will have disastrous consequences. At best, the extra dead weight will rapidly burn out your garage door opener motor, as it struggles to lift a load it wasn't designed for. At worst, the unbalanced door can crash down violently, causing severe property damage or injury. Because adding a strut mandates professional spring recalibration, this is strictly a job for licensed professionals. Torsion springs hold immense, lethal tension. The physical risks of adjusting torsion springs without extensive training and specialized tools cannot be overstated. Professional spring recalibration is absolutely non-negotiable when adding structural weight.

Evaluating Your Door's Structural Integrity Before Storm Season

Before the next severe weather event rolls through, it is crucial to evaluate whether your wide-span door is equipped to handle the pressure. A professional wind-load assessment is highly valuable for older, unreinforced doors that have survived previous seasons but may be harboring hidden metal fatigue.

During an assessment, a technician will look at the specific wind load ratings required for your neighborhood and inspect the door for micro-cracks. There is a major difference between retrofitting a vulnerable but healthy panel with a new strut versus attempting to save a door that has already suffered structural failure. If the metal is already torn, a strut will only act as a temporary band-aid on a ruined panel. Reaching out to Austin Garage Door Experts ensures you have local professionals who understand exactly what Austin high-wind storm seasons do to 16-foot steel spans.

Common Questions About Garage Door Reinforcement

Where should garage door struts be placed?

Struts must be strategically placed to counteract specific forces, starting with the top section to handle the opener's pulling force. Additional struts are typically placed along intermediate hinges and the bottom section to distribute wind load evenly. They must always be anchored directly over the hinges and stiles, never in the hollow center of a panel. Proper placement ensures kinetic energy transfers to the track system rather than bowing the door.

How many struts does a 16x7 garage door need?

The exact number depends on the door's material, weight, and the local wind load requirements. At a minimum, most double-car doors require one heavy-duty strut on the top panel to prevent "smiley face" bowing from the opener. However, in areas prone to high winds, doors often require three or more struts spaced evenly across the sections to maintain structural integrity.

Why is my garage door bowing in the middle when open?

Bowing in the middle occurs because the heavy 16-foot span of steel lacks the rigid horizontal support needed to fight gravity. When the door is open and resting horizontally, the dead weight of the center panels pulls downward. Without a steel strut to act as a rigid spine, the metal flexes, which can eventually lead to permanent creasing and panel failure.

Can I add a strut to my garage door myself?

No, adding a strut is not a DIY project because it fundamentally alters the weight and balance of the door. Bolting heavy steel to the panels means the torsion springs must be immediately recalibrated to handle the new weight. Adjusting torsion springs is extremely dangerous without professional training, and failing to adjust them will cause the heavy door to damage the opener or crash down.

Does adding a strut mean I have to replace my garage door springs?

Not necessarily replace, but they absolutely must be recalibrated by a professional. If the added weight of the struts exceeds the maximum lift capacity of your current springs, then replacement will be necessary to achieve proper balance. A licensed technician will weigh the door after reinforcement and determine if the existing springs can be tensioned safely or if heavier-duty springs are required.

Ensure Your Garage Door Can Handle the Pressure

Proper strut placement is an exact science, engineered specifically to keep wide-span doors rigid under immense pressure. From fighting gravity when the door is open to resisting the brutal push-and-pull of Austin high-wind storm seasons, horizontal reinforcement is what keeps your door intact. Remember, adding any structural weight to your door alters its balance, making professional spring calibration mandatory for your safety. If you have noticed sagging, heard groaning during operation, or simply want the peace of mind that your wide-span door is secure, reach out for professional Garage Door Repair and structural reinforcement options today.
