How to Understand Torsion Spring Mechanics with These 3 Quick Fixes for Your Las Vegas Garage Door

How Garage Door Torsion Springs Lift and Lower Your Door

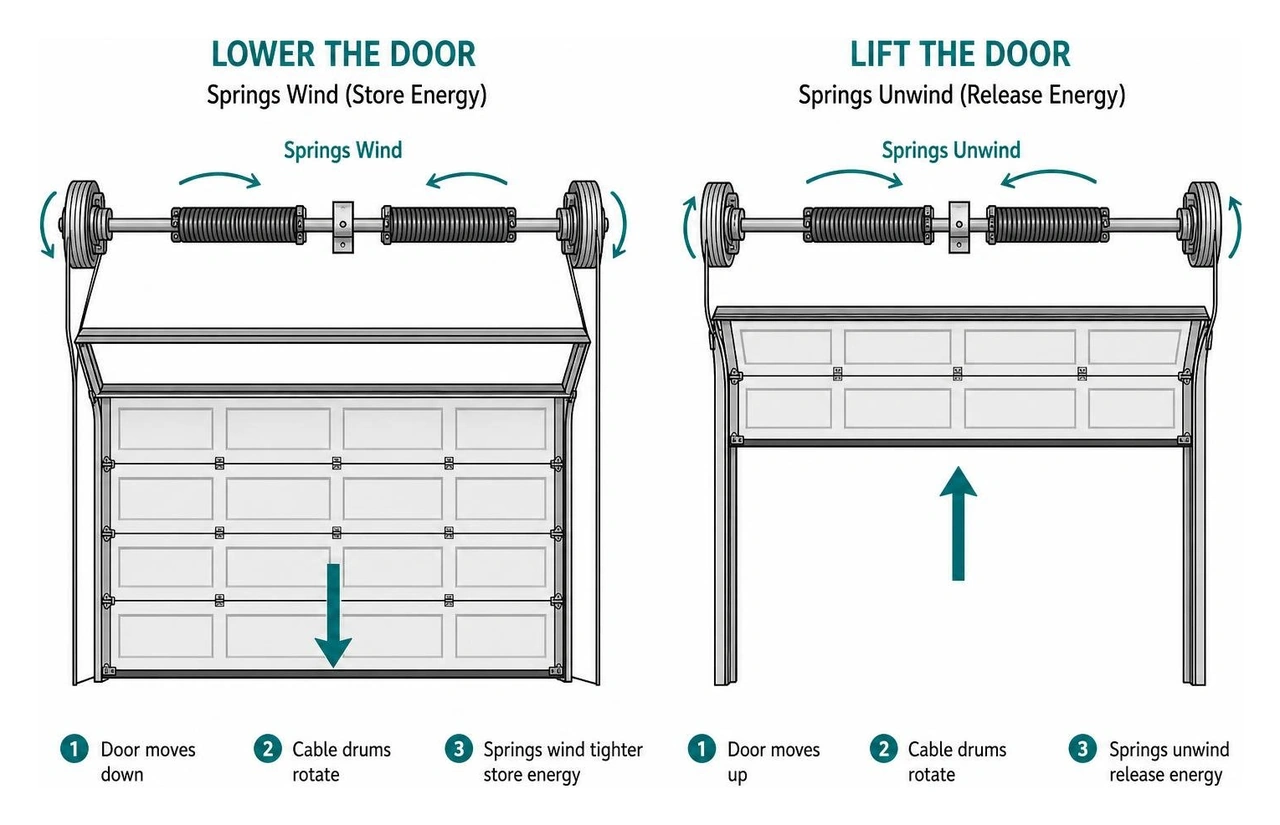

Garage door torsion springs make a heavy door feel much lighter by storing energy when the door closes and releasing it when the door opens. The springs twist a metal shaft above the opening, which turns cable drums and pulls lift cables to raise the door evenly. Properly working springs carry most of the door's weight, while the opener guides the movement. For homeowners needing Garage Door Repair in Las Vegas, NV, a door that feels heavy, jerks, or stops early may point to a spring problem that needs prompt professional attention.

Learn About Garage Door Repair in Las Vegas | Schedule Garage Door Service

Think of the system as a controlled exchange of energy: closing the door winds the springs tighter, and opening it lets them unwind in a measured way. A loud bang, a visible gap in a spring coil, slack cables, or an opener that cannot lift the door are all reasons to stop using the door and call for service.

If your door is unbalanced or unusually heavy, contact Good Golly Garage Doors for Las Vegas Garage Door Repair.

I am Jason Henderson, founder and CEO of Good Golly Garage Doors, and I lead a team focused on safe, reliable garage door service for Las Vegas homeowners. Our hands-on work with repairs and maintenance helps homeowners understand how do garage door torsion springs work to lift and lower your door before a small warning sign becomes a major disruption.

The Core Physics: How Do Garage Door Torsion Springs Work to Lift and Lower Your Door

When you press the wall button or click your remote, it is easy to assume the motorized opener overhead is hoisting hundreds of pounds of steel or wood panels into the air. In reality, the electric motor simply guides and regulates travel. The actual heavy lifting is handled entirely by mechanical counterbalance principles. Understanding How Do Garage Door Torsion Springs Work to Lift and Lower Your Door comes down to exploring how rotational energy, or torque, is transferred through a synchronized mechanical assembly mounted directly over the header.

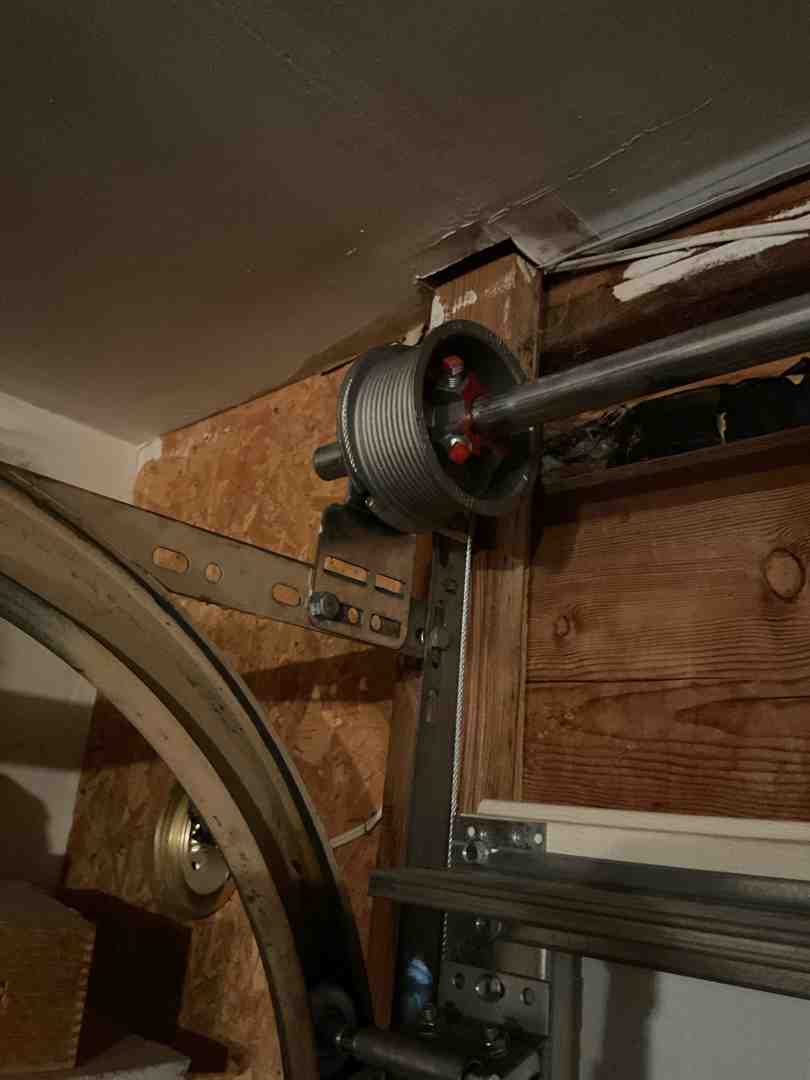

Anatomy of the Overhead Torsion Spring Assembly

The overhead torsion assembly consists of several precision-engineered components designed to operate under immense mechanical strain:

• Torsion Springs: Manufactured from high-tensile, oil-tempered steel (typically ASTM A229 grade steel), these heavy-gauge coils are calibrated to specific door dimensions and panel weights.
• Torsion Shaft (Tube): A solid or tubular steel bar that spans the entire width above the opening, holding the springs, center support bracket, and end drums.
• Stationary Cones: Cast-iron or aluminum fittings secured inside one end of each spring, anchoring it firmly to the central wall bracket.
• Winding Cones: Installed at the active end of the spring, these components allow technicians to wind tension into the coils and secure that energy to the shaft via hardened set screws.
• Cable Drums: Grooved circular aluminum wheels keyed to each outer end of the shaft.
• Lift Cables: Multi-strand galvanized aircraft cables anchored to the bottom brackets of the door and wound tightly within the drum grooves.
• End Bearing Plates: Heavy-duty brackets mounted to the framing at both upper corners that support the shaft and keep it rotating freely with minimal friction.

When every component is aligned, the system distributes immense stored force evenly across both sides of the door. When components wear out or slip out of alignment, homeowners throughout Summerlin and Henderson often schedule trusted Las Vegas garage door repair to restore safe operation.

Mechanical Advantage: How Do Garage Door Torsion Springs Work to Lift and Lower Your Door Using Torque

The term "torsion" refers to twisting. However, from a strict physics standpoint, a garage door torsion spring experiences bending stress along the curvature of its steel wire rather than pure axial twisting. When a technician winds the active coils around the shaft, mechanical potential energy is packed tightly into the steel.

A properly tensioned spring assembly does roughly 80% to 90% of the lifting work. In practical terms, a 10-pound calibrated spring can effortlessly counterbalance a 300-pound insulated residential door. Because the rotational force (torque) produced by the spring matches the downward gravitational pull of the door panels across the radius of the cable drums, the door enters a near weightless state of equilibrium. This ensures that you—or a modest fractional-horsepower opener motor—can raise the door with gentle manual effort.

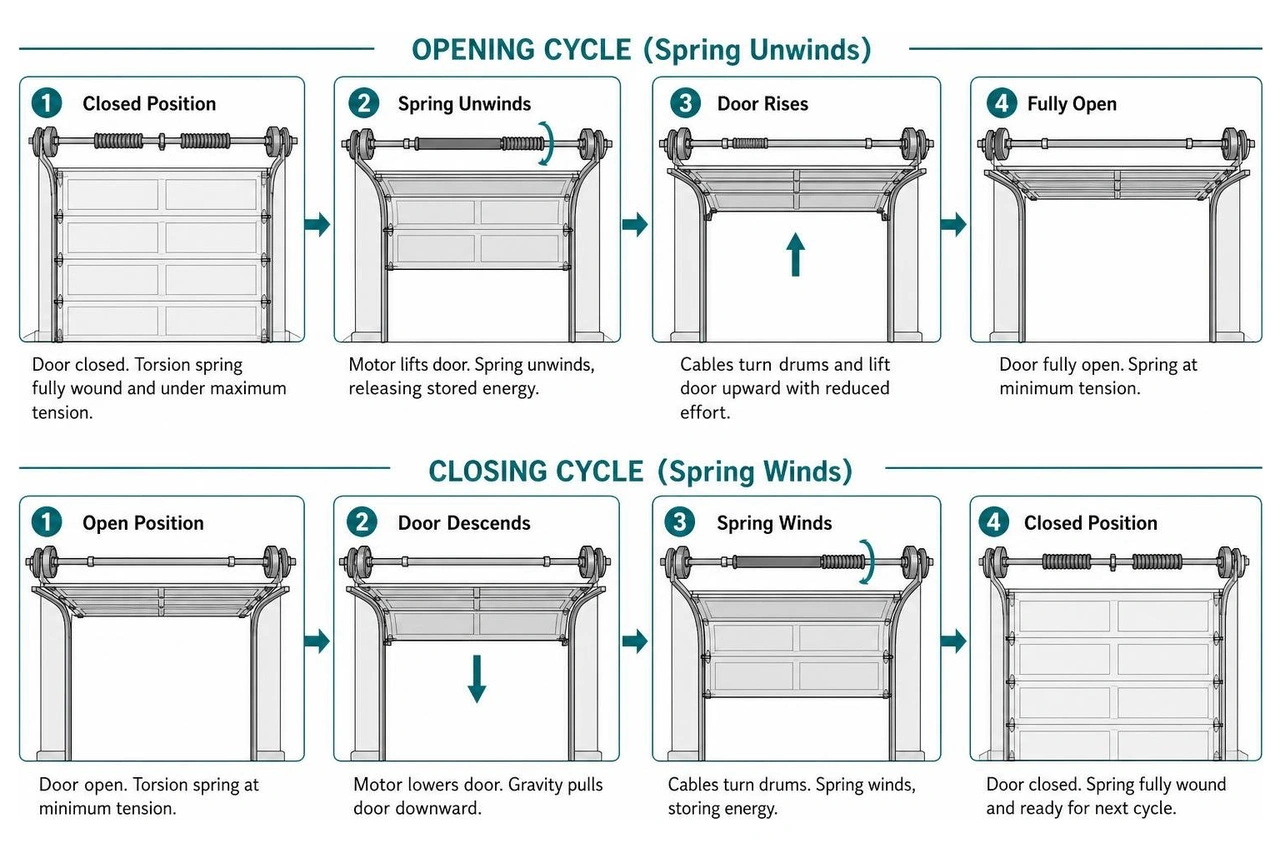

The Step-by-Step Cycle: How Torsion Springs Control Door Movement

Every time your garage door cycles open or closed, the torsion system undergoes an exact transfer between potential energy (stored energy) and kinetic energy (energy in motion).

Energy Release During the Opening Phase

When the door is closed flat against the garage floor, the torsion spring is wound to its peak tension level. Here is what occurs the moment an opening cycle begins:

1. Unwinding Action: The spring begins to unwind, releasing its stored mechanical energy.
2. Shaft Rotation: As the winding cone turns, it rotates the central torsion shaft.
3. Cable Spooling: The rotating shaft turns the cable drums on both ends, neatly reeling in the high-strength lift cables.
4. Vertical Lift: The lift cables pull upward on the bottom fixtures of the door, effortlessly carrying the bottom panels upward through the vertical tracks.
5. Horizontal Track Transition: As the door sections round the track curve and slide into the horizontal tracks overhead, the horizontal rails begin carrying the physical weight of the panels. The spring unwinds further, gradually reducing its torque output because less lifting assistance is required once the panels are supported by the ceiling tracks.

How Do Garage Door Torsion Springs Work to Lift and Lower Your Door Smoothly During Closing

When the door descends, gravity wants to pull the heavy panels downward at accelerating speed. The torsion assembly acts as a mechanical brake and energy collector:

1. Gravitational Descent: The opener pushes the top panel forward into the curve, allowing gravity to pull the door downward along the tracks.
2. Cable Unspooling: As the door moves down, the lift cables unspool from the cable drums under the weight of the door panels.
3. Shaft Counter-Rotation: The unspooling cables force the drums and the torsion shaft to rotate in the opposite direction.
4. Spring Re-Tensioning: Because the stationary cone holds one end of the spring immovably against the center bracket, the reversing shaft twists the active coils tighter, reloading them with mechanical potential energy.
5. Controlled Landing: By resisting gravitational acceleration, the tightening spring ensures the door glides gently down into the door seal rather than slamming violently against the concrete.

In hot desert environments like Las Vegas and North Las Vegas, extreme temperature swings between blistering afternoon heat and cool desert nights can cause metal expansion and contraction, accelerating fatigue on the steel coils during these continuous load cycles.

Torsion Springs vs. Extension Springs: Key Mechanical Differences

While torsion springs are mounted on a central shaft directly above the door opening, older or budget-oriented systems sometimes utilize extension springs mounted above the horizontal tracks on either side of the door.

Because torsion systems contain snapped springs directly on the central shaft and provide superior balance across wide multi-vehicle doors, they represent the modern standard for residential safety and durability.

3 Safe Maintenance Steps and Diagnostics for Las Vegas Homeowners

Extreme heat, persistent desert dust, and frequent daily cycles can strain overhead hardware. Homeowners should never touch, loosen, or adjust high-tension springs, winding cones, or bottom brackets. However, you can perform three completely safe, non-invasive diagnostic and preventative maintenance steps to keep your system in top condition.

Step 1: Perform a Safe Door Balance Check

A quick balance test tells you whether your springs are providing the correct counterbalance torque or if fatigue has set in:

1. Close the garage door completely.
2. Pull the red emergency release cord on your automatic opener carriage to disconnect the motor.
3. Grip the lift handle or bottom edge of the door and raise it manually halfway up (about waist height or 3 to 4 feet off the floor).
4. Let go of the door carefully.

What the results mean:

• Properly Balanced: The door should remain suspended mid-travel with minimal movement (supported by spring tension).
• Under-Tensioned / Fatigued: If the door falls rapidly toward the floor, the springs have lost tension or are failing.
• Over-Tensioned: If the door snaps open and flies toward the ceiling, the tension is calibrated too high.

If the door fails this test, reconnect the opener carriage and call for a professional safety inspection.

Step 2: Clean and Lubricate Coils to Combat Desert Heat

Desert dust acts like sandpaper between tightly wound coils, while dry air accelerates friction and squeaking. Every three to six months:

1. Wipe away excess dirt and sand from the outside of the spring coils using a clean, dry microfiber rag.
2. Apply a dedicated garage door lubricant (a non-greasy silicone spray or white lithium aerosol) evenly across the top of the coils.
3. Avoid generic multi-purpose household solvents or heavy axle grease, as they attract airborne dust and turn into abrasive sludge.
4. Open and close the door two or three times to work the lubricant between the active coils.

Keeping coils properly lubricated reduces binding friction, silences metal chatter, and prevents surface corrosion.

Step 3: Recognize Warning Signs and Arrange Professional Service

Torsion springs do not last forever. Recognizing early mechanical warnings allows you to resolve issues before you find your car trapped inside your garage on a Monday morning:

• A Loud Gunshot Sound: When a spring breaks under tension, the sudden release of energy produces a loud bang that can echo throughout the house.
• A 2-Inch Visible Gap: A broken torsion spring separates into two distinct pieces, leaving a clear gap in the coil.
• Slack or Unwound Cables: If a spring loses tension, the lift cables can go limp and slip out of the drum grooves.
• The Opener Stalls or Reverses: When an opener strains, groans, or lifts the door just a few inches before shutting down, its internal overload protection is reacting to the unassisted dead weight of the door.
• Crooked Travel: If one spring in a dual-spring setup snaps, the door may lift unevenly or bind in the vertical tracks.

If you observe any of these warning signs, discontinue using the door immediately and contact our team for reliable garage door spring repair in Las Vegas, NV.

Frequently Asked Questions About Garage Door Torsion Springs

How long do torsion springs typically last before failing?

Standard residential oil-tempered torsion springs are rated for roughly 10,000 operational cycles. A cycle represents one complete opening and closing sequence. For an average household operating the door 3 to 4 times per day, 10,000 cycles equates to roughly 7 to 10 years of service life. High-cycle replacement springs can provide 20,000 to 50,000 cycles or more, making them an excellent upgrade for large families or busy households that use their garage as the primary entrance.

Can an automatic opener operate a door with a broken spring?

You should never attempt to use an electric garage door opener to lift a door with a broken spring. Automatic openers are designed to regulate balanced motion, not lift 150 to 400 pounds of dead weight. Running an opener with a broken spring will strip the drive gears, bend the opener rail, overheat the motor, or cause the door to crash down unexpectedly.

Why should both torsion springs be replaced at the same time?

Most double-car garage doors use a dual-spring configuration featuring one right-wound spring and one left-wound spring. Because both springs were installed together and have completed the exact same number of stress cycles, the unbroken spring has experienced identical metal fatigue. Replacing only one spring leaves an uneven tension balance across the shaft and almost always results in the second spring snapping shortly thereafter. Replacing both springs simultaneously ensures proper calibration and long-term reliability.

Conclusion

Understanding the mechanical principles behind your garage door torsion springs highlights just how hard these heavy-duty components work every single day. By converting torque into effortless lifting power, your torsion assembly protects your opener motor and keeps your daily routine running smoothly.

When springs experience metal fatigue, lose balance, or snap unexpectedly, dealing with high-tension hardware requires specialized tools, correct calibration, and trained expertise. At Good Golly Garage Doors, we take pride in serving our neighbors across Las Vegas, Henderson, Summerlin, North Las Vegas, Sun City, Boulder City, and the surrounding areas. As a licensed, family-owned business, we provide dependable workmanship, fast response times, and 24/7 emergency service to ensure your home remains safe and secure.

If your garage door is noisy, unbalanced, or showing signs of spring fatigue, do not wait for a complete breakdown. Schedule Las Vegas garage door repair with Good Golly Garage Doors today to have our skilled local technicians inspect, balance, or service your overhead system.
