Heavy-Duty vs Standard Torsion Cables for Oversized RV Garage Doors

The Myth That 'All Garage Cables Are Created Equal'

At Good Golly Garage Doors, a persistent misconception we see in local home construction is that standard residential hardware can simply be scaled up to handle larger architectural features. When you are dealing with Heavy-Duty vs Standard Torsion Cables for Oversized RV Garage Doors, this assumption is not just incorrect—it is a significant safety hazard. In many of the custom RV garages built since 2015 that our team services, homeowners do not realize that the lifting components installed on a standard two-car garage are fundamentally inadequate for the extreme tension required to lift an oversized structure.

The concrete problem becomes obvious when you look at a massive 14-foot tall door height. Standard 1/8-inch cables, which perform perfectly well on a typical seven-foot residential door, face severe premature wear when subjected to the extreme tension of an oversized setup. The mechanical strain of lifting that much raw material stretches standard components beyond their intended safety margins, leading to rapid degradation, fraying, and eventual failure.

This brings homeowners to a critical decision point during a system overhaul or repair: deciding whether to stick with standard 1/8-inch cables or upgrade to 5/32-inch heavy-duty aircraft cables. Making the right choice requires moving past basic hardware definitions and looking closely at the high-tension performance required to keep your property secure. If you are scheduling garage door services, addressing this specific component is critical. For existing setups showing signs of strain, professional garage door repair should always include an evaluation of your cable gauge.

The Physics of 14-Foot RV Garage Doors

To understand why cable gauge matters, you have to look at the sheer physics involved in moving an oversized door. A standard residential garage door typically weighs between 130 and 150 pounds. In stark contrast, a heavy-duty setup with a 14-foot tall door height—especially those featuring double-layer steel and thick polyurethane insulation—can easily weigh upwards of 300 to 500+ pounds. Moving half a ton of steel and insulation requires an immense amount of stored energy.

Understanding Static vs. Dynamic Loads

When our technicians evaluate torsion systems, we look at two different types of mechanical stress: static load and dynamic load. The static load is the simple dead weight of the door when it is at rest. If a door weighs 400 pounds, the static load is 400 pounds. However, the dynamic load refers to the forces exerted on the cables and springs while the door is in motion. When the opener engages, or when the door shifts as it moves along the tracks, the temporary tension spikes placed on the cables are significantly higher than the static weight.

The Sail Effect in High-Desert Winds

The immense surface area of an oversized door introduces another critical variable: wind resistance. A 14-foot tall, 12-foot wide door acts like a massive sail. With Victorville's frequent 40 to 50 mph high-desert wind gusts, especially during the stormy winter months, the dynamic load on the door increases dramatically. When a strong gust hits the exterior of the door while it is in motion, it forces the panels against the tracks, creating intense friction. The torsion cables must pull against both the dead weight of the door and the friction caused by the wind load. This compounding mechanical stress pushes standard hardware to its absolute limit, requiring components engineered for heavy industrial use.

Standard 1/8-Inch Cables: Limitations and Hidden Risks

When comparing 1/8-inch standard vs 5/32-inch heavy-duty aircraft cables, it is helpful to look at the exact engineering specifications. A pattern we see often during emergency service calls is that a standard 1/8-inch galvanized steel cable—which typically has a breaking strength of around 2,000 pounds—has been stretched to its limit. On paper, that sounds like more than enough for a 500-pound door. However, in mechanical engineering, safety margins are everything.

The safety margin shrinks dangerously when factoring in the dynamic stress of a 300-500+ pound door over thousands of lifting cycles. Here is how the hidden risks of standard 1/8-inch cables typically unfold:

1. Micro-Fraying Under Tension: As the 1/8-inch cable winds tightly around the torsion drum, the immense weight of the oversized door causes the individual steel wire strands to stretch and grind against each other. Over time, this leads to microscopic fraying that weakens the overall structural integrity of the cable.

2. Accelerated Metal Fatigue: Standard cables lack the strand density required to distribute extreme weight evenly. The repeated bending and unbending under maximum tension accelerates metal fatigue, making the cable brittle long before its expected lifespan ends.

3. Imbalanced Lifting: When one standard cable begins to stretch or fray faster than the other, the door lifts unevenly. This puts catastrophic strain on the tracks, the rollers, and the opener motor itself.

4. Catastrophic Failure Hazards: The most severe safety hazard occurs when a weakened standard cable snaps under immense torsion tension. A snapping cable releases thousands of pounds of stored energy instantly, acting like a steel whip that can cause severe property damage or injury.

Because of these extreme hazards, tension work strictly requires a licensed professional. Ignoring the early warning signs of fraying or stretching leads to compounding damage across the entire system, significantly increasing the costs of delaying garage door cable replacement.

5/32-Inch Heavy-Duty Aircraft Cables: The Safety Mandate

For oversized applications, our team considers upgrading from 1/8-inch standard to 5/32-inch heavy-duty aircraft cables a mandatory safety requirement rather than an optional luxury. We recommend 5/32-inch heavy-duty aircraft cables over standard options because the engineering advantages of the thicker gauge completely change the reliability and safety profile of a massive 14-foot door.

Superior Technical Specifications

The technical upgrade specs are substantial. While standard 1/8-inch cables max out around 2,000 pounds of breaking strength, 5/32-inch heavy-duty aircraft cables offer roughly 2,800 to 3,000+ pounds of breaking strength. This massive increase in tensile strength restores a proper, safe working margin for doors weighing 400 to 500+ pounds, ensuring the cables can easily handle sudden dynamic load spikes without stretching. We often pair these thicker cables with a 10,000 to 15,000 high-cycle torsion spring to maximize the system's longevity.

The 7x19 Strand Core Construction

The secret to the aircraft cable's durability lies in its construction. Heavy-duty 5/32-inch cables utilize a "7x19" strand core design. This means the cable is constructed from seven primary bundles, and each of those bundles contains 19 individual steel wires. This precise engineering provides the necessary flexibility for the cable to wind smoothly around the torsion drum without sacrificing tensile strength. Thinner standard cables often use a less dense strand count, which makes them prone to kinking and snapping when forced to bend under extreme weight.

Handling Dynamic Loads and Tension Spikes

Because oversized doors are subject to greater wind loads and friction, they experience frequent tension spikes. The thicker 5/32-inch gauge absorbs these sudden shocks far better than standard alternatives. The robust 7x19 construction distributes the temporary excess load across a wider surface area of steel, preventing the micro-fraying that plagues thinner cables. When you rely on Victorville garage door specialists to install these heavy-duty components, you ensure the lifting system is perfectly calibrated to handle the specific physical demands of your oversized architecture.

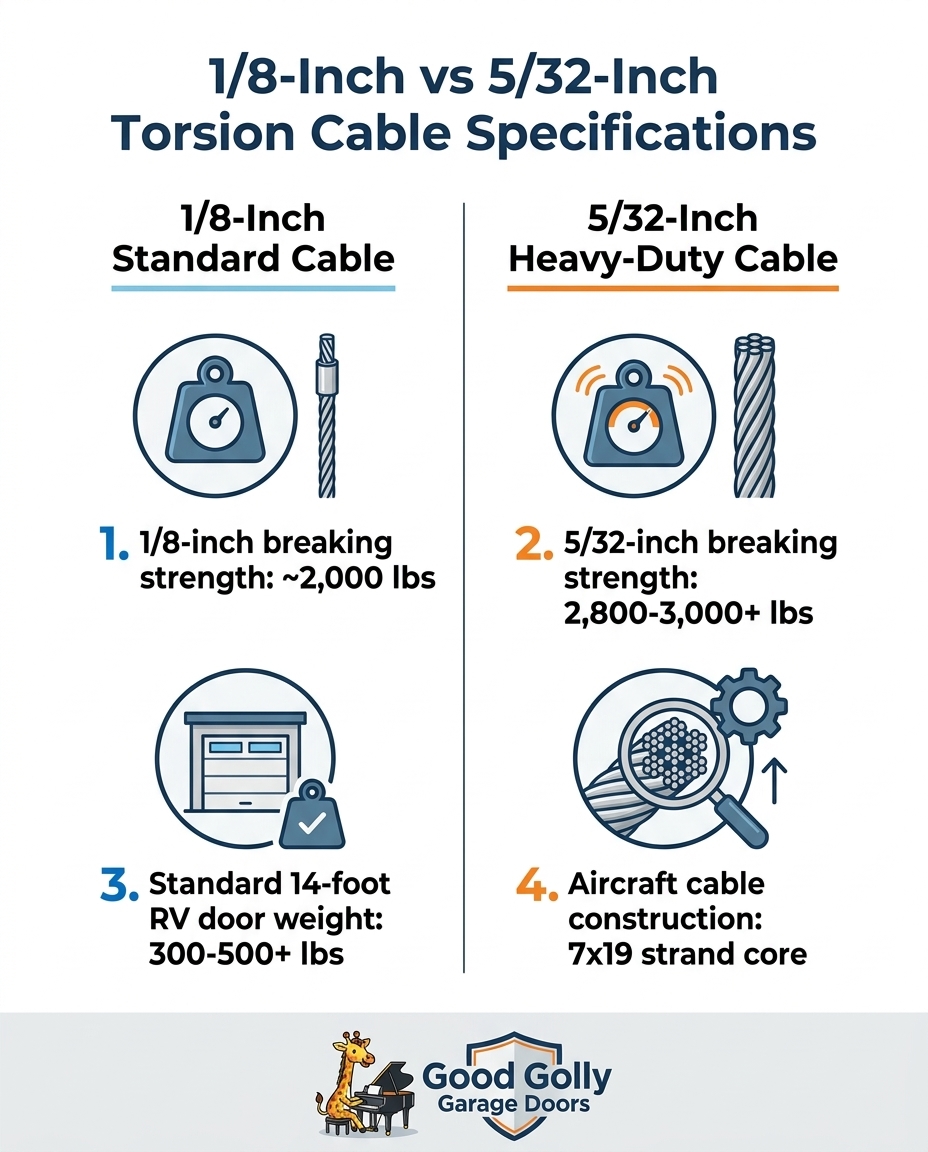

Side-by-Side Comparison: 1/8" vs 5/32" Torsion Cables

To clearly illustrate why the upgrade is necessary, here is a direct, technical comparison of 1/8-inch standard vs 5/32-inch heavy-duty aircraft cables. This breakdown highlights how the two gauges perform under heavy mechanical stress.

• Breaking Strength — Standard 1/8-Inch Cable: Approx. 2,000 lbs — Heavy-Duty 5/32-Inch Aircraft Cable: 2,800 to 3,000+ lbs

• Construction Type — Standard 1/8-Inch Cable: Standard wire rope (lower strand count) — Heavy-Duty 5/32-Inch Aircraft Cable: 7x19 strand core construction

• Flexibility Under Load — Standard 1/8-Inch Cable: Prone to stiffening and metal fatigue — Heavy-Duty 5/32-Inch Aircraft Cable: Highly flexible, resists kinking around drums

• Ideal Use Case — Standard 1/8-Inch Cable: Standard 7-foot or 8-foot residential doors — Heavy-Duty 5/32-Inch Aircraft Cable: 14-foot oversized architectural RV doors

• Long-Term Wear Resistance — Standard 1/8-Inch Cable: High risk of fraying under 300+ lb loads — Heavy-Duty 5/32-Inch Aircraft Cable: Excellent durability under extreme mechanical stress

The High-Desert Factor: Environmental Wear on Garage Components

In our years working across the Victorville area, we've learned that mechanical stress and door weight are not the only factors degrading your torsion system. Local environmental conditions play a massive role in accelerating wear on under-rated cables. For Victorville RV garages, the high-desert climate introduces a unique set of challenges that standard hardware simply is not built to withstand.

The Sandpaper Effect of Mojave Desert Dust

During the dry, windy spring months (April through June), the abrasive nature of airborne Mojave Desert sand and dust is notoriously tough on mechanical components. As the wind blows fine particulate matter into the garage, it settles onto the lightly lubricated torsion cables and drums. When the door operates, the cable winds tightly around the grooved drum. If dust and sand are trapped between the steel strands and the drum, they act exactly like sandpaper.

On thinner, standard-gauge cables, this abrasive action grinds away the galvanized coating and cuts into the individual wire strands at an alarming rate. Because a 1/8-inch cable already has fewer strands and a lower safety margin, this environmental abrasion can quickly push the cable past its breaking point.

Compounding Environmental Stressors

The thicker 5/32-inch aircraft cables provide significantly more material resistance to this environmental abrasion. The 7x19 construction means there is simply more steel to withstand the grinding effect of the dust, and the tighter strand bundles make it harder for fine sand to penetrate deep into the core of the cable. When you combine the compounding effects of high wind loads pushing against the door and dust abrasion grinding at the cables, the necessity of heavy-duty hardware becomes undeniable. Standard cables will fray, rust, and fail rapidly under these harsh high-desert conditions.

Protecting Your Investment with Proper Maintenance

Upgrading your Victorville RV garages to heavy-duty 5/32-inch cables is the best way to secure your oversized door, but even the strongest aircraft cables require proactive upkeep to maximize their lifespan. Proper maintenance ensures that the entire torsion system operates smoothly, preventing excess strain on any single component.

Our specific expertise in servicing and upgrading oversized, heavy custom RV garage doors tailored to Victorville's architectural styles means we see exactly how these systems wear down over time. To protect your investment, our team at Good Golly Garage Doors strongly advises following these maintenance guidelines:

1. Perform Regular Visual Inspections: Once a month, grab a flashlight and visually inspect the entire length of the cables, paying special attention to where they attach to the bottom brackets and where they wrap around the torsion drums. Look for any signs of fraying, rust, or slack. If you see a single broken strand, it is time to call a professional.

2. Keep Tracks and Rollers Clean: Use a dry rag to wipe down the inside of the tracks, removing the buildup of desert dust and debris. If the rollers meet resistance, the cables have to pull harder to lift the door, increasing dynamic strain.

3. Maintain Proper Lubrication: Apply a garage-door-specific PTFE-based silicone or lithium spray to the hinges, rollers (if they have metal ball bearings), and torsion springs. Proper lubrication of moving parts prevents friction and excess strain on the cables.

4. Strict Safety Warning—No DIY Tension Work: Never attempt to adjust, repair, or replace torsion cables, bottom brackets, or springs yourself. These components are under extreme tension. Tampering with them without specialized tools and training can result in catastrophic injury or property damage. This work strictly requires a licensed professional.

By staying vigilant and scheduling routine garage door maintenance, you can spot minor alignment issues before they put undue stress on your heavy-duty cables. Proactive, professional upkeep is the key to ensuring your massive 14-foot door operates safely and reliably for years to come.

Frequently Asked Questions

What size cable do I need for a heavy garage door?
For heavy, oversized architectural doors, a 5/32-inch heavy-duty aircraft cable is the standard recommendation. This thicker gauge provides the necessary breaking strength and flexibility to handle doors weighing 300 to 500+ pounds safely.

Are thicker garage door cables better?
Yes, thicker cables are generally better for heavy applications because they offer a much higher breaking strength and better resistance to metal fatigue. A 5/32-inch cable utilizes a dense 7x19 strand core construction, making it vastly superior to standard 1/8-inch cables in both durability and safety.

How much weight can a 5/32 garage door cable hold?
A high-quality 5/32-inch heavy-duty aircraft cable typically boasts a breaking strength of 2,800 to 3,000+ pounds. This high rating ensures a wide safety margin when lifting oversized RV garage doors that weigh several hundred pounds.

Why do garage door cables snap under tension?
Cables snap when the mechanical stress of lifting the door exceeds the structural integrity of the steel strands, often due to metal fatigue, fraying, or environmental abrasion. When a standard cable is forced to lift an oversized door, the lack of a proper safety margin accelerates this degradation until the cable ultimately fails.

Can I upgrade my standard RV garage cables to heavy-duty aircraft cables?
Yes, upgrading to 5/32-inch heavy-duty aircraft cables is a highly recommended safety improvement for oversized doors. However, because this involves the high-tension torsion system, the upgrade must be performed by a licensed professional to ensure proper calibration and safety.

If you notice fraying on your existing cables or want to ensure your oversized system is built to last, a professional assessment is the safest next step. A clear, technical evaluation of your current hardware will help you make an informed, safety-first decision for your home.
