The Mechanics of a Low-Headroom Garage Door Conversion

Overcoming the Ceiling Clearance Dilemma in Older Garages

Your garage ceiling is simply too low for a standard overhead track, leaving you stuck with an outdated door that barely functions. If you are facing this exact architectural hurdle, understanding The Mechanics of a Low-Headroom Garage Door Conversion is the key to solving the problem without undertaking costly roof or header modifications. At Good Golly Garage Doors, we frequently help homeowners who discover that their existing garage structure lacks the vertical space required to allow a standard door to transition smoothly from a vertical closed position to a horizontal open position. Instead of settling for a manual door or planning a massive structural remodel, specialized mechanical conversions provide a safe, effective alternative.

For professional guidance, exploring garage door installation options tailored to your specific architecture is highly recommended.

The Architectural Constraints of Older Properties

In our years of servicing older Modesto neighborhoods, our team has seen firsthand how homes were built with different vehicle dimensions and storage needs in mind. The garages attached to these historic or mid-century properties often feature lower rooflines, exposed structural beams, or dropped ceilings that severely limit overhead space. Standard garage door tracks require significant vertical clearance above the door header to house the torsion spring system and the curved track radius. When that space is missing, the door simply cannot open without striking the ceiling or binding in the tracks.

Common obstacles we see in low-clearance garages include:

• Dropped ceilings: Often added later to hide wiring or ductwork, reducing the original overhead space.

• Oversized support beams: Load-bearing beams running directly across the path of the garage door tracks.

• Low-pitched roofs: Architectural styles that naturally slope down near the garage entrance, pinching the available clearance.

• HVAC routing: Ductwork installed directly above the parking area that cannot be easily relocated.

Understanding how specialized tracks function helps homeowners make informed decisions about modernizing their property. By relying on advanced geometry rather than brute force, these systems allow you to enjoy the convenience and security of a modern, automated overhead door, regardless of your garage's original design limitations.

Standard vs. Low-Clearance Overhead Requirements

To fully grasp why a specialized conversion is necessary, you have to look closely at the baseline measurements of overhead door mechanics. Standard garage door installations typically demand anywhere from 12 to 18 inches of clearance above the door opening. This space is known as "headroom," and it is measured from the top of the door opening (the header) to the lowest obstruction on the ceiling.

Attempting to force standard hardware into a low-clearance space is a recipe for disaster. It results in severe binding, structural damage to the top panels of the door, and significant safety hazards as the motor struggles against unnatural friction. In older architectural designs, we find that the available space between the header and the ceiling is often significantly less than the 12-inch minimum. This is where low-headroom mechanical solutions step in, reducing the necessary overhead clearance to as little as 4.5 to 9 inches.

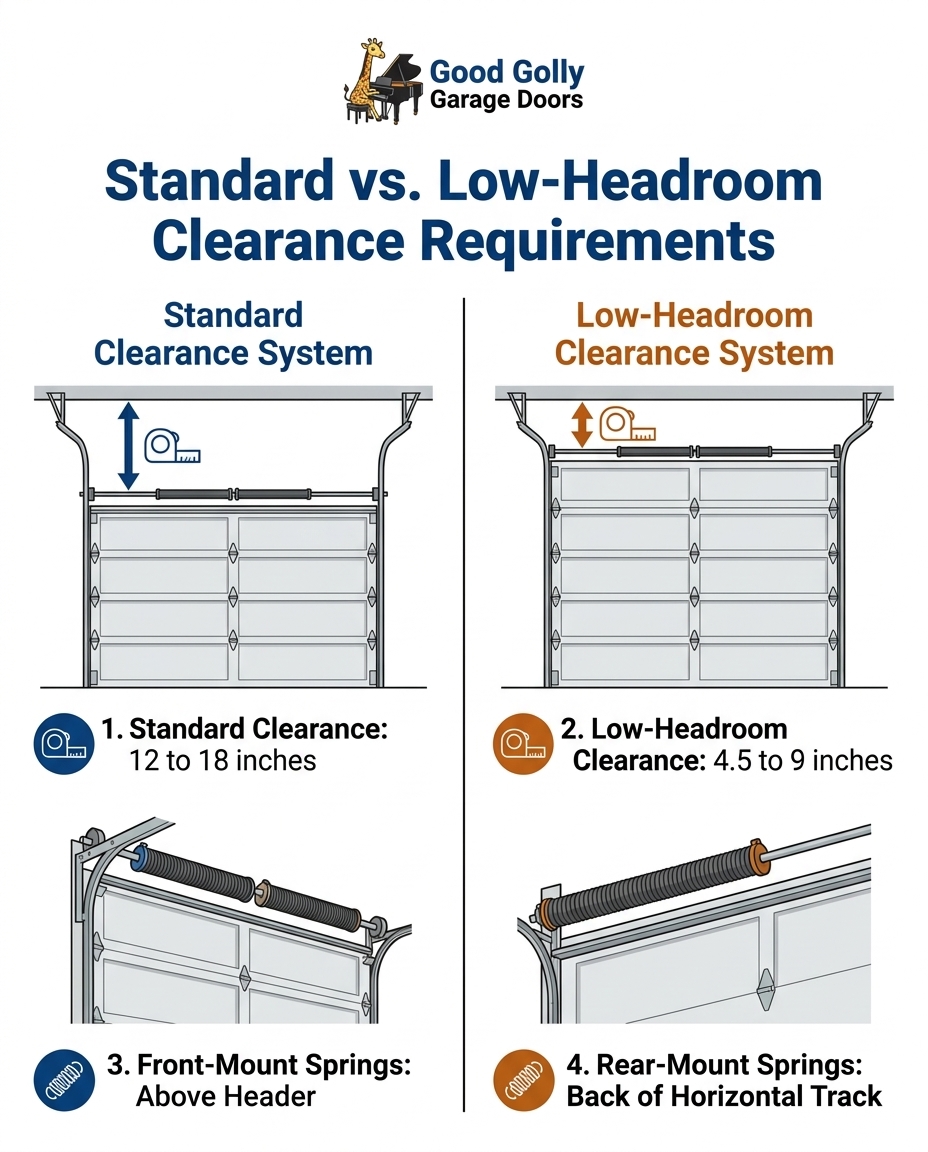

Comparing Clearance Needs

The differences in hardware requirements become stark when you break down the specific dimensions. Here is how standard and low-clearance systems compare:

• Standard Overhead — Minimum Headroom Required: 12 to 18 inches — Track Design: Single continuous radius — Typical Spring Location: Front-mount (above header)

• Low-Headroom (Torsion) — Minimum Headroom Required: 9 to 12 inches — Track Design: Dual-track system — Typical Spring Location: Front or Rear-mount

• Zero-Clearance (Specialized) — Minimum Headroom Required: 4.5 to 9 inches — Track Design: Dual-track with quick-turn — Typical Spring Location: Rear-mount only

If your measurements fall into the lower tiers, consulting with Modesto garage door specialists like our crew at Good Golly Garage Doors ensures that the correct hardware is selected for your specific spatial constraints. Precision is critical here; being off by even half an inch can cause the door to scrape against the ceiling or fail to open completely.

How Dual-Track Hardware Solves the Geometry Problem

The core of a low-headroom conversion relies on a brilliant piece of mechanical engineering: separating the travel path of the top door section from the rest of the panels. In a standard setup, all the rollers follow a single track, which means the track itself must have a wide, sweeping curve to guide the rigid panels around the corner. If you don't have the ceiling height for that sweeping curve, the geometry simply fails.

By modifying standard garage door tracks into a dual-track configuration, technicians can drastically alter how the door navigates that 90-degree turn. A secondary, upper horizontal track is installed exclusively for the top rollers. This clever design allows the top panel to move horizontally almost immediately as the door begins to open, navigating the tight turn without ever striking the ceiling.

The Mechanical Sequence of a Dual-Track System

To picture how dual-track low-headroom hardware operates, follow the mechanical sequence of the door as it opens:

1. Initial lift: The opener engages, pulling the top panel backward.

2. Top roller engagement: The top rollers, which sit in the exclusive upper track, instantly guide the top panel horizontally backward, keeping it perfectly flat against the low ceiling.

3. Lower panel transition: The remaining lower panels follow the standard lower track, which has a much tighter radius than a normal track.

4. Nesting: As the door reaches the fully open position, the lower panels slide in just beneath the top panel, nesting closely together to maximize vertical space.

This separation of travel paths is what makes the entire conversion possible. It is a highly synchronized mechanical dance that requires perfect alignment to prevent the panels from binding against one another as they travel.

Rear-Mount vs. Front-Mount Torsion Springs

Beyond the tracks themselves, the heavy lifting of a garage door is handled by the torsion spring system. Standard garage doors utilize a front-mount torsion spring located directly above the header. This spring stores immense mechanical energy, twisting and untwisting around a steel shaft to counterbalance the heavy weight of the door panels. However, this front-mounted spring block, along with its cable drums, requires several inches of vertical space.

When overhead space is severely restricted, that front-mount configuration becomes physically impossible. The spring block must be relocated to prevent interference with the door's travel path. The solution is the rear-mount torsion spring system.

Shifting the Mechanical Load

In a rear-mount setup, the torsion springs and the torsion bar are moved all the way to the back of the horizontal tracks, near where the garage door motor is typically mounted. This configuration shifts the mechanical load entirely, freeing up the precious inches above the door header.

Key differences in a rear-mount configuration include:

• Cable routing: Because the springs are at the back, the lifting cables must travel the entire depth of the garage. They are often routed outside the vertical track using specially designed pulleys to maintain proper tension.

• Tension dynamics: The springs must be calibrated differently because the angle of the pull has changed. The tension must remain perfectly balanced to prevent the door from slamming down or flying open.

• Structural support: The back of the horizontal tracks must be heavily reinforced with sturdy sway braces, as they are now bearing the rotational torque of the spring system, not just the static weight of the open door.

Rear-mount springs are a masterclass in mechanical load shifting, but they introduce complex cabling routes that must be meticulously installed to prevent the cables from jumping off the drums.

Quick-Turn Brackets and Specialized Roller Integration

While the dual tracks and relocated springs handle the broad strokes of a low-headroom conversion, the smaller hardware components facilitate the actual tight turning radius. Standard top brackets simply hold the roller in a fixed position. In a low-clearance setup, standard brackets would force the top panel too high, causing it to crash into the ceiling.

To solve this, specialized quick-turn brackets are installed on the top section of the door. These brackets are engineered to drastically reduce the radius of the track curve. They allow the top rollers to pivot more sharply than standard hardware permits, encouraging the top panel to lay flat almost instantly.

Precision Alignment and Smooth Operation

Because the mechanical tolerances in a low-headroom setup are incredibly tight, the integration of high-quality wheels and rollers is critical. Precision installation is necessary to prevent binding, scraping, and excessive noise. Even a fraction of an inch of misalignment can cause the door to shudder violently as it navigates the quick-turn brackets.

For instance, during a recent spring service call, our team helped a homeowner who had just installed a new opener and app system but was dealing with messy wiring and a door that operated roughly in a tight space. One of our Good Golly Garage Doors technicians installed new wheels on the tracks, carefully lubricated the original springs, and cleaned up the wiring layout. The result was a system that operated smoothly and quietly, proving that even in confined spaces, the right combination of rollers and proper alignment makes all the difference.

Steel rollers with ball bearings or high-grade nylon rollers are typically used in these conversions. Nylon, in particular, is excellent for reducing the metal-on-metal grinding sounds that can be amplified when tracks are mounted very close to the ceiling joists.

Accommodating Heavy, Insulated Doors in Tight Spaces

A common misconception is that a low ceiling means you have to settle for a flimsy, uninsulated, single-layer steel door just to save space and weight. Low clearance should not mean compromising on energy efficiency, security, or door thickness. This is especially vital in regions where climate control is a major concern.

Modesto experiences intense summer heat, frequently exceeding 90 degrees during the peak months. In older homes, the garage can quickly become an oven, transferring that heat into adjacent living spaces and driving up cooling costs. We always recommend properly insulated garage doors with high R-values and tight weather seals for energy efficiency, and these specialized low-headroom tracks are fully capable of accommodating them.

Balancing Weight and Geometry

Modern dual-track systems are heavily engineered to support the added weight and width of multi-layer insulated garage doors. An insulated door features steel front and back panels with a thick core of polyurethane or polystyrene foam. This makes the panels thicker and substantially heavier.

How the system handles the extra bulk:

• Reinforced horizontal tracks: Heavier gauge steel is used for the tracks to prevent them from bowing under the weight of an insulated door resting in the open position.

• Upgraded rear-mount springs: The torsion springs are custom-sized to counterbalance the exact weight of the insulated panels, ensuring the motor doesn't burn out prematurely.

• Custom weatherstripping: Because the top panel moves differently in a dual-track system, specialized top-seal weatherstripping is installed to ensure no hot drafts enter the garage when the door is fully closed.

Properly adjusted rear-mount springs and reinforced tracks ensure that even the heaviest, most energy-efficient panels operate smoothly within the tightest architectural constraints.

Why Retrofitting Requires Professional Structural Assessment

Garage door mechanics involve immense amounts of stored kinetic energy. Low-headroom conversions, in particular, involve highly tensioned cables, custom spring configurations, and specialized brackets that pose severe safety risks if mishandled. This is definitively not a weekend project for an amateur.

A professional assessment determines exactly which combination of dual-tracks, quick-turn brackets, and spring mounts the specific architecture requires. Every garage is unique, and a one-size-fits-all kit simply will not work when dealing with structural anomalies like dropped ceilings or exposed beams. Professionals ensure the structural integrity of the tracks, verifying that the ceiling joists can handle the torque of a rear-mounted spring system and the static weight of heavy insulated panels.

Prioritizing Safety and Maintenance

Consider a situation our crew handled this past winter: a local homeowner discovered a frayed wire on their garage door system right on a busy holiday weekend. Our Good Golly Garage Doors technician responded quickly, repaired the dangerous frayed wire, and performed a comprehensive maintenance check on both garage doors. This kind of proactive, professional intervention prevents catastrophic failures, especially in complex low-headroom setups where cables run the entire length of the track.

Working with our team, which brings specialized local expertise in retrofitting older architectural styles, means your home gets custom hardware without compromising safety or aesthetics. Thorough explanations of the mechanical issues and solutions prior to installation ensure the hardware matches the specific architectural constraints perfectly. If your system is showing signs of wear or you are considering an upgrade, professional garage door repair and modification services are the only safe path forward.

Exploring Compatible Systems for Your Upgraded Door

A successful low-headroom conversion provides a smooth, safe track for the door to travel, completely bypassing the clearance limits of your older garage. However, the track and spring system is only half of the equation. The next logical step is pairing this newly installed mechanical system with a motor designed to operate within the same space constraints.

Standard trolley-style openers, which sit centrally on the ceiling and pull the door via a rail, often require too much overhead space themselves. In these scenarios, wall-mounted jackshaft openers are frequently the perfect companion to a dual-track conversion, as they mount beside the door and attach directly to the torsion bar, completely freeing up the ceiling.

Consulting with local experts ensures your entire setup works harmoniously to protect and modernize your home. By matching your new tracks with compatible garage door openers for low clearance, you finalize The Mechanics of a Low-Headroom Garage Door Conversion, resulting in a quiet, efficient, and structurally sound system that will serve your home for years to come.

Frequently Asked Questions

What is the minimum headroom for a garage door?

The absolute minimum headroom required for a specialized low-clearance garage door is typically between 4.5 and 9 inches. Standard doors usually require 12 to 18 inches of clearance above the header. Achieving operation in less than 9 inches requires specialized dual-track hardware and rear-mounted torsion springs to safely maneuver the door panels.

How does a low headroom garage door work?

A low headroom garage door works by using a dual-track system that separates the travel path of the top panel from the rest of the door. The top rollers move into an exclusive upper horizontal track, allowing the top section to lay flat almost immediately as the door opens. This prevents the door from swinging upward and striking a low ceiling.

Can you install a garage door with a low ceiling?

Yes, you can install an automated garage door in a space with a low ceiling by utilizing specific mechanical retrofits. Instead of standard tracks, professionals install low-headroom conversion kits featuring quick-turn brackets and relocated spring systems. This allows modern, insulated doors to operate safely in older garages with severe architectural constraints.

What are dual track garage doors?

Dual track garage doors feature two separate horizontal tracks on each side of the door instead of one continuous curve. The upper track is dedicated solely to the top roller, while the lower track guides the remaining rollers. This configuration forces the door to navigate a tight 90-degree turn in a much smaller vertical space than standard hardware allows.

Do low-headroom tracks affect the choice of garage door insulation?

Low-headroom tracks do not prevent you from choosing a thick, well-insulated garage door, provided the hardware is properly calibrated. Multi-layer insulated doors are heavier and thicker, so the dual-track system must be built with reinforced steel and paired with custom-tensioned rear-mount springs. This ensures the heavy door operates smoothly while maintaining a tight weather seal.

Are rear-mount torsion springs safe for heavy garage doors?

Rear-mount torsion springs are incredibly safe and effective for heavy garage doors when installed by a professional. Because they are mounted at the back of the horizontal tracks, they rely on a longer cable routing system to lift the door. The tracks and sway braces must be heavily reinforced to handle the rotational torque and structural load safely.
