Everything You Need to Know About How Garage Door Safety Sensors Work

Why Understanding How Garage Door Safety Sensors Work Could Save Your Family From Serious Harm

How garage door safety sensors work comes down to one simple idea: an invisible infrared beam stretches across the bottom of your garage door opening, and the moment anything breaks that beam — a child, a pet, a bicycle — the door stops and reverses automatically, usually in under one second.

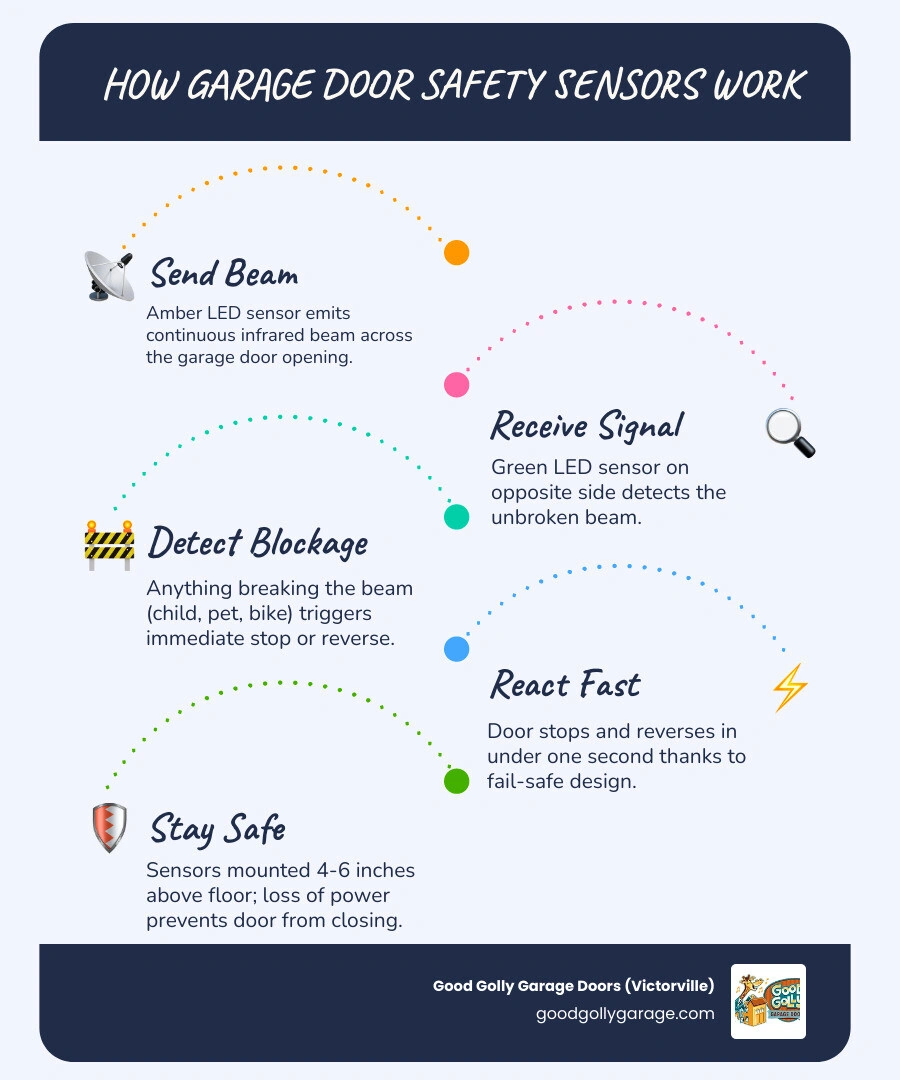

Here is a quick breakdown:

• Sending sensor (amber LED): emits a continuous infrared beam across the door opening
• Receiving sensor (green LED): detects the beam on the opposite side
• Beam is clear: the opener is free to close the door
• Beam is blocked: the opener immediately stops or reverses the door
• Sensors mount: 4 to 6 inches above the floor on both sides of the door frame
• Fail-safe design: if sensors lose power or wiring is cut, the door will not close

These sensors have been required by federal law on all automatic garage door openers since 1993, and the results speak for themselves. Since that mandate took effect, entrapment injuries and fatalities from garage doors have dropped by more than 90%.

That said, sensors can fall out of alignment, collect dust, get damaged, or simply wear out over time — especially here in the High Desert, where Victorville's heat, wind, and blowing dust put extra stress on every part of your garage door system. When that happens, most homeowners have no idea where to start.

This guide walks you through everything: how the technology works, what the warning signs look like, how to test your system, and when it is time to call a professional.

I'm Jason Henderson, founder and CEO of Good Golly Garage Doors, and through years of leading a professional garage door service team across Victorville and the surrounding High Desert communities, I've seen how often sensor problems are misunderstood — and how a clear grasp of how garage door safety sensors work can help homeowners catch small issues before they become serious ones. Let's get into it.

Basic how garage door safety sensors work glossary:

• garage door safety features every homeowner should know
• how to test your garage door safety features

The Science Behind How Garage Door Safety Sensors Work

To understand how garage door safety sensors work, we have to look at the electrical and optical science happening inside those small plastic boxes near the bottom of your garage door tracks.

Every modern residential garage door opener utilizes a paired photoelectric eye system. This setup consists of an infrared transmitter (the sending unit) on one side of the door and a photodiode receiver (the receiving unit) on the other.

The infrared transmitter contains a light-emitting diode (LED) that projects a continuous beam of low-frequency infrared light. Because infrared light sits just outside the visible spectrum for human eyes, this beam remains completely invisible to us. On the receiving end, the photodiode receiver acts as a light-sensitive switch. When this receiver detects the specific wavelength of the incoming infrared light, it allows the garage door opener's control board to initiate or complete the closing cycle.

This system relies on low-voltage wiring to connect both sensors back to the main motor unit (often referred to as the operator). Rather than using complex multi-wire cables, most manufacturers use a clever two-wire circuit. These two wires carry both the low-voltage DC power required to light the transmitter and the return communication signal from the receiver.

To prevent the receiver from being fooled by other ambient light sources — such as bright High Desert sunlight, car headlights, or outdoor security lights — the transmitter does not emit a steady stream of light. Instead, it uses signal modulation. The transmitter pulses the infrared beam at a highly specific frequency. The receiving photodiode is programmed to only look for this exact pulse pattern. If it detects steady light (like sunlight) or no light at all, it registers an obstruction.

Finally, the entire electrical circuit is built around a fail-safe design. In engineering, a fail-safe system is one that defaults to a safe state if any part of the system fails. If a wire is accidentally cut, if a sensor loses power, or if the internal components wear out, the circuit is broken. Because the receiver can no longer detect the modulated beam, the garage door opener assumes there is an obstruction and refuses to close the door. This ensures that a broken safety system can never result in an active, unprotected closing door.

Homeowner Guide on How Garage Door Safety Sensors Work

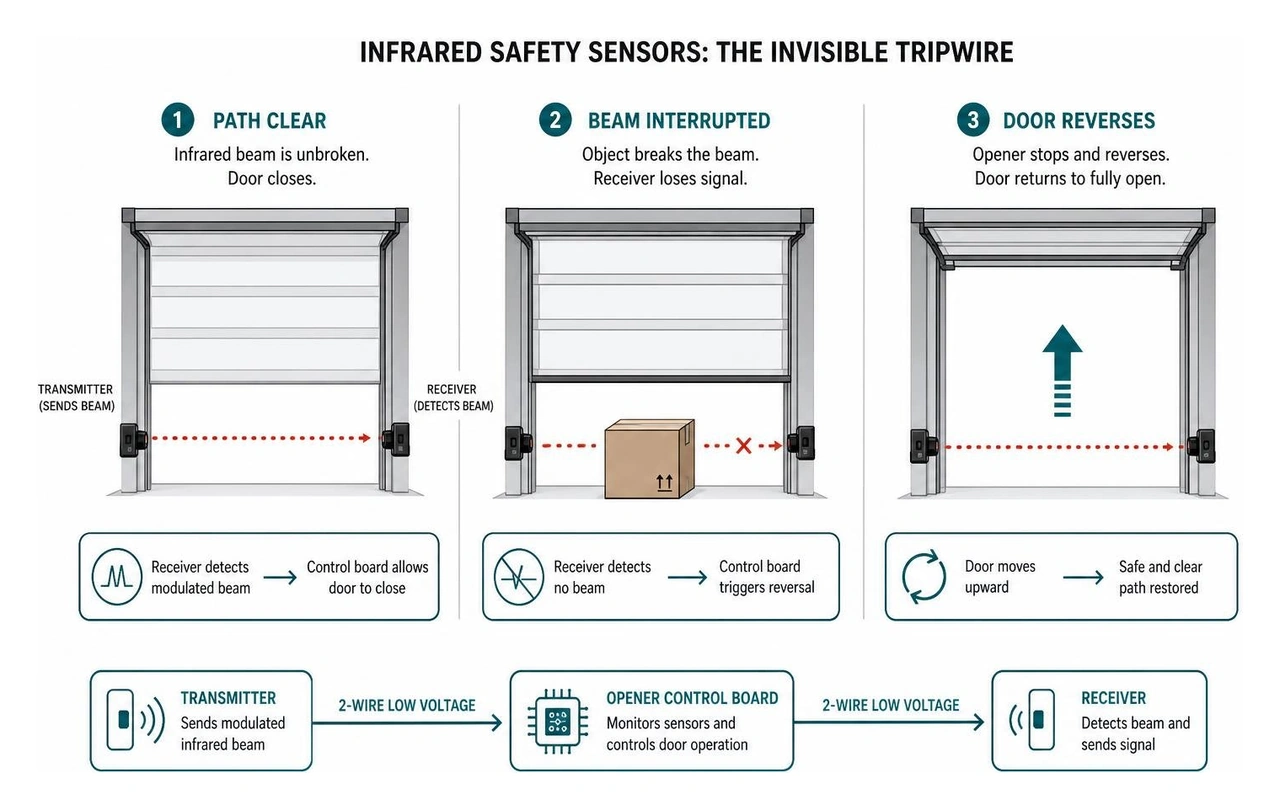

For the average homeowner, it helps to think of how garage door safety sensors work as an invisible tripwire. This tripwire is continuously active whenever the garage door is in motion.

When you press the wall button or your remote control to close the door, the opener's logic board checks the status of this tripwire. If the path is clear, the motor lowers the heavy door. However, if any object breaks that invisible line of light — even for a millisecond — the receiver instantly stops reporting the signal to the control board. The opener's reaction time is incredibly fast, stopping the downward momentum and reversing the door back to the fully open position in less than a second.

While the optical sensors handle the physical path of the door, modern openers also utilize radio frequency communication (typically around 315MHz to 390MHz) for remotes and keypad entry. These frequencies are heavily secured with rolling codes to prevent signal theft. It is important to note that while radio frequencies handle the command to open or close the door, the physical safety sensors always have the final say. If the sensors detect a block, no wireless command can override the safety reversal unless you physically hold down the wall button inside the garage.

To learn more about how these components interface with other protective systems in your garage, read our guide on garage door safety features every homeowner should know.

Sending vs. Receiving Sensors

Many homeowners do not realize that the two sensors on either side of their garage door are not identical. One is designed to send the light, while the other is designed to receive it. Telling them apart is crucial when you are trying to diagnose a malfunction.

The easiest way to identify which sensor is which is by looking at the built-in LED indicator lights:

• The Sending Sensor (Amber/Yellow LED): This unit contains the infrared emitter. Its indicator light is typically amber, yellow, or red (depending on the brand). Because this sensor only needs power to emit its beam, its LED light will remain solid as long as the opener is plugged in and the low-voltage wiring is connected properly. It does not care where the other sensor is pointing.
• The Receiving Sensor (Green LED): This unit contains the photodiode receiver. Its indicator light is almost always green. The green LED will only glow steadily when the sensor is receiving power and is perfectly aligned with the sending sensor. If the green light is blinking or completely off, it means the receiver is not detecting the infrared beam.

Beyond the LED colors, some manufacturers use distinct lens shapes or model identifiers printed on the plastic housings. For example, the sending lens might appear slightly recessed or clear, while the receiving lens has a wider, dome-like shape to help capture the incoming light beam.

Proper Installation and Alignment Standards

Because safety sensors are designed to protect children, pets, and low-lying objects, their physical placement is strictly regulated.

According to UL 325 safety standards and guidelines established by the Consumer Product Safety Commission, garage door safety sensors must be mounted on both sides of the door frame, with the infrared beam positioned no higher than 6 inches (15 cm) above the garage floor. The recommended sweet spot for installation is between 4 and 6 inches.

If the sensors are mounted too high — say, 12 inches off the ground — a small pet or a crawling toddler could easily pass underneath the beam undetected, creating a severe entrapment hazard. Conversely, mounting them too close to the floor (under 2 inches) makes them highly susceptible to being blocked by small piles of dirt, leaves, or minor floor buckling.

The sensors are secured to the vertical tracks or the garage wall using adjustable metal mounting brackets. These brackets allow you to pivot, tilt, and slide the sensors slightly to achieve a direct line of sight. Because the infrared beam is highly directional, even a slight misalignment of 10 to 15 degrees can cause the receiver to lose the signal, preventing the door from closing.

High Desert Environmental Factors Affecting Alignment

In our service areas across the High Desert — from Victorville and Hesperia to Apple Valley, Barstow, and the mountain communities of Wrightwood and Big Bear — environmental factors play a massive role in sensor performance.

• Victorville Wind and Vibration: The High Desert is famous for strong wind gusts. These winds put pressure on your garage door panels, causing the tracks to vibrate. Over time, constant vibration can loosen the wing nuts on your sensor brackets, causing them to slowly drift out of alignment.
• Desert Dust and Sand: Blowing dust is a daily reality in communities like Adelanto, Phelan, and Oak Hills. Fine layers of desert dust easily settle over the glass lenses of your safety eyes. If the dust layer becomes thick enough, it will scatter the infrared beam, leading the system to believe there is a physical obstruction.
• Extreme Heat and Thermal Expansion: During summer, temperatures in the High Desert can climb well past 100 degrees. This extreme heat causes the metal tracks and brackets to expand slightly. In unheated garages, this thermal expansion can warp or shift mounting brackets just enough to break the alignment between the sending and receiving eyes.

For a deeper look at how local weather affects your home's entry points, check out our garage door safety guide for homeowners 2026.

Troubleshooting and Testing Your Safety System

Regular testing is the only way to ensure your safety system is fully operational. We recommend testing your sensors at least once a month. It takes less than five minutes and requires no special tools.

To perform the Obstruction Test (Cardboard Box Method):

1. Open your garage door completely.
2. Place a solid object, such as a cardboard box that is at least 12 inches tall, directly in the path of the door. Ensure the box breaks the line between the two safety sensors.
3. Stand a safe distance away and press your wall button or remote control to close the door.
4. The Correct Result: The garage door should refuse to close, or it should travel downward slightly, stop, and immediately reverse back to the open position. The overhead opener lights will usually flash 10 times to signal a sensor block.
5. If the door continues to close and crushes the box, immediately stop the door. Your safety sensors are malfunctioning, and you should disconnect your automatic opener until they are repaired.

To perform the Force Reversal Test (2x4 Wood Block Method):

While the safety eyes prevent the door from hitting an object, the force reversal system is a secondary safety feature built into the motor itself. It detects physical resistance if the door actually makes contact with an object.

1. Place a flat 2-x-4 piece of wood or a solid block on the garage floor, flat in the center of the door's path.
2. Press the button to close the door.
3. When the bottom edge of the door strikes the wood block, the motor should detect the sudden resistance, stop, and reverse back to the open position within two seconds.
4. If the door does not reverse and continues to push down against the block, the force settings on your opener need immediate adjustment.

If you want a step-by-step walkthrough of these procedures, refer to our guide on how to test your garage door safety features.

Troubleshooting Tips for How Garage Door Safety Sensors Work

If your garage door won't close and you suspect the sensors are the culprit, here are the most common issues and how to resolve them:

• Dirty Lenses: This is the most common issue in sandy desert areas like Barstow and Helendale. Take a soft, dry microfiber cloth and gently wipe the glass lenses on both the sending and receiving sensors. Avoid using harsh chemicals or abrasive paper towels, which can scratch the plastic lens and permanently distort the beam.
• Sunlight Interference: Bright morning or evening sun shining directly into the lens of the receiving sensor can overwhelm the photodiode, making it unable to detect the modulated infrared beam. If your door only acts up at specific times of the day, you can build a simple cardboard tube shield. Cut a small section of a toilet paper roll or a clean cardboard tube and slip it over the receiving sensor's hood. This acts as a sun visor, blocking the direct sunlight while allowing the straight infrared beam to pass through.
• Physical Misalignment: If the brackets have been bumped by a trash can or a bicycle tire, they will point in different directions. Loosen the wing nut on the bracket, gently wiggle the sensor until the receiving light glows solid green, and then carefully tighten the hardware back down.

Understanding LED Indicator Lights

The LED lights on your safety sensors are your best diagnostic tool. When something goes wrong, their behavior tells you exactly where to look.

• Both Lights Glow Solid (Amber & Green): The system is healthy. Power is flowing, and the sensors are properly aligned. If your door still won't close, the issue lies elsewhere (such as the opener's travel limits or a broken spring).
• Sending Light (Amber) is Solid, Receiving Light (Green) is Completely Off: The receiving sensor is not getting power, or the infrared beam is completely blocked or severely misaligned. First, check for physical obstructions. If the path is clear, try aligning the sensors.
• Receiving Light (Green) is Blinking: This indicates a weak signal or partial misalignment. The receiver can "see" the beam, but not clearly enough to operate safely. Gently adjust the angle of the sensors until the blinking stops and the light turns solid.
• Both Lights are Completely Off: This points to a power issue. Check to make sure the garage door opener is plugged into a working outlet. If it is, inspect the low-voltage wiring running from the sensors up to the motor. Look for staples that may have pinched the wires, loose wire nuts at the back of the sensors, or wires that have been chewed by rodents along the wall.

Frequently Asked Questions About Garage Door Sensors

Can I bypass my garage door safety sensors?

Technically, you can temporarily override the safety sensors to close your door in an emergency. If your sensors are broken but you need to secure your home, you can press and hold down the wall button inside your garage. You must keep the button held down continuously until the door is completely closed. If you let go before the door touches the ground, it will immediately reverse.

Note: You cannot bypass the sensors using a wireless remote control or a smartphone app.

While this override exists for emergencies, we strongly discourage doing this regularly. Operating a garage door without functioning safety sensors poses a massive safety risk to your family, pets, and vehicles. It also violates UL 325 safety standards. If you are experiencing persistent sensor issues, it is always best to have them repaired immediately.

Why does my garage door reverse immediately after touching the floor?

If your door travels all the way down, touches the floor, and then immediately reverses back to the open position, the issue is rarely the safety sensors. Instead, this is usually caused by misadjusted travel limits or a misconfigured close-limit switch.

Over time, your garage door opener's internal gears wear down, or the door's weather stripping settles. This can cause the opener to think the door should travel slightly further than it actually can. When the door hits the hard concrete floor before the motor thinks it has reached its "close limit," the system registers the floor as an obstruction and triggers the force-reverse safety mechanism. Adjusting the "down travel" screw on the side of your opener motor by a fraction of an inch will usually resolve this problem.

Are garage door safety sensors universal across different brands?

No, garage door safety sensors are not entirely universal. While almost all modern sensors use the same basic photoelectric technology, different brands (such as Chamberlain/LiftMaster, Genie, and Linear) operate on slightly different voltages and communication protocols.

For example, a Genie sensor will not work when wired to a LiftMaster opener. When replacing damaged sensors, you must purchase OEM (Original Equipment Manufacturer) replacements or third-party sensors that are explicitly certified as compatible with your specific opener brand and model year.

Conclusion

Your garage door safety sensors are small, but they carry a massive responsibility. By keeping an invisible watch over your garage threshold, they prevent damage to your vehicles, protect your pets, and keep your children safe from one of the heaviest moving objects in your home.

Living in the High Desert means dealing with unique challenges — like the swirling dust in Hesperia, the intense summer heat of Adelanto, and the freezing winter shifts in Wrightwood and Big Bear. All of these factors can take a toll on your garage door's delicate alignment.

If you have tried cleaning, aligning, and checking the wires on your sensors and your door still refuses to close, don't let the frustration get the best of you. Our experienced team at Good Golly Garage Doors is always here to help. We understand High Desert conditions, and we pride ourselves on providing fast, honest, and reliable service to keep your home safe and secure.
