How to Diagnose Garage Door Sagging in 7 Steps

Is Your Garage Door Sagging or Uneven? Here's What to Check First

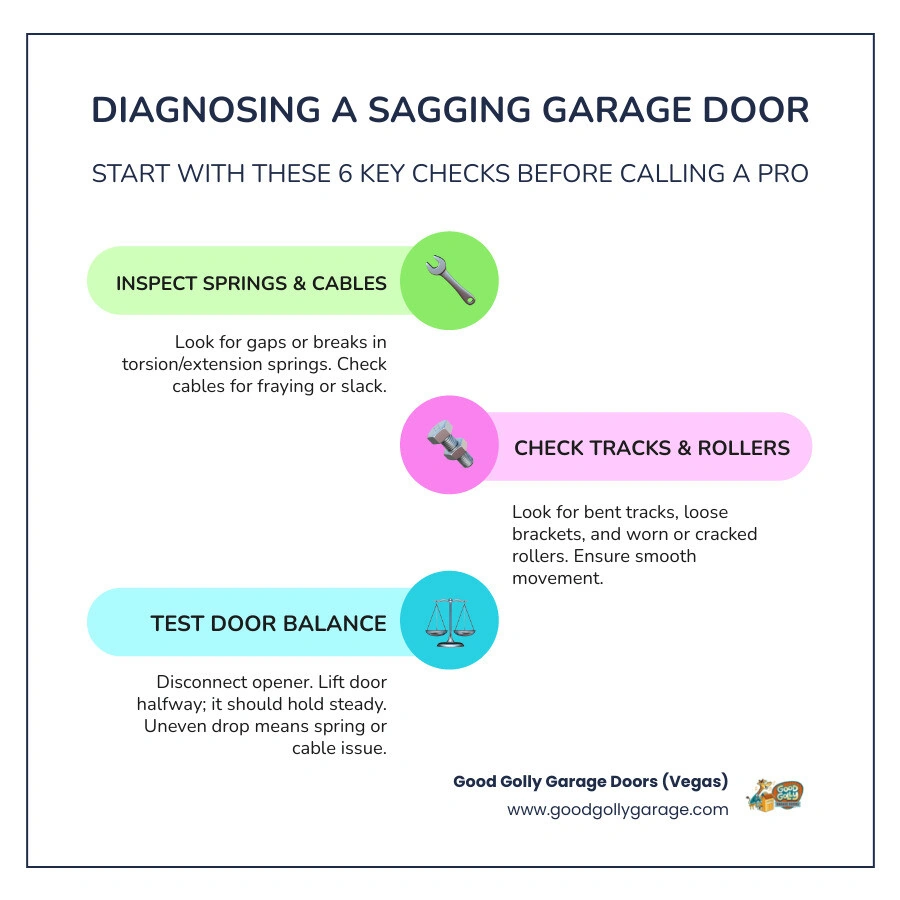

If you're dealing with a sagging or uneven garage door, what to check first comes down to six key areas:

1. Springs - Look for visible gaps, breaks, or uneven coil spacing
2. Cables - Check for fraying, slack, or slippage off the drum
3. Tracks - Inspect for bends, obstructions, or loose mounting brackets
4. Rollers and hinges - Look for worn, cracked, or loose hardware
5. Bottom seal and floor - Check if the gap is even across the full width of the door
6. Door balance - Disconnect the opener, manually lift the door halfway, and see if it holds in place

Most of the time, the problem traces back to one of these six components — and catching it early makes a real difference.

Your garage door is the largest moving part of your home. Most residential doors weigh between 150 and 300 pounds, and they rely on a precisely balanced system of springs, cables, drums, and tracks to move safely every single day. When something in that system shifts — even slightly — the whole door can start to sag, tilt, or gap at the floor.

And it's rarely just a cosmetic issue. An uneven door is almost always a symptom of something mechanical or structural that's getting worse with every cycle. In Las Vegas, the desert heat and fine dust add extra stress to that system, accelerating wear on metal components and drying out the lubrication that keeps everything moving smoothly.

I'm Jason Henderson, founder and CEO of Good Golly Garage Doors, and over the years leading service-based teams in the home services industry, I've seen how a sagging or uneven garage door goes from a minor nuisance to a full system failure when ignored. In this guide, I'll walk you through exactly how to diagnose the problem — safely, step by step.

Simple guide to sagging or uneven garage door what to check:

• garage door making grinding noise what it means
• garage door shaking or vibrating during operation
• signs your garage door needs repair

Why Your Garage Door Is Leaning: Common Causes of Alignment Issues

When a garage door starts acting like "The Lean Mean Machine," it is usually trying to tell you that its weight is no longer distributed evenly. Because residential doors are so heavy, they do not lift themselves by sheer brute force. Instead, they rely on a counterbalanced system where springs provide the lifting power, cables transfer that force, and tracks guide the rollers along a straight path.

If any single component in this sequence fails, the entire balance is ruined. Over time, normal wear and tear takes a toll on these hardworking parts. In our dry Southern Nevada climate, fine desert dust acts like sandpaper inside the tracks, while extreme summer heat causes metal components to expand, contract, and gradually lose their alignment.

When one side of the door starts hanging lower, or if the door strikes a strange "limbo pose" on its way up, the issue is almost always mechanical. To find out what is causing this lopsided behavior, we have to look closely at the hardware that keeps the system moving. For a complete breakdown of these mechanical issues, check out The Most Common Garage Door Problems and What They Actually Mean.

Sagging or Uneven Garage Door What to Check: Visual Signs of Misalignment

Before pulling out any tools, you can gather a wealth of diagnostic information simply by watching and listening to your door operate. A healthy garage door should glide smoothly, quietly, and levelly from top to bottom. If yours is struggling, look for these common warning signs:

• Lopsided Appearance: When the door is fully closed, does one side sit noticeably lower than the other? Is there a visible gap at the bottom corner on one side while the other side is flush against the floor?
• Visual Gaps: Look at the top and sides of the door when closed. Gaps between the door panels and the weatherstripping indicate that the door is sitting crookedly in its tracks. In Las Vegas, these gaps are an open invitation for dust, hot air, and desert pests like scorpions, spiders, and rodents to slip inside your garage.
• Jerky Movement: Watch the door as it opens and closes. If it shakes, stutters, or tilts to one side before leveling out, the system is struggling to balance the weight.
• Grinding Noises: A misaligned door forces the rollers to scrape against the track walls. If you hear loud grinding, squeaking, popping, or scraping sounds, it is a clear sign of track resistance or worn-out rollers.
• Uneven Wear: Inspect the rollers and tracks on both sides. If the rollers on one side are heavily worn, flattened, or shaved down compared to the other side, they are carrying far more weight than they were designed to handle.

The Role of Springs, Cables, and Tracks in Door Balance

To understand why your door is sagging, it helps to understand how these three crucial components work together:

1. The Springs (Torsion vs. Extension): Springs are the muscles of your garage door. Torsion springs sit on a metal shaft directly above the door opening, while extension springs run horizontally along the overhead tracks. They are tightly wound or stretched to store potential energy, which counteracts the heavy weight of the door. As springs age, they undergo "spring fatigue," gradually losing their elasticity until they can no longer lift their fair share of the load.
2. The Lift Cables and Drums: Steel lift cables run from the bottom brackets of your door up to the cable drums at the top corners. When the springs unwind, they spin the drums, which wind up the cables and lift the door. If a cable stretches, frays, or slips off its drum, the lifting force on that side vanishes instantly, causing that side of the door to sag.
3. The Tracks: Your tracks act as the highway for your door. If a track is bumped by a car, garbage can, or lawnmower, it can bend out of alignment. This creates friction and track resistance, making it difficult for the rollers to pass through and causing the door to hang unevenly.

How to Diagnose Garage Door Sagging in 7 Steps

To help you narrow down the root cause of your uneven door, we have put together a simple diagnostic guide. Before we dive into the step-by-step process, let's look at how spring type affects the symptoms you might observe.

Let's walk through the seven diagnostic steps to pinpoint exactly what is causing your garage door to sag.

Step 1: Perform a Visual Inspection of the Hardware

Start your diagnosis with a thorough, top-to-bottom visual inspection of the door's structural hardware. Over time, the daily vibrations from opening and closing the door can back out screws and loosen bolts.

• Check the Hinges: Inspect the steel hinges that connect your door panels. Look for loose screws, cracks in the metal, or bent hinge plates. Loose hinges allow the panels to play or sag, causing the door to bow in the middle.
• Inspect the Rollers: Look closely at the rollers. Are they wobbly, cracked, or missing bearings? Upgrading from traditional metal rollers to sealed nylon rollers is highly recommended; they run much quieter, require less lubrication, and are far less prone to seizing up.
• Examine the Panels: Look at the individual door panels for structural damage. Wooden panels can absorb moisture and warp over time, while metal panels can bow or sag if they lack proper horizontal reinforcement struts. If you notice localized damage to a single section, you might wonder: Can I Replace Just the Garage Door Panel? The answer is often yes, which can save you from replacing the entire door.

Step 2: Check the Bottom Seal and Floor Level

Sometimes, a gap at the bottom of your garage door isn't a mechanical issue at all — it's a structural one.

• Inspect the Bottom Weatherstripping: Check the rubber bottom seal. If it is cracked, torn, or flattened on one side, it will create an uneven gap even if the door itself is perfectly level.
• Measure the Floor Level: Place a carpenter's level directly on the concrete floor across your garage opening. Soil erosion, foundation settling, and shifting ground can cause your garage floor or driveway to sink on one side.
• Verify with the Door Panels: To confirm whether the issue is the floor or the door, place your level directly on top of one of the middle door panels. If the panel is perfectly level but you still have a gap at the bottom, your concrete floor has settled. In these cases, installing a specialized, extra-thick garage floor seal or an adjustable bottom weatherstrip can close the gap without altering your door's mechanical alignment.

Step 3: Inspect the Cables for Fraying or Slippage

Your lift cables are made of heavy-duty galvanized steel wire, but they are not invincible. Because they carry immense tension, any sign of wear is an immediate safety hazard.

• Look for Fraying: Without touching the cables, use a flashlight to inspect their entire length. Look for "fuzzy" spots, loose wire strands, or visible rust. If you spot these, read our guide on Frayed Garage Door Cable Warning Signs immediately.

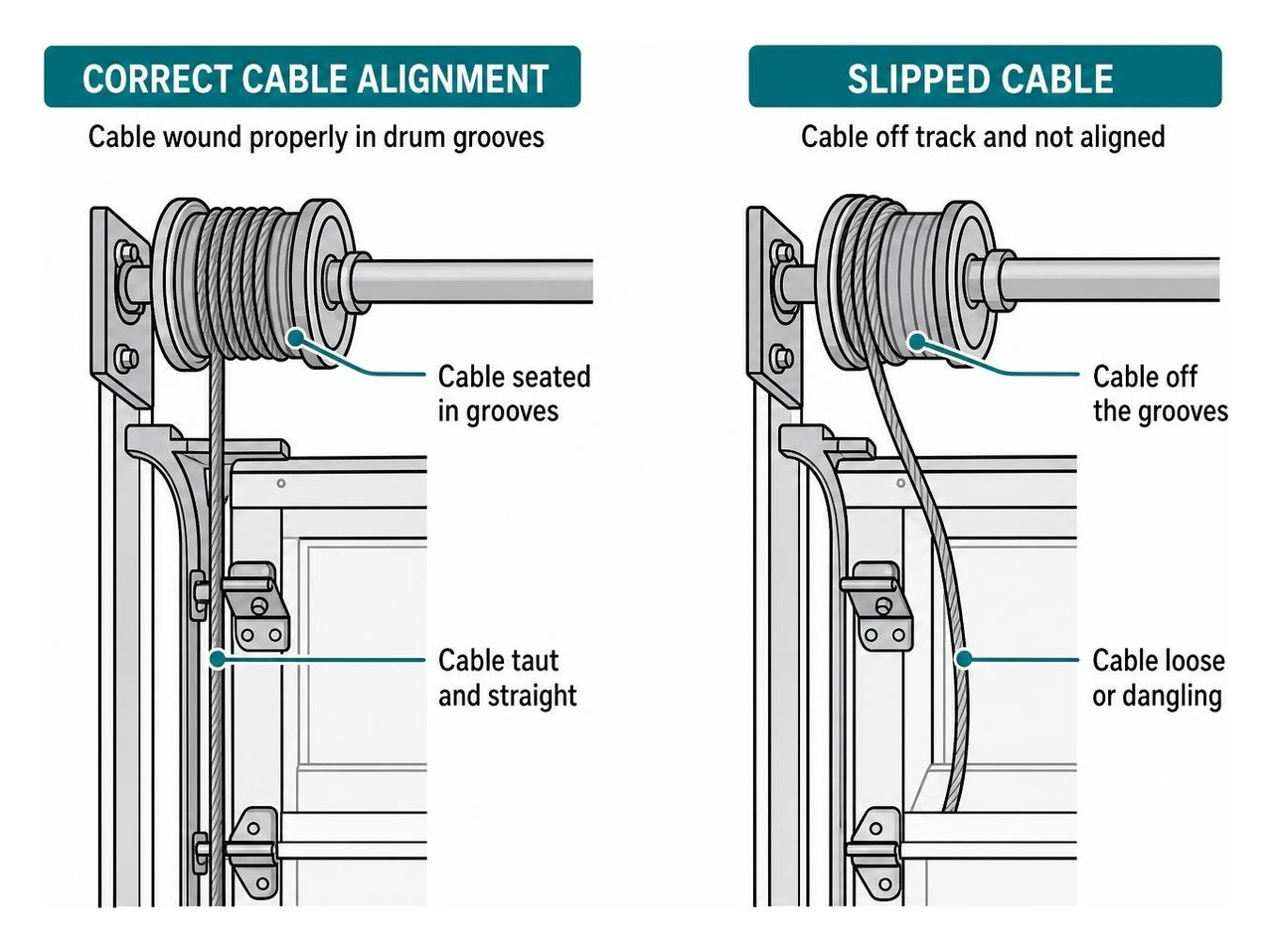

• Check the Cable Drums: Look at the cylindrical drums at the top corners of the door. The cables should be wound neatly and tightly inside the drum grooves. If a cable has slipped off its track or is dangling loosely, the door will hang crookedly.
• Identify Cable Slack: A loose cable on one side almost always points to a spring issue on that same side. Because the spring has lost its tension, there is no upward force pulling the cable taut. If your cables are compromised, you will need to schedule a professional Garage Door Cable Repair to restore safe operation.

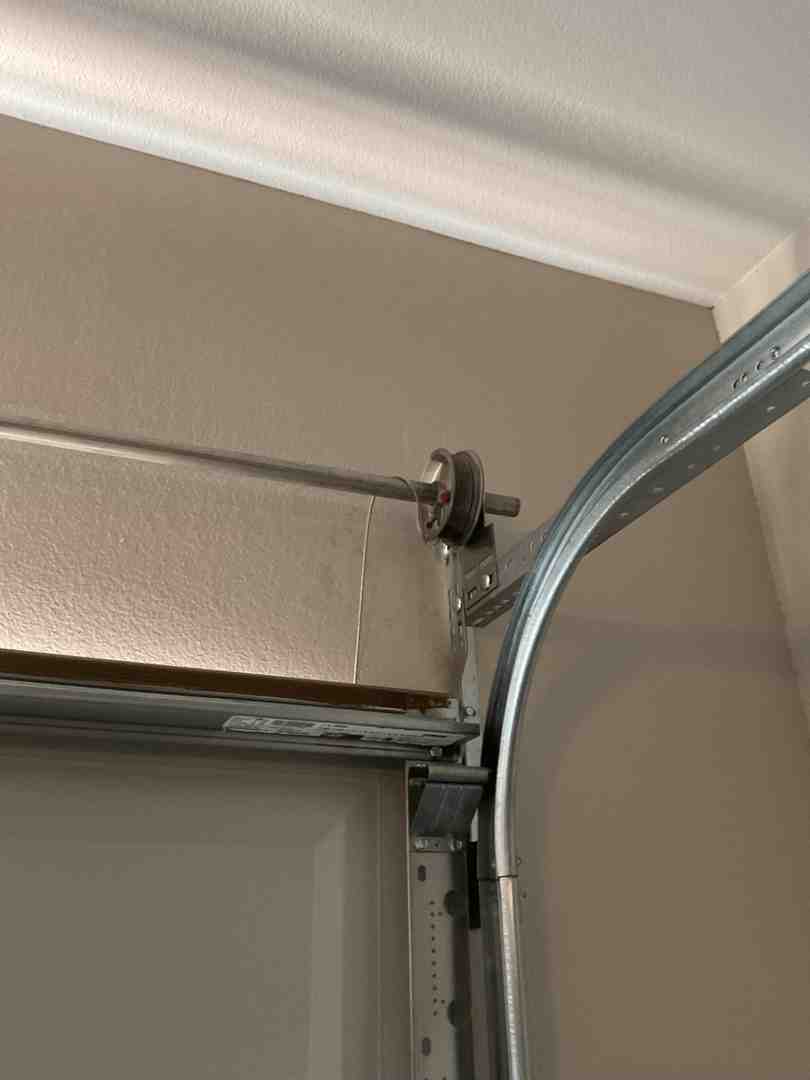

Step 4: Examine the Tracks for Bends or Obstructions

Your garage door tracks must be perfectly vertical and aligned to allow the rollers to glide without resistance.

• Check for Obstructions: Look inside the tracks for built-up debris, pebbles, dried leaves, or hardened grease. In Las Vegas, fine blowing dust can mix with old lubricant to form a thick, sticky paste that acts like a brake on your rollers. Clean the tracks using a damp cloth (never use WD-40, as it attracts more dust; stick to silicone-based lubricants instead).
• Inspect for Bends: Look for localized dents or bends in the track walls. These are often caused by accidentally bumping the tracks with a car bumper, a lawnmower, or a heavy trash bin.
• Check the Mounting Brackets: Inspect the brackets holding the tracks to the wall. If the mounting bolts have vibrated loose, the track can shift outward, causing the door to bind or hang lopsidedly. You can perform a simple DIY fix by slightly loosening the track brackets, using a level to align the track vertically, and then tightening the bolts securely.

Step 5: Test the Torsion or Extension Springs

Your springs are designed for a specific lifespan, typically measured in "cycles" (one open and one close). A standard torsion spring lasts about 15,000 to 20,000 cycles, which equates to roughly 7 to 10 years of daily use.

• Look for Visible Breaks: Inspect your springs visually. If you have a torsion spring, look for a clear, 2-inch gap in the middle of the coils. When a torsion spring breaks, it snaps with a sound as loud as a gunshot, completely releasing its tension.
• Check for Spring Fatigue: If the springs are intact but old, they may have lost their tension unevenly. This is especially common with extension springs, where one spring might stretch out faster than the other, causing one side of the door to rise slower than its counterpart.
• Understand the Lifespan: A balanced door enjoys a spring lifespan of 7 to 10 years. However, if the door is neglected or unbalanced, that lifespan is cut down to just 2 to 4 years. For more details on spring maintenance, consult our Garage Door Spring Repair Guide. If you suspect a broken or weakened spring, do not attempt to adjust it yourself; instead, contact a professional for Garage Door Spring Repair.

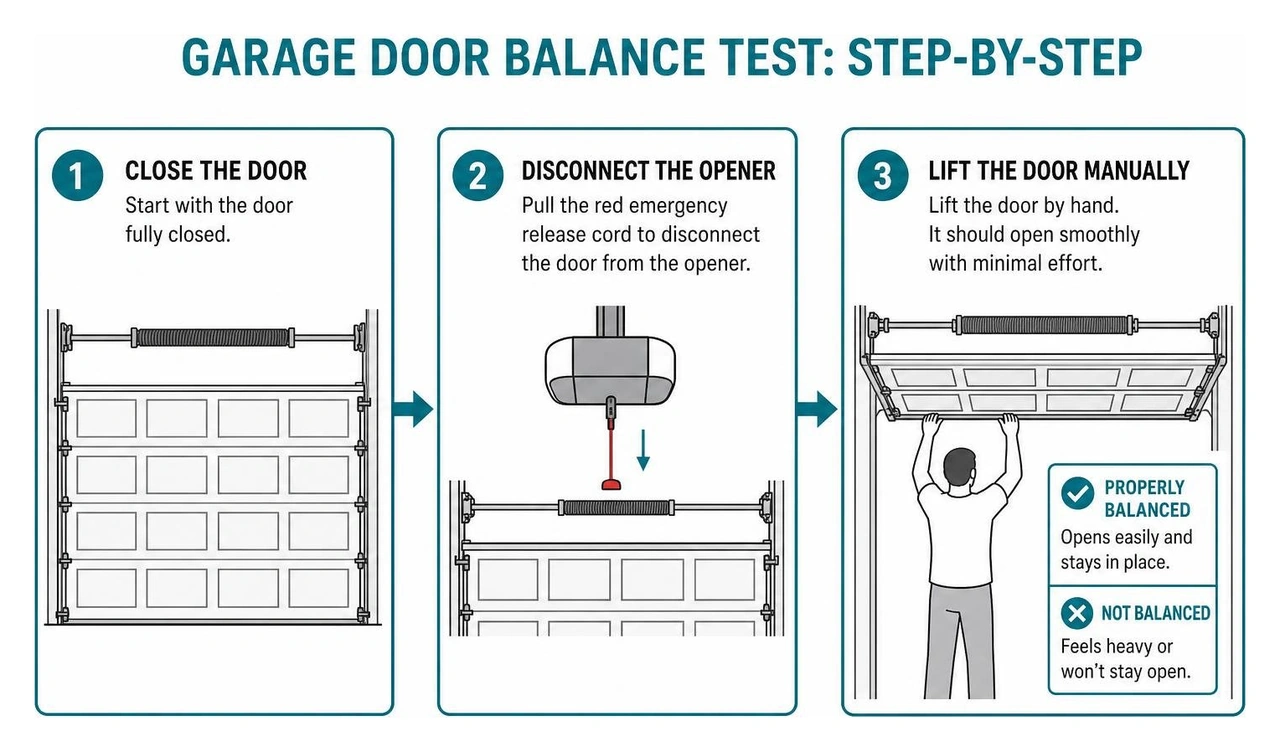

Step 6: Safely Perform a Garage Door Balance Test

The manual balance test is the absolute gold standard for checking the overall health of your garage door system. It isolates the door from the electric opener so you can feel how well the springs are doing their job.

To perform the balance test safely, follow these steps:

1. Close the Door Completely: Always start with the door in the fully closed position to prevent it from crashing down if a component is broken.
2. Disconnect the Opener: Pull the red emergency release cord hanging from the opener carriage. This releases the door from the opener belt, chain, or screw drive.
3. Lift the Door Manually: Gently lift the door by hand. It should open smoothly with minimal effort. If it feels extremely heavy (like dead weight), the springs have lost their tension.
4. Stop at the Halfway Point: Lift the door until it is about halfway open (roughly 3 to 4 feet off the ground) and let go.
5. Observe the Results:
   • If the door stays in place (or hovers slightly), your door is perfectly balanced.
   • If the door crashes to the floor, your springs are weak or broken.
   • If the door shoots upward, your springs have too much tension.
6. Reconnect the Opener: Once the test is complete, pull the emergency cord back toward the opener motor and slide the door manually until it clicks back into the trolley.

Step 7: Evaluate the Garage Door Opener Travel Limits

Sometimes, a door that looks uneven or refuses to close all the way is simply suffering from incorrect electronic settings on the automatic opener.

• Check the Travel Limits: Modern garage door openers have digital or manual limit switches that tell the motor exactly how far to travel before stopping. If these limits are set incorrectly, the opener might push the door too hard against the floor, causing the panels to bow, or stop too early, leaving a gap.
• Inspect the Force Settings: Openers have safety force settings that cause the motor to stop or reverse if it encounters too much resistance. If your tracks are dirty or slightly misaligned, the opener may interpret this friction as an obstruction and reverse mid-travel.
• Never Force It: A common mistake is turning up the opener's force settings to "help" a sticking or uneven door. This is incredibly dangerous. It bypasses the opener's built-in safety features, putting immense strain on the motor and potentially causing the door to crush objects or people.

The Risks of Ignoring a Sagging or Uneven Garage Door What to Check

It can be tempting to ignore a slightly crooked garage door, especially if it still opens and closes when you press the remote. However, an unbalanced door is a ticking time bomb for both your wallet and your home's safety.

Because the system is interconnected, a minor issue on one side will quickly cascade into major damage across the entire system.

Opener Motor Strain and Gear Damage

Your automatic garage door opener is designed to act as a guide, not a lifter. It is only meant to handle a small fraction of the door's actual weight.

• Lifespan Reduction: On a perfectly balanced door, an opener easily lasts 10 to 15 years. On an unbalanced or sagging door, the opener is forced to pull dead weight, reducing its lifespan to just 2 to 5 years.
• Stripped Nylon Gears: Most residential openers utilize internal nylon gears to drive the chain or belt. When forced to lift an unbalanced door, these gears quickly strip, rendering the opener useless and requiring a costly replacement.
• Motor Burnout: The electric motor inside the opener will overheat and eventually burn out from the constant overload, leaving you stranded outside your garage.

Safety Hazards and Sudden Door Failure

A sagging garage door poses a severe risk to your family, pets, and property.

• Injury Statistics: Over 30,000 people are injured by garage doors each year in the United States. Many of these injuries are directly tied to spring failures and unbalanced doors.
• High-Tension Danger: Over 10,000 people are injured specifically by garage door springs every year. A torsion spring on a standard residential door stores a staggering 700 to 800 foot-pounds of energy when fully wound. If a spring or cable snaps while you are nearby, the flying metal can cause catastrophic injuries.
• Sudden Drops: If a lift cable snaps or a spring fails completely while the door is open, the heavy door can come crashing down without warning, crushing vehicles, pets, or anyone standing underneath.

Sagging or Uneven Garage Door What to Check: When DIY Is Too Dangerous

While cleaning tracks, tightening hinge bolts, or replacing a bottom weather seal are perfectly safe DIY projects, high-tension components are a completely different story.

• The Red Line: Never attempt to adjust, wind, or loosen torsion springs, extension springs, lift cables, cable drums, or bottom brackets yourself. These parts carry the full weight of the door and can release deadly force in a fraction of a second.
• Specialized Tools Required: Safely adjusting springs requires professional winding bars, vice grips, and precise tension calculations. Using makeshift tools like screwdrivers or pipe wrenches is a recipe for disaster.
• Costly Mistakes: The repair cost after a DIY attempt goes wrong is typically 3 to 5 times what a professional repair would have cost in the first place. Save yourself the stress, risk, and expense by calling in a certified professional.

Frequently Asked Questions about Uneven Garage Doors

Why is one side of my garage door higher than the other?

This is almost always caused by uneven cable tension or a spring imbalance. If one of your lift cables has stretched, frayed, or slipped out of its drum groove, it will lose its pulling power, causing that side of the door to sag. Alternatively, if you have extension springs and one has lost its elasticity faster than the other, the door will rise unevenly.

Can a sagging garage door damage my automatic opener?

Yes, absolutely. A sagging door creates dead weight that strains the opener motor. Instead of smoothly guiding a balanced door, the opener is forced to pull against friction and uncompensated weight. This extra strain will quickly strip the internal nylon gears, overheat the motor, and reduce your opener's lifespan from 10–15 years down to just 2–5 years.

How often should I check my garage door balance?

We highly recommend performing a manual balance test at least twice a year, ideally during seasonal transitions (like spring and autumn). Extreme temperature swings can cause metal tracks and springs to expand and contract, which gradually alters their alignment. Regular checks allow you to catch minor balance issues before they turn into expensive repairs or safety hazards.

Conclusion

A sagging or uneven garage door is more than just a cosmetic eyesore; it is a clear warning sign that your door's complex counterbalanced system is failing. From worn rollers and bent tracks to fatigued springs and frayed cables, identifying the root cause early is key to keeping your home safe and avoiding costly opener replacements.

At Good Golly Garage Doors, we provide expert garage door repair, installation, and maintenance services across the Las Vegas valley, including Anthem, Green Valley, Henderson, North Las Vegas, Paradise, Summerlin, and Sun City. Our team of skilled, friendly technicians is dedicated to delivering transparent pricing, rapid response times, and dependable workmanship that you can trust.

If your garage door is leaning, shaking, or acting a little too "mean," don't wait for a total system failure. Contact us today to schedule a professional inspection and get your door back on the straight and narrow with our Good Golly Garage Doors Las Vegas Repair Services.
