The Auto Reverse Feature on Garage Doors Explained: What Every Homeowner Needs to Know

Understanding the auto reverse feature on garage doors explained properly could be the difference between a close call and a tragedy. In short, this is a mandatory safety system built into modern garage door openers that automatically stops and reverses the door if it detects a person, pet, or object in its path — either by sensing physical resistance or by detecting a broken infrared beam near the floor.

Here is a quick summary of what the auto reverse feature does and how it works:

• What it is: A federally mandated safety mechanism required on all garage door openers manufactured after January 1, 1993, under the UL 325 safety standard
• How it works: Two independent systems work together — a mechanical force sensor that detects physical resistance, and infrared photo-eye sensors that detect obstructions without contact
• Who it protects: Children, pets, vehicles, and anyone near a closing door
• How to test it: Place a 1.5-inch object (like a flat 2x4 board) on the floor under the door — the door must reverse immediately upon contact
• How often to test it: Every single month, without exception

Most homeowners never think about this system until something goes wrong. But the stakes are real. Since March 1982, approximately 73 children between the ages of 2 and 14 have been killed after becoming trapped under automatic garage doors — roughly three deaths per year. That number dropped significantly after federal safety standards took effect, but only when the system is working correctly and tested regularly.

If you live in Victorville or anywhere in the High Desert, the desert heat, dust, and temperature swings common to this region can quietly affect your garage door's sensors and force settings over time — sometimes without any obvious warning signs.

My name is Jason Henderson, founder and CEO of Good Golly Garage Doors, and with years of hands-on experience in the home service industry and a deep focus on garage door safety, I've seen how often the auto reverse feature on garage doors explained correctly — and maintained consistently — prevents serious injury. In the sections ahead, I'll walk you through exactly how this system works, how to test it yourself, and what to do if something isn't right.

Auto reverse feature on garage doors explained vocab explained:

• garage door safety features every homeowner should know
• how to test your garage door safety features

What Is the Auto Reverse Feature On Garage Doors Explained?

When we talk about the safety of your home, the garage door is often overlooked, yet it is typically the largest and heaviest moving object in any household. A standard residential garage door can weigh anywhere from 150 to over 300 pounds. Without a reliable mechanism to stop this immense weight from coming down, a closing garage door behaves like a giant, motorized guillotine.

To address this severe hazard, the Underwriters Laboratories (UL) established the UL 325 safety standard, and the Consumer Product Safety Commission (CPSC) enacted federal regulations that changed the industry forever. As of January 1, 1993, federal law mandates that all residential garage door openers manufactured or imported for sale in the United States must be equipped with an external entrapment protection system.

Before these strict standards were established, older garage door openers either had no reversing mechanism at all, or relied on primitive mechanical clutches that required far too much force to trigger. Many of those early systems only stopped when they met resistance, rather than reversing, which still left children and pets at extreme risk of entrapment and suffocation.

The modern auto-reverse system is a sophisticated safety net designed to protect your family, pets, and vehicles from devastating crushing injuries. It is not just a single component; rather, it is a multi-layered system designed to fail safely. If any part of the safety system loses power, experiences a broken wire, or goes out of alignment, the garage door opener defaults to a non-closing state. It is a highly effective shield, but it only works if it is properly maintained. To learn more about how these components fit into your home's overall security, check out our guide on Garage Door Safety Features Every Homeowner Should Know.

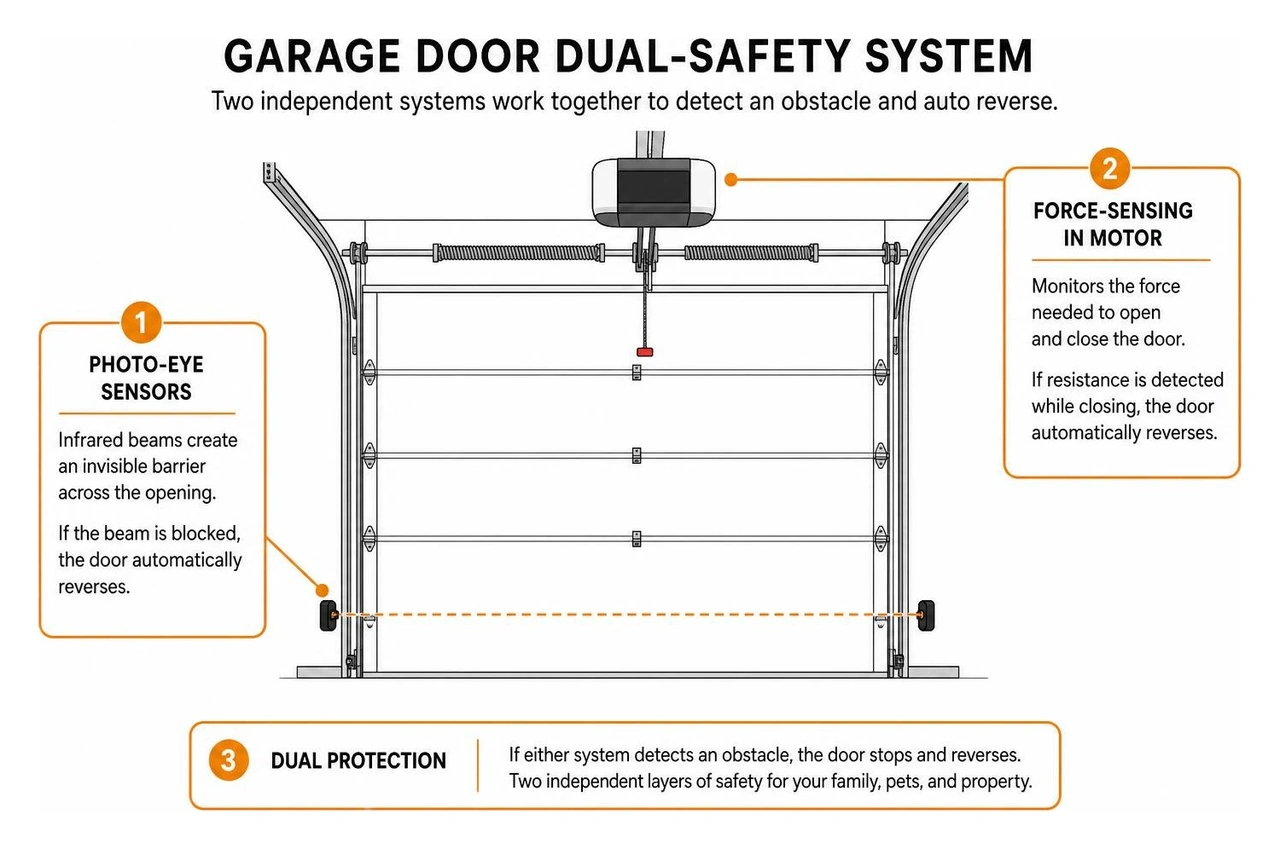

How the Dual-Safety System Works: Force-Sensing vs. Photo-Eye Sensors

Modern garage doors do not rely on just one type of technology to keep you safe. Instead, they use a dual-safety approach that combines non-contact optical sensors with contact-based physical force sensors. These two systems act as independent fail-safes. If one fails to detect an obstacle, the other is designed to catch it.

The first line of defense is the non-contact system, which uses infrared photoelectric eyes mounted on both sides of the door track. The second line of defense is the contact system, which is integrated directly into the opener's motor drive or the bottom edge of the door. Together, they ensure that the door reverses direction before or immediately upon making contact with any object.

If your sensors are acting up, you can learn how to troubleshoot them with our step-by-step guide on How to Fix Garage Door Sensors in 5 Simple Steps.

Understanding Photo-Eyes and the Auto Reverse Feature On Garage Doors Explained

The photoelectric eye system consists of a sending sensor and a receiving sensor, mounted on opposite sides of the garage door frame, no higher than 4 to 6 inches above the garage floor. The sending sensor projects an invisible infrared light beam across the entire width of the garage door opening. As long as the receiving sensor detects this continuous beam of light, the garage door is allowed to close normally.

However, if anything breaks this invisible beam — whether it is a child's foot, a pet running inside, or the bumper of your car — the receiving sensor instantly loses the signal. The logic board in the opener motor immediately stops the downward travel and reverses the door back to the fully open position.

In our High Desert climate, which includes Victorville, Hesperia, and Apple Valley, these optical sensors face unique environmental challenges:

• High Desert Wind and Dust: Stiff desert winds regularly blow fine sand, dirt, and tumbleweeds through our neighborhoods. This dust settles on the photo-eye lenses, blocking the infrared beam and causing the door to reverse falsely.
• Extreme Heat and Sunlight Blinding: Direct, intense desert sunlight can overpower the infrared signal. If the afternoon sun shines directly into the receiver lens, it "blinds" the sensor, making it think the beam is broken.
• Physical Misalignment: Heavy winds or accidentally kicking a sensor while sweeping can bend the mounting brackets, throwing the optical beam out of alignment.

Regularly cleaning the lenses with a soft, dry, lint-free cloth and checking that the LED indicator lights on both sensors are glowing steadily (not blinking) is essential to keeping this system functional.

Mechanical Force Settings and the Auto Reverse Feature On Garage Doors Explained

If an object somehow avoids interrupting the infrared beam — for example, if a low-profile object is positioned in a blind spot between the sensors — the mechanical force-sensing system takes over.

This contact-based safety system monitors the electrical current drawn by the garage door opener motor. When a motor meets physical resistance, it has to work harder, which causes a sudden spike in electrical current. The opener's internal logic board is constantly monitoring this current. If it detects a sudden resistance spike that exceeds a calibrated threshold, it interprets this as a physical obstruction, stops the motor, and reverses the door within two seconds.

The force settings must be precisely calibrated. If the force sensitivity is set too low (meaning it requires too much force to trigger), the door can exert dangerous pressure on an object or person before reversing. Conversely, if the force sensitivity is set too high (making it overly sensitive), the door may falsely reverse when encountering normal, minor resistance, such as cold weather stiffening the tracks or a hardened bottom rubber seal dragging against the concrete.

How to Test Your Garage Door Safety Systems at Home

As a homeowner, you do not need specialized tools or professional training to perform basic safety checks. In fact, both the CPSC and the International Door Association (IDA) recommend testing your safety reversal system every 30 days.

Before starting, it is crucial to perform a quick visual inspection of the springs, cables, rollers, and pulleys for signs of wear. If you have friends or family out of state looking for similar assistance, such as Garage Door Sensor Repair Austin TX, it is always best to advise them to hire a licensed local professional to handle high-tension components.

Here is the official, step-by-step procedure to test your garage door's auto-reverse system safely at home:

1. Check the Physical Balance of the Door: Before testing the electronics, you must ensure the door is mechanically balanced. With the door fully closed, pull the red emergency release cord to disconnect the opener. Lift the door manually. It should open smoothly with minimal resistance and remain suspended on its own about 3 to 4 feet above the floor. If it slams shut or shoots upward, your springs are out of balance, and you should call us immediately. Re-engage the opener before proceeding.
2. The 2x4 Contact Reversal Test: Place a solid 2x4 piece of wood (or any solid 1-1/2 inch thick object) flat on the garage floor, centered directly in the path of the closing door.
3. Close the Door: Stand back and press the wall button or remote control to close the door.
4. Observe the Reversal: When the bottom edge of the door strikes the wood block, the door must stop and immediately reverse back to the fully open position. On modern openers (such as Security+ 2.0 models manufactured after November 2020), a successful obstruction detection will also trigger a notification, causing the opener lights to flash five times and beep.
5. Test the Photo-Eyes: Open the door fully. Press the button to close it, and while it is moving downward, wave a long object (like a broom handle) through the path of the infrared sensors near the floor. The door should instantly reverse without making contact with the broom.

For a comprehensive checklist of all your door's safety mechanisms, refer to our Garage Door Safety Guide for Homeowners 2026.

Why Does My Garage Door Reverse Immediately for No Apparent Reason?

It is incredibly frustrating: you press the remote button to leave for work, the door starts to roll down, gets halfway or almost to the floor, hesitates, and then shoots right back up. You look around, and there is absolutely nothing blocking the path.

This "nuisance tripping" is a common issue, especially in the extreme climate of the High Desert. When this happens, it means one of your safety systems has been triggered by something other than a physical hazard.

To help you diagnose the root cause, we have compiled a quick-reference guide comparing mechanical and optical issues:

If you are dealing with sunlight blinding, you can install inexpensive, specialized sensor sun shields, or simply construct a small cardboard hood over the receiving sensor to shade it from direct afternoon rays.

Never attempt to solve a mechanical friction issue by simply cranking up the "Down Force" or "Close Force" adjustment screws on your opener. Doing so masks a dangerous mechanical problem and can disable the safety reverse feature entirely, creating a severe crushing hazard.

Frequently Asked Questions About Garage Door Safety

Are garage door openers without auto-reverse safe?

No, absolutely not. Any garage door opener manufactured before 1993 that lacks external photo-eye sensors is a major safety hazard. These outdated units rely on mechanical force systems that degrade over time. If a child or pet becomes trapped beneath one, the machine may continue to exert downward pressure, leading to severe injury or death. We highly recommend replacing any pre-1993 opener immediately to protect your household and ensure compliance with modern safety standards.

How often should I test the auto-reverse feature?

You should test both the contact (2x4 test) and non-contact (photo-eye) reversing features every 30 days. It only takes a few minutes, and making it a part of your monthly home maintenance routine ensures that these invisible lifesavers are functioning perfectly when you need them most. You should also re-test the system immediately after making any adjustments to the travel limits, force settings, or after any repairs to the garage floor or door hardware.

What should I do if my garage door fails the safety test?

If your door fails either the 2x4 contact test or the photo-eye interruption test, you should disconnect the automatic opener immediately by pulling the red emergency release cord. Operate the door manually to keep your home secure, and do not re-engage the opener until the system has been inspected and repaired. A failing safety reverse is a critical hazard that requires prompt professional attention.

Conclusion

The auto reverse feature on garage doors explained throughout this guide is not just a technical convenience — it is a vital shield protecting your family, pets, and property. From the photo-eyes that watch the ground to the force sensors that monitor the motor, these systems work tirelessly to prevent accidents.

Here in the High Desert, our extreme weather, blowing dust, and intense summer sun mean our garage doors work much harder than those in milder climates. Regular maintenance and monthly testing are your best defense against unexpected failures.
