Adapting Stucco-Finished Garages for Flush-Mount Door Installations in Las Vegas

The Architectural Shift: Seamless Facades and Flush-Mount Designs

Adapting Stucco-Finished Garages for Flush-Mount Door Installations in Las Vegas often starts with a frustrating realization: your existing garage opening is completely incompatible with the seamless look you desire. At Good Golly Garage Doors, our team typically sees homeowners face this exact hurdle when they want the exterior of their home to flow uninterrupted, with a garage door that blends perfectly into the surrounding walls. However, standard garage openings are built with conventional framing methods that rely on overlapping trim and weatherstripping to hide imperfections. When you remove that trim to create a flush, continuous plane, every minor flaw in the framing becomes glaringly obvious. The transition requires a fundamental shift in how the opening is structured.

For expert guidance on your project, explore our garage door installation services, or consult directly with our Las Vegas garage door experts.

The growing demand for seamless exterior aesthetics has fundamentally changed modern home design. Homeowners increasingly favor flush-mount architectural garage doors that sit perfectly flush with the exterior wall cladding. Instead of acting as a distinct visual break in the facade, these doors are designed to disappear. They are clad in the same materials as the surrounding walls—often wood, composite, or specialized metal—creating a monolithic, high-end appearance.

Why Standard Openings Fall Short

Standard rough openings are fundamentally incompatible with the precision required for seamless integration. Traditional garage doors are designed to overlap the interior framing by an inch or more on each side. This overlap provides a generous margin of error. If the wooden framing is slightly out of plumb, or if the header sags by a fraction of an inch, the overlap and the exterior weatherstripping completely conceal the discrepancy. The door still functions, and the exterior looks normal to the naked eye.

Flush-mount systems eliminate that margin of error entirely. Because the door must sit on the exact same plane as the exterior stucco, there is no overlapping trim to hide behind. The structural opening must be mathematically perfect. This reveals the critical difference between visual inspiration and the strict mechanical realities of flush-plane requirements. Achieving that magazine-cover look requires highly specialized structural modifications before the new door can even be ordered.

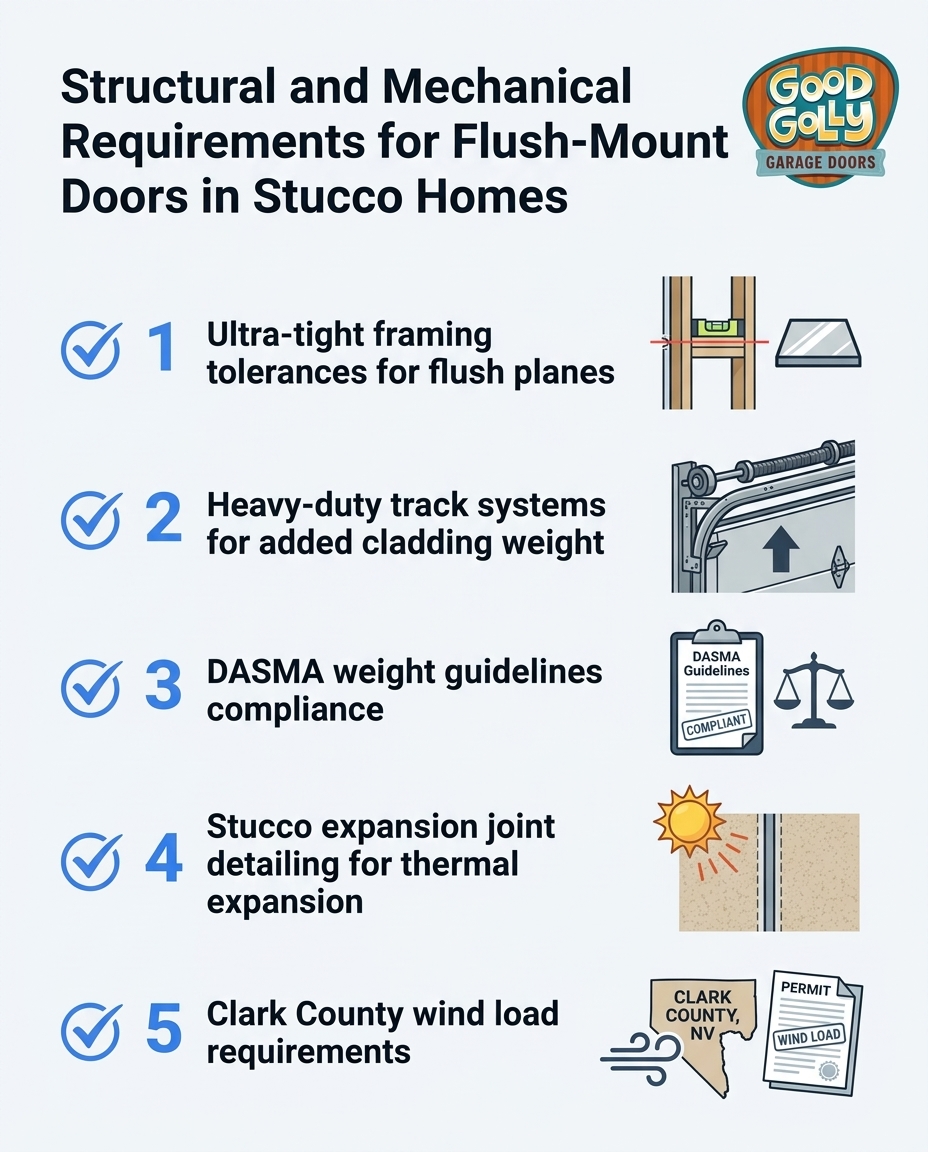

Structural Framing Tolerances for Existing Openings

Transitioning a standard opening to accommodate a flush-mount system requires ultra-tight framing tolerances. In a typical home, framers work within a tolerance of about a quarter to a half-inch. For a flush-mount installation, the tolerance shrinks to an eighth of an inch or less. If the existing framing leans even slightly, the new door will rub against the stucco on one side while leaving a highly visible, uneven gap on the other.

Achieving a true flush plane means that existing headers and jambs must be rigorously evaluated. In most Las Vegas stucco-finished homes, the original rough opening was never designed for this level of precision. Over our years of inspecting local properties, we've noticed that original framing lumber has often twisted or settled, and the stucco itself may have varying thicknesses along the edge of the opening.

What Structural Evaluations Entail

Before any aesthetic upgrades begin, the structural skeleton of the garage opening must be assessed and often rebuilt. This process goes far beyond a simple measurement. A thorough structural evaluation looks at several critical factors:

• Plumb and Level Alignment: Verifying that the side jambs are perfectly vertical and the top header is perfectly horizontal across the entire span.

• Opening Depth Consistency: Ensuring the depth of the jamb is uniform, so the door tracks can be mounted without twisting.

• Header Deflection: Checking if the heavy beam spanning the top of the garage has sagged under the weight of the roof over time.

• Back-Framing Support: Confirming there is adequate solid wood backing to support the heavy-duty hardware required for clad doors.

The precision requirement: Rebuilding the opening often involves stripping the existing stucco back from the edges, installing new, perfectly squared lumber, and reinforcing the entire structural frame to support the new track geometries. This highlights the absolute necessity of professional assessment before committing to an architectural upgrade. Attempting to force a highly precise flush-mount door into an imprecise standard opening always results in mechanical failure and severe aesthetic compromises.

Thermal Expansion: Managing Desert Heat and Exterior Integrity

Integrating flush-mount framing with traditional exterior finishes requires careful management of the local climate. With average summer temperatures regularly exceeding 100 degrees Fahrenheit in the valley, our installation crews know firsthand that thermal expansion becomes a dominant force. Building materials do not remain static; they expand as they heat up and contract as they cool down. When you combine rigid stucco, heavy metal door tracks, and exterior cladding materials, you create a complex environment where differing expansion rates can cause serious damage.

The intense desert heat causes significant thermal expansion in exterior building materials. Standard garage doors have plenty of space around them to expand without hitting the house frame. Flush-mount doors, by design, have almost zero clearance. If the framing and cladding choices do not account for this expansion, the door panels can swell and bind against the sides of the opening during the hottest parts of the afternoon.

Preventing Accelerated Stucco Damage

There is a high risk of accelerated stucco cracking if expansion joints and flush-mount framing are not perfectly integrated. Stucco is extremely rigid. If the heavy metal tracks of the garage door transfer mechanical vibration or thermal expansion pressure directly into the wood framing that holds the stucco, the stucco will fracture. These hairline cracks quickly worsen as temperatures fluctuate, eventually leading to chunks of the exterior finish falling away.

Material considerations for cladding are equally critical. You must select materials that can withstand intense UV exposure and extreme temperature fluctuations without warping, bowing, or fading. For insights on durable exterior options, you can explore finishes that survive the desert sun.

• Natural Wood Cladding — Thermal Expansion Risk: High (warps and bows under extreme heat) — Desert Climate Suitability: Low (requires constant maintenance and UV sealing)

• Composite Wood — Thermal Expansion Risk: Moderate (expands, but resists warping) — Desert Climate Suitability: High (excellent durability if properly gapped)

• Steel / Aluminum — Thermal Expansion Risk: Moderate (expands predictably) — Desert Climate Suitability: High (best dimensional stability in heat)

• Traditional Stucco — Thermal Expansion Risk: Low (rigid, but prone to cracking under stress) — Desert Climate Suitability: High (requires proper expansion joints near moving parts)

Managing this thermal reality requires leaving microscopic, precisely calculated gaps around the door panels and utilizing specialized weather seals that can compress and expand as the materials shift throughout the day.

Mechanical Demands: Track Clearances and Weight Guidelines

The visual appeal of a seamless facade masks the intense mechanical demands operating behind the scenes. The intersection of mechanical track clearance with flush-plane aesthetics requires completely different hardware than a standard installation. Because the door must sit perfectly in line with the exterior wall, the tracks that guide the door up and down must be positioned with absolute precision. There is no room for the tracks to flex or sway during operation.

Flush-mount doors typically require heavier track systems reinforced for added cladding weight. Standard garage doors are relatively light, often weighing between 150 and 200 pounds. Flush-mount architectural garage doors, however, carry the added weight of exterior cladding—whether that is composite wood, heavy metal panels, or specialized laminates. This added material can easily push the total weight of the moving door past 500 or even 800 pounds.

Upgrading the Mechanical Infrastructure

Operating a door of this weight requires commercial-grade infrastructure. We consistently recommend these heavy-duty upgrades because if standard residential tracks and springs are used, the sheer mass of the door will cause the tracks to bend, leading to a catastrophic failure that requires immediate garage door repair. To safely operate these heavy architectural systems, several components must be upgraded:

1. Commercial-Gauge Tracks: Upgrading from standard 15-gauge or 14-gauge steel tracks to ultra-rigid 12-gauge commercial tracks to prevent bending.

2. High-Cycle Torsion Springs: Installing custom-calibrated springs designed specifically to lift the exact finished weight of the clad door.

3. Heavy-Duty Bearing Plates: Reinforcing the mounting points where the torsion tube connects to the wall to handle the extreme rotational torque.

4. Reinforced Hinges and Rollers: Utilizing solid steel, long-stem rollers and heavy-duty hinges to keep the heavy panels tracking perfectly straight.

The importance of compliance: Adhering to DASMA (Door & Access Systems Manufacturers Association) weight and track guidelines is non-negotiable. These guidelines dictate the exact track thickness, spring wire gauge, and structural reinforcement required to prevent premature hardware failure. Ignoring these mechanical realities in favor of aesthetics will result in a door that is dangerous to operate and prone to constant breakdowns.

Redetailing Stucco Joints for Moving Structural Elements

One of the most complex aspects of this adaptation is the exact structural reality required to retrofit existing stucco openings without compromising the weather envelope. Stucco is designed to be a continuous, static barrier against the elements. When you introduce a heavy, moving structural element—like a flush-mount door—directly into the same plane as the stucco, you create a highly vulnerable joint.

Designing specific expansion joint detailing where stucco meets moving structural elements is the only way to ensure long-term durability. In a standard installation, the door sits behind the stucco, and weatherstripping bridges the gap. In a flush installation, the edge of the door panel passes within millimeters of the stucco edge every time it opens or closes. The stucco edge must be perfectly straight, heavily reinforced, and protected from the vibration of the door.

Protecting the Weather Envelope

Preventing stress fractures and moisture intrusion requires precise joint management. The edge of the stucco cannot simply be cut off and left raw. It must be finished with specialized casing beads or J-channels that provide a clean, rigid edge. These metal or vinyl profiles are embedded into the stucco during the redetailing process, creating a sharp corner that resists chipping.

Furthermore, the framing behind the stucco must be decoupled slightly from the track mounting points. If the track is bolted directly to the exact same piece of lumber that holds the stucco edge, the vibration of the 600-pound door rolling up the track will transfer directly into the plaster, causing it to shatter over time. Proper redetailing involves isolating the mechanical vibration from the rigid exterior finish while maintaining a flawless visual line. In our experience working on Las Vegas stucco-finished homes, this specialized detailing is what separates a successful architectural upgrade from a continuous maintenance nightmare.

Navigating Local Structural Guidelines and Wind Loads

Executing a seamless exterior modification requires deep knowledge of regional building codes. Clark County Building Code requirements for exterior modifications and wind load resistance dictate exactly how these heavy doors must be secured. Las Vegas experiences significant wind events, and garage doors represent the largest opening in a home's exterior envelope. If a door fails during a high-wind event, the resulting pressure change can cause catastrophic structural damage to the roof and walls.

The visual appeal of a flush door must be backed by deep structural expertise to ensure safety and compliance. Flush-mount architectural garage doors present unique wind-load challenges. Because they sit flush with the wall, wind catches the edges differently than a recessed door. Additionally, the added weight of the cladding changes the dynamic load on the entire structural frame when the wind pushes against it.

The Value of Regional Expertise

Partnering with a dedicated local Las Vegas team ensures that your modernization project goes beyond surface-level aesthetics. We bring deep local expertise in handling the specific structural framing and wind-load requirements for modernizing Las Vegas homes. We understand that a flush-mount adaptation cannot be treated as a standard door replacement.

Key compliance factors include:

• Wind Load Ratings: Ensuring the custom-clad door meets or exceeds the required positive and negative wind pressure ratings for the specific neighborhood.

• Structural Fastening: Using code-approved structural screws and heavy-duty brackets to secure the tracks to the reinforced framing.

• Permitting and Inspections: Navigating the necessary local permits required for significantly altering the structural framing of the exterior envelope.

The risks of treating a flush-mount adaptation as a standard door replacement are severe. Without proper structural reinforcement and adherence to local wind codes, the heavy door system is a liability. It requires precise engineering to ensure that the beautiful, seamless facade remains safe, secure, and fully compliant with all regional regulations.

Common Questions About Flush-Mount Stucco Adaptations

Can you install a flush mount garage door on an existing home?

Yes, you can install a flush-mount system on an existing home, but it requires extensive structural modifications. The existing rough opening must be completely rebuilt to achieve the ultra-tight tolerances required for a seamless look. This process involves removing the exterior trim, adjusting the framing to be perfectly plumb and square, and redetailing the surrounding stucco. It is a major architectural adaptation rather than a simple remove-and-replace project.

What structural modifications are needed for flush mount garage doors?

The structural modifications primarily involve reinforcing the framing and perfecting the opening dimensions. The header and jambs must be rebuilt to support commercial-grade tracks and the extreme weight of a clad door. Additionally, the framing must be perfectly squared to within an eighth of an inch, as there is no overlapping trim to hide imperfections. Solid wood backing must also be added to securely anchor the heavy-duty torsion springs and bearing plates.

What is the framing rough opening for a flush mount garage door?

The framing rough opening for a flush-mount door is highly specific and depends entirely on the manufacturer's exact specifications and the thickness of the chosen cladding. Unlike standard doors that use a generic rough opening size, flush systems require the framing to match the exact dimensions of the finished door panels plus a microscopic clearance gap. The opening must be mathematically perfect, requiring precise measurements calculated down to the fraction of an inch before any framing begins.

How do flush mount garage doors work with stucco exteriors?

Flush-mount doors work with stucco exteriors by sitting on the exact same plane as the finished wall, creating a continuous, unbroken visual line. To achieve this, the stucco must be carefully redetailed around the opening using specialized casing beads or J-channels to create a sharp, durable edge. Expansion joints must also be integrated to prevent the mechanical vibration of the moving door from fracturing the rigid stucco over time.

How does the added weight of exterior cladding affect garage door tracks?

The added weight of exterior cladding drastically increases the mechanical strain on the entire track system. Standard residential tracks will bend and buckle under the load of a heavy architectural door. To handle this weight, the system must be upgraded to commercial-gauge steel tracks, heavy-duty rollers, and high-cycle torsion springs specifically calibrated for the exact finished weight of the door. Adhering to strict weight guidelines is critical to prevent hardware failure.

Are special expansion joints required when adding flush-mount doors to a stucco facade?

Yes, special expansion joints and edge detailing are absolutely required when integrating these doors into a stucco facade. Because the heavy door passes within millimeters of the stucco edge, the rigid exterior must be protected from both thermal expansion and structural vibration. Specialized metal or vinyl profiles are embedded into the stucco edge to provide a clean finish, while strategic gaps allow the building materials to expand in the desert heat without causing stress fractures.

Advancing Your Exterior Modernization Project Safely

Adapting your home for a flush-mount system requires a delicate balance between achieving stunning architectural aesthetics and managing strict mechanical framing realities. From managing the thermal expansion of Las Vegas stucco-finished homes to upgrading the track systems for heavy cladding, every detail must be precisely engineered. The transition transforms your home's curb appeal, but it relies entirely on the hidden structural work performed behind the walls.

We highly encourage readers to seek a professional structural evaluation before beginning their modernization project. Precise stucco detailing and perfectly squared framing are non-negotiable for long-term durability. For expert guidance on your adaptation, trust our Las Vegas garage door experts to provide a clear, professional overview of the framing tolerances, track clearance requirements, and stucco detailing needed to successfully execute your seamless installation.
